Here you will find all available parts and drawings of the 'Metabo 00696000 (UHE2450MULTI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

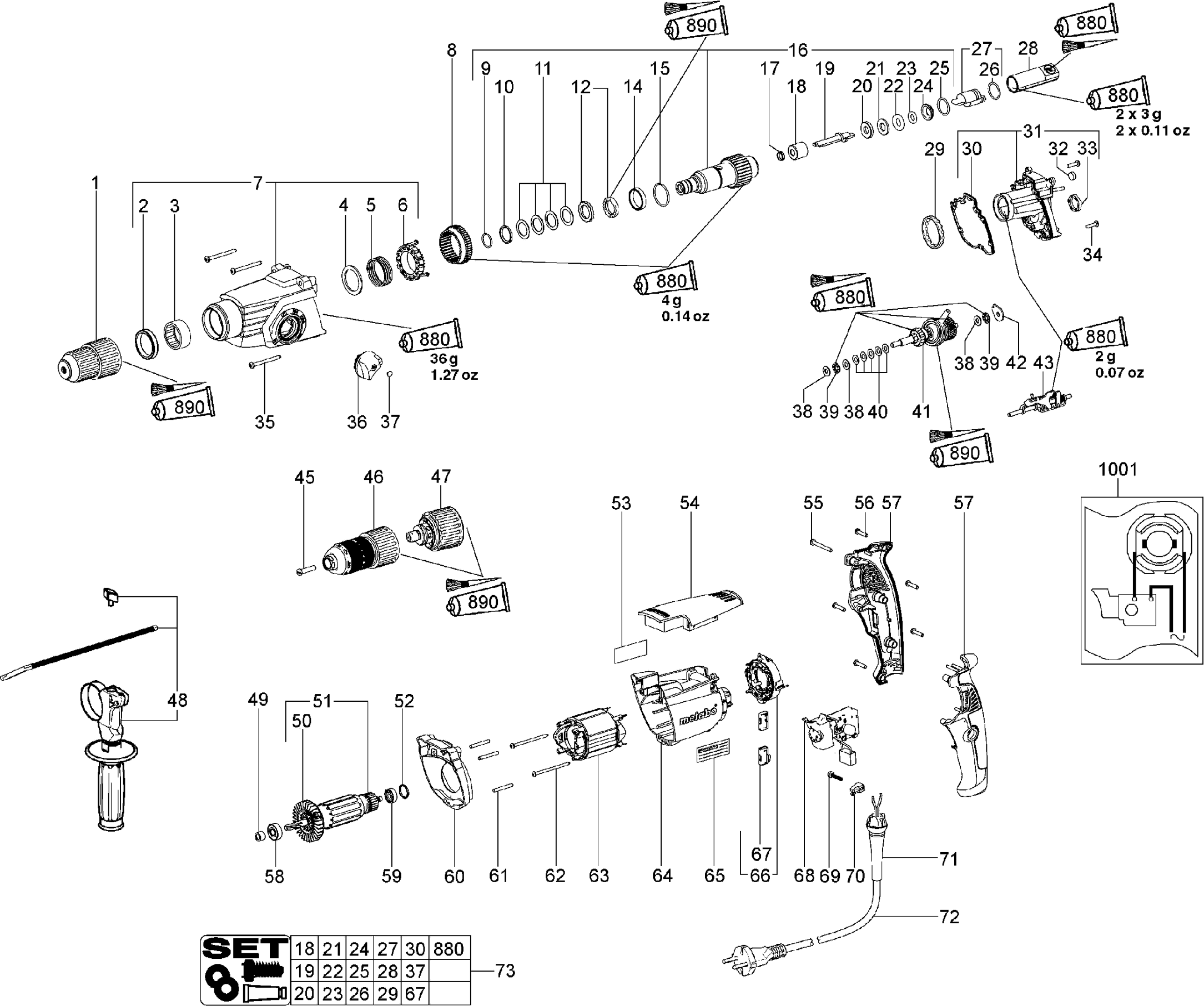

Technical drawing of model Metabo 00696000 (UHE2450MULTI)
Spare parts list of model Metabo 00696000 (UHE2450MULTI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Wisselboorhouder SDS-Plus | ||||
| 1 | 316051000 | 60.59 | 73.31 | |
| Gegolfde dichtring | ||||
| 2 | 143195160 | 8.89 | 10.76 | |
| Needle sleeve, 30x37x16 | ||||
| 3 | 143115090 | 7.22 | 8.74 | |
| Washer | ||||
| 4 | 339007150 | 1.68 | 2.03 | |
| Pressure spring, 34.7x38.3x1.8x27.7 | ||||
| 5 | 342003490 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 6 | 343397820 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 7 | 316047830 | 74.13 | 89.70 | |
| Sliding block | ||||
| 8 | 340004030 | 8.89 | 10.76 | |
| Circlip | ||||
| 9 | 141156380 | 1.56 | 1.89 | |
| Support ring | ||||
| 10 | 341013060 | 4.51 | 5.46 | |
| Schotelveer | ||||
| 11 | 342070620 | 1.56 | 1.89 | |
| Cam disk set | ||||
| 12 | 316064060 | 5.87 | 7.10 | |
| Support ring | ||||
| 14 | 343431000 | 1.56 | 1.89 | |
| Circlip | ||||
| 15 | 141156360 | 1.56 | 1.89 | |
| Boorhuls compl. | ||||
| 16 | 316050710 | 121.19 | 146.64 | |
| Gegolfde dichtring | ||||
| 17 | 143195200 | 2.28 | 2.76 | |
| Bushing | ||||
| 18 | 341006030 | 5.87 | 7.10 | |
| Piston | ||||
| 19 | 341210120 | 10.38 | 12.56 | |
| Support ring | ||||
| 20 | 341013180 | 3.02 | 3.65 | |
| O-ring | ||||
| 21 | 143195150 | 1.68 | 2.03 | |
| Washer | ||||
| 22 | 339007190 | 1.56 | 1.89 | |
| O-ring | ||||
| 23 | 143195210 | 1.56 | 1.89 | |
| Vangerhuls | ||||
| 24 | 341058950 | 3.71 | 4.49 | |
| Borgveer-ring | ||||
| 25 | 141181840 | 1.56 | 1.89 | |
| Profile-plunger-ring | ||||
| 26 | 344093140 | 4.51 | 5.46 | |
| Plunjer compl. | ||||
| 27 | 316043350 | 21.64 | 26.18 | |
| Bekrachtigingsbus compl. | ||||
| 28 | 341058680 | 21.64 | 26.18 | |
| Kogelhouder | ||||
| 29 | 320050480 | 3.02 | 3.65 | |
| Vormpakking | ||||
| 30 | 344098640 | 1.56 | 1.89 | |
| Tandwielflens compl. | ||||
| 31 | 316047860 | 43.15 | 52.21 | |
| Sealing felt | ||||
| 32 | 344070670 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 33 | 344095920 | 1.56 | 1.89 | |
| Filister head screw | ||||
| 34 | 141123400 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 35 | 141123610 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 36 | 316044470 | |||
| Seal | ||||
| 37 | 343376750 | 1.68 | 2.03 | |
| Washer | ||||
| 38 | 339129610 | 1.56 | 1.89 | |
| Axiaal-naaldlager | ||||
| 39 | 143114280 | 5.87 | 7.10 | |
| Cup spring | ||||
| 40 | 141152550 | 1.68 | 2.03 | |
| Tandwielas compl. | ||||
| 41 | 316047870 | 94.12 | 113.89 | |
| Aanloopplaat | ||||
| 42 | 339134350 | 1.56 | 1.89 | |
| Schakel-element compl. | ||||
| 43 | 316044460 | 16.25 | 19.66 | |
| Cilinderkopschroef | ||||
| 45 | 341703360 | 5.18 | 6.27 | |
| Quick Release Drill Chuck with Adapter | ||||
| 46 | 316050870 | 94.12 | 113.89 | |
| Wisseladapter | ||||
| 47 | 316050880 | 37.65 | 45.56 | |
| Handgreep extra compl. | ||||
| 48 | 316052270 | 26.95 | 32.61 | |
| Afdichtring | ||||
| 49 | 343376040 | 1.68 | 2.03 | |
| Fan | ||||
| 50 | 330001830 | 10.38 | 12.56 | |
| Anker compl.,230 V | ||||
| 51 | 310010280 | 67.33 | 81.47 | |
| O-ring | ||||
| 52 | 143192430 | 1.68 | 2.03 | |
| Typeplaatje | ||||
| 53 | 338063590 | 1.56 | 1.89 | |
| Deksel zonder elektronica | ||||
| 54 | 343394070 | 3.02 | 3.65 | |
| Self-tap. fill. h. screw | ||||
| 55 | 141116990 | 1.68 | 2.03 | |
| Self-tap fill h screw | ||||
| 56 | 141116020 | 1.68 | 2.03 | |
| 2-piece Pistol Grip, with Rubber | ||||
| 57 | 343398530 | 10.38 | 12.56 | |
| Ball bearing 8x22x 7 | ||||
| 58 | 143114880 | 3.02 | 3.65 | |
| Groefkogellager,6x19x6 | ||||
| 59 | 143115690 | 2.28 | 2.76 | |
| Tussenflens | ||||
| 60 | 343399780 | 2.28 | 2.76 | |
| Cilinderstift | ||||
| 61 | 341520230 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 62 | 141118260 | 1.56 | 1.89 | |
| Field package m.winding,230 V | ||||
| 63 | 311010790 | 32.27 | 39.05 | |
| Motor housing | ||||
| 64 | 315013250 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 65 | 399999990 | |||
| Carbon brush holder module, 230V - V-EI. 85 | ||||
| 66 | 316051990 | 12.23 | 14.80 | |
| Koolborstelset,230 V | ||||
| 67 | 316046970 | 12.23 | 14.80 | |
| Electronic Switch with Dial | ||||
| 68 | 343409220 | 18.80 | 22.75 | |
| Self-tap. fill. h. screw | ||||
| 69 | 141117060 | 1.68 | 2.03 | |
| Cable clip | ||||
| 70 | 343362490 | 1.68 | 2.03 | |
| Kabeldoorvoer | ||||
| 71 | 343394300 | 1.68 | 2.03 | |
| Cable with CEE plug | ||||
| 72 | 344486730 | 18.80 | 22.75 | |
| Onderhoudset | ||||
| 73 | 316050740 | 107.70 | 130.32 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 18.80 | 22.75 | |
| Tube of grease, 50g Klueber Microlube GL 261 | ||||
| 890 | 344131210 | 24.23 | 29.32 | |
