Here you will find all available parts and drawings of the 'Metabo 00854000 ( UHE2250MULTI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

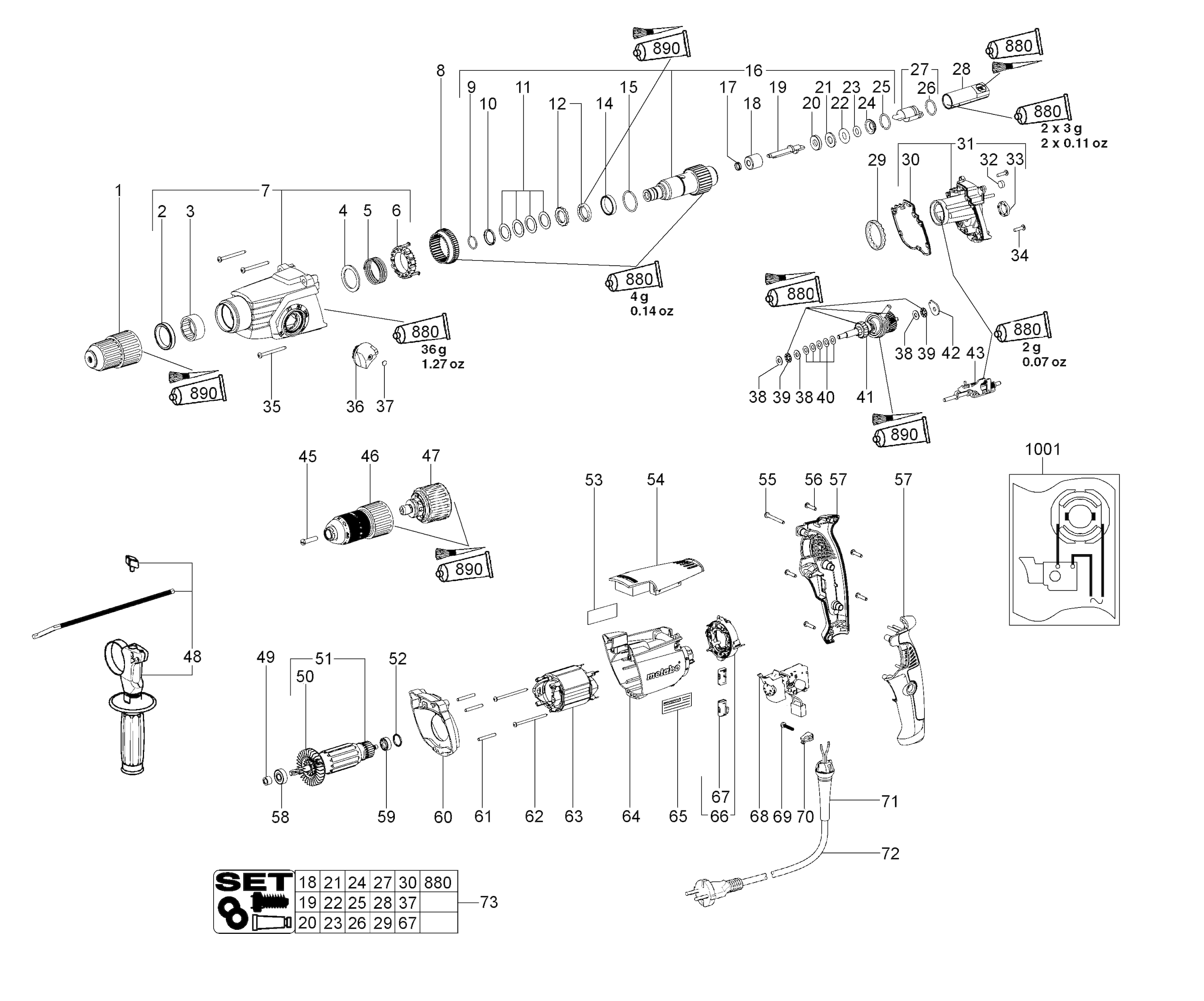

Technical drawing of model Metabo 00854000 ( UHE2250MULTI )

Spare parts list of model Metabo 00854000 ( UHE2250MULTI )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Wisselboorhouder SDS-Plus
1 316051000 60.59 73.31
Gegolfde dichtring
2 143195160 8.89 10.76
Needle sleeve, 30x37x16
3 143115090 7.22 8.74
Washer
4 339007150 1.67 2.02
Pressure spring, 34.7x38.3x1.8x27.7
5 342003490 1.55 1.88
Retaining ring
6 343397820 1.55 1.88
Tandwielhuis compl.
7 316047830 74.13 89.70
Sliding block
8 340004030 8.89 10.76
Circlip
9 141156380 1.55 1.88
Support ring
10 341013060 4.51 5.46
Schotelveer
11 342070620 1.55 1.88
Cam disk set
12 316064060 5.87 7.10
Support ring
14 343431000 1.55 1.88
Circlip
15 141156360 1.55 1.88
No information available, not orderable
16 316047850
Gegolfde dichtring
17 143195200 2.28 2.76
Bushing
18 341005810 12.23 14.80
Piston
19 341059030 11.74 14.21
Support ring
20 341012980 3.71 4.49
O-ring
21 143195150 1.67 2.02
Washer
22 339007190 1.55 1.88
O-ring
23 143195210 1.55 1.88
Vangerhuls
24 341058950 3.71 4.49
Borgveer-ring
25 141181840 1.55 1.88
Profile-plunger-ring
26 344093140 4.51 5.46
Plunjer compl.
27 316043350 21.64 26.18
Bekrachtigingsbus compl.
28 341058680 21.64 26.18
Kogelhouder
29 320050480 3.02 3.65
Vormpakking
30 344098640 1.55 1.88
Tandwielflens compl.
31 316047860 43.15 52.21
Sealing felt
32 344070670 1.55 1.88
Rubber buffer
33 344095920 1.55 1.88
Filister head screw
34 141123400 1.55 1.88
Self-tap. fill. h. screw
35 141123610 1.55 1.88
No longer available, no replacement
36 316044470
Seal
37 343376750 1.67 2.02
Washer
38 339129610 1.55 1.88
Axiaal-naaldlager
39 143114280 5.87 7.10
Cup spring
40 141152550 1.67 2.02
Tandwielas compl.
41 316047870 94.12 113.89
Aanloopplaat
42 339134350 1.55 1.88
Schakel-element compl.
43 316044460 16.25 19.66
Cilinderkopschroef
45 341703360 5.18 6.27
Quick Release Drill Chuck with Adapter
46 316050870 94.12 113.89
Wisseladapter
47 316050880 37.65 45.56
Handgreep extra compl.
48 316052270 26.95 32.61
Afdichtring
49 343376040 1.67 2.02
Fan
50 330001830 10.38 12.56
Anker compl.,230 V
51 310009220 67.33 81.47
O-ring
52 143192430 1.67 2.02
No information available, not orderable
53 338054910
Deksel zonder elektronica
54 343394070 3.02 3.65
Self-tap. fill. h. screw
55 141116990 1.67 2.02
Self-tap fill h screw
56 141116020 1.67 2.02
2-piece Pistol Grip, with Rubber
57 343398530 10.38 12.56
Ball bearing 8x22x 7
58 143114880 3.02 3.65
Groefkogellager,6x19x6
59 143115690 2.28 2.76
Tussenflens
60 343399780 2.28 2.76
Cilinderstift
61 341520230 1.55 1.88
Self-tap. fill. h. screw
62 141118260 1.55 1.88
Field
63 311009800 18.80 22.75
Motor housing
64 315013250 12.23 14.80
No information available, not orderable
65 399999990
Carbon brush holder module, 230V - V-EI. 85
66 316051990 12.23 14.80
Koolborstelset,230 V
67 316046950 12.23 14.80
Electronic Switch with Dial
68 343409220 18.80 22.75
Self-tap. fill. h. screw
69 141117060 1.67 2.02
Cable clip
70 343362490 1.67 2.02
Kabeldoorvoer
71 343394300 1.67 2.02
Cable with CEE plug
72 344486730 18.80 22.75
No information available, not orderable
73 316047890
Tube of grease 50 gr. SF 126
880 344130800 18.80 22.75
Tube of grease, 50g Klueber Microlube GL 261
890 344131210 24.23 29.32
