Here you will find all available parts and drawings of the 'Metabo 0251400000-10 (TPS14000SCOMBI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

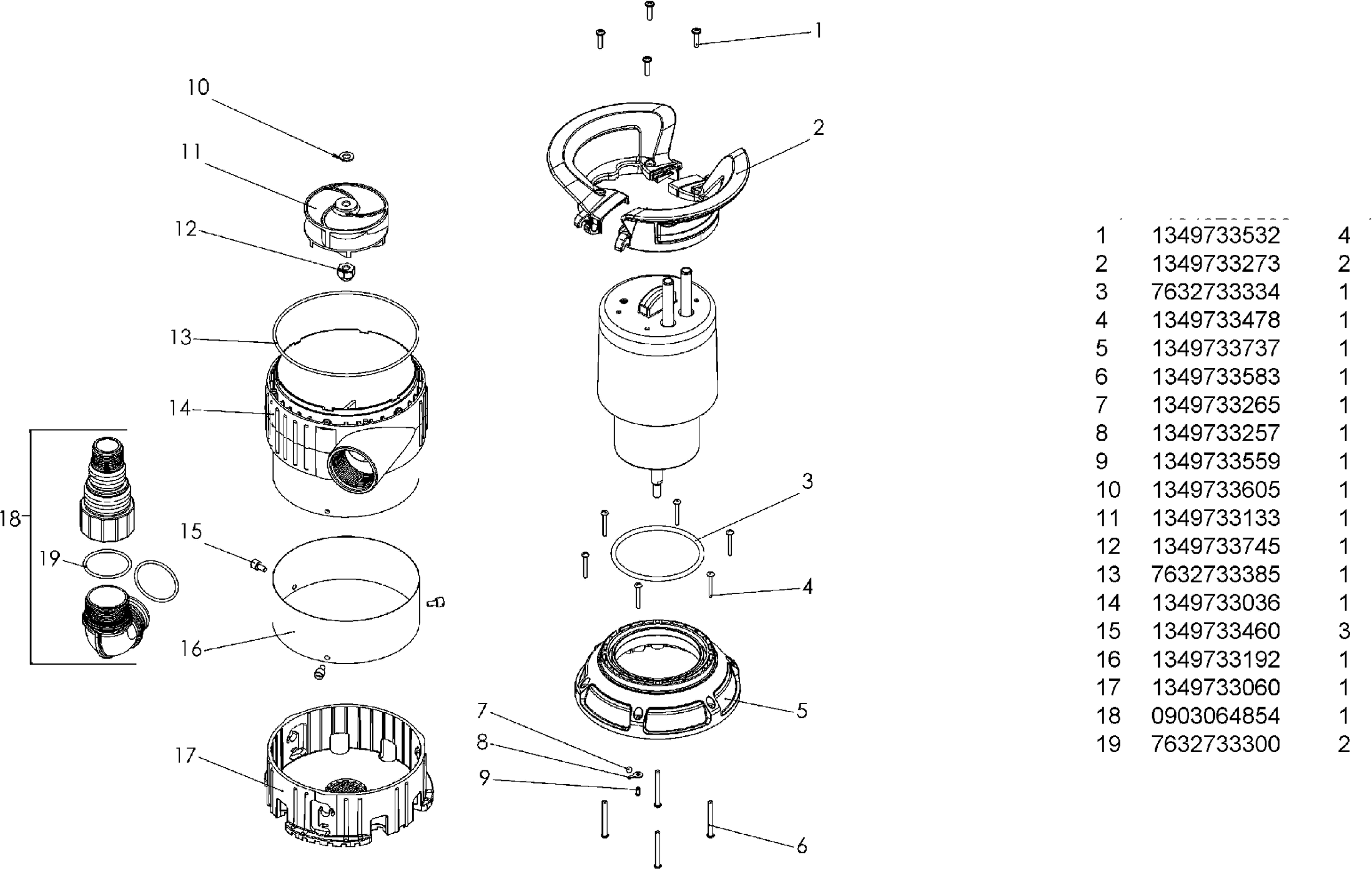

Technical drawing of model Metabo 0251400000-10 (TPS14000SCOMBI)
Spare parts list of model Metabo 0251400000-10 (TPS14000SCOMBI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw PT-KB 5x20 VA TP/TPF/TPS/PS | ||||
| 1 | 1349733532 | 7.22 | 8.74 | |
| Handle TP/TPF/TPS/PS | ||||
| 2 | 1349733273 | 16.25 | 19.66 | |
| O-Ring 90x4,5 TP/TPF/TPS/PS | ||||
| 3 | 7632733334 | 7.22 | 8.74 | |
| Screw PT 30x3.5 TPS 14000/16000 S Comb | ||||
| 4 | 1349733478 | 3.02 | 3.65 | |
| Intermediate ring TPS 14000/16000 S Combi | ||||
| 5 | 1349733737 | 24.23 | 29.32 | |
| Screw PT-KB 5x45 VA TP/TPF/TPS/PS | ||||
| 6 | 1349733583 | 4.51 | 5.46 | |
| Ball TPF 6600 SN PS 18000 SN | ||||
| 7 | 1349733230 | 1.56 | 1.89 | |
| Ventilation Plate TP/TPF/TPS/PS | ||||
| 8 | 1349733257 | 4.51 | 5.46 | |
| Screw PT-KB 3x8 VA TP/TPF/TPS/PS | ||||
| 9 | 1349733559 | 1.56 | 1.89 | |
| Washer,6.3x15.5x1.5 A2-70 | ||||
| 10 | 1349733605 | 11.74 | 14.21 | |
| Startup wheel Pump TPS 14000 S Combi | ||||
| 11 | 1349733133 | 21.64 | 26.18 | |
| Hexagonal nut | ||||
| 12 | 1349733745 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 13 | 7632733385 | |||
| PUMPHOUSE TPS 14000/16000 S Combi | ||||
| 14 | 1349733036 | 53.86 | 65.17 | |
| Screw bolt M5 | ||||
| 15 | 1349733460 | 7.22 | 8.74 | |
| Stelring TPS 14000/16000 S Combi | ||||
| 16 | 1349733192 | 32.27 | 39.05 | |
| Pump foot TPS 14000 S Combi | ||||
| 17 | 1349733060 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 18 | 0903064854 | |||
| O-Ring 45x3 | ||||
| 19 | 7632733300 | 3.02 | 3.65 | |
