Here you will find all available parts and drawings of the 'Metabo 0250800002-10 ( TPF7000S )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

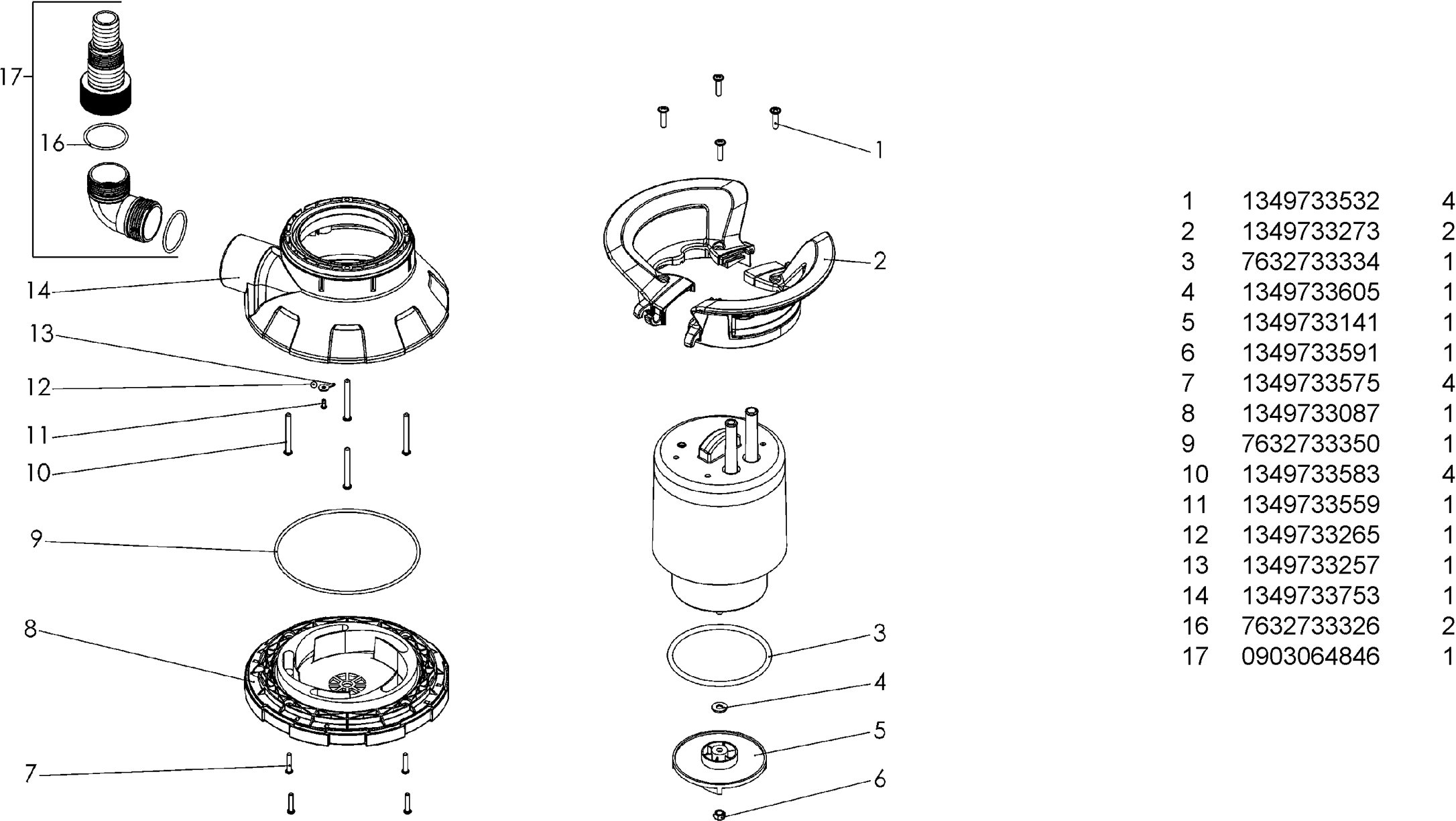

Technical drawing of model Metabo 0250800002-10 ( TPF7000S )
Spare parts list of model Metabo 0250800002-10 ( TPF7000S )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw PT-KB 5x20 VA TP/TPF/TPS/PS | ||||
| 1 | 1349733532 | 7.22 | 8.74 | |
| Handle TP/TPF/TPS/PS | ||||
| 2 | 1349733273 | 16.25 | 19.66 | |
| O-Ring 90x4,5 TP/TPF/TPS/PS | ||||
| 3 | 7632733334 | 7.22 | 8.74 | |
| Washer,6.3x15.5x1.5 A2-70 | ||||
| 4 | 1349733605 | 11.74 | 14.21 | |
| Startup wheel Pump TP/TPF/PS | ||||
| 5 | 1349733141 | 16.25 | 19.66 | |
| Hexagonal nut M6 A2-70 | ||||
| 6 | 1349733591 | 4.51 | 5.46 | |
| Screw PT-KB 4x20 VA TPF 6600 SN/TPF 70 | ||||
| 7 | 1349733575 | 4.51 | 5.46 | |
| Pump Foot TPF 6600 SN / TPF 7000 S | ||||
| 8 | 1349733087 | 26.95 | 32.61 | |
| O-Ring TPF 6600 SN TPF 7000 | ||||
| 9 | 7632733350 | 4.51 | 5.46 | |
| Screw PT-KB 5x45 VA TP/TPF/TPS/PS | ||||
| 10 | 1349733583 | 4.51 | 5.46 | |
| Screw PT-KB 3x8 VA TP/TPF/TPS/PS | ||||
| 11 | 1349733559 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 12 | 1349733265 | |||
| Ventilation Plate TP/TPF/TPS/PS | ||||
| 13 | 1349733257 | 4.51 | 5.46 | |
| Spacer ring TPF 7500 S | ||||
| 14 | 1349733753 | 43.15 | 52.21 | |
| O-Ring 38x2,5 TP/TPF/PS | ||||
| 16 | 7632733326 | 5.18 | 6.27 | |
| No information available, not orderable | ||||
| 17 | 0903064846 | |||
