Here you will find all available parts and drawings of the 'Metabo 0030600010-10 (TPF6000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

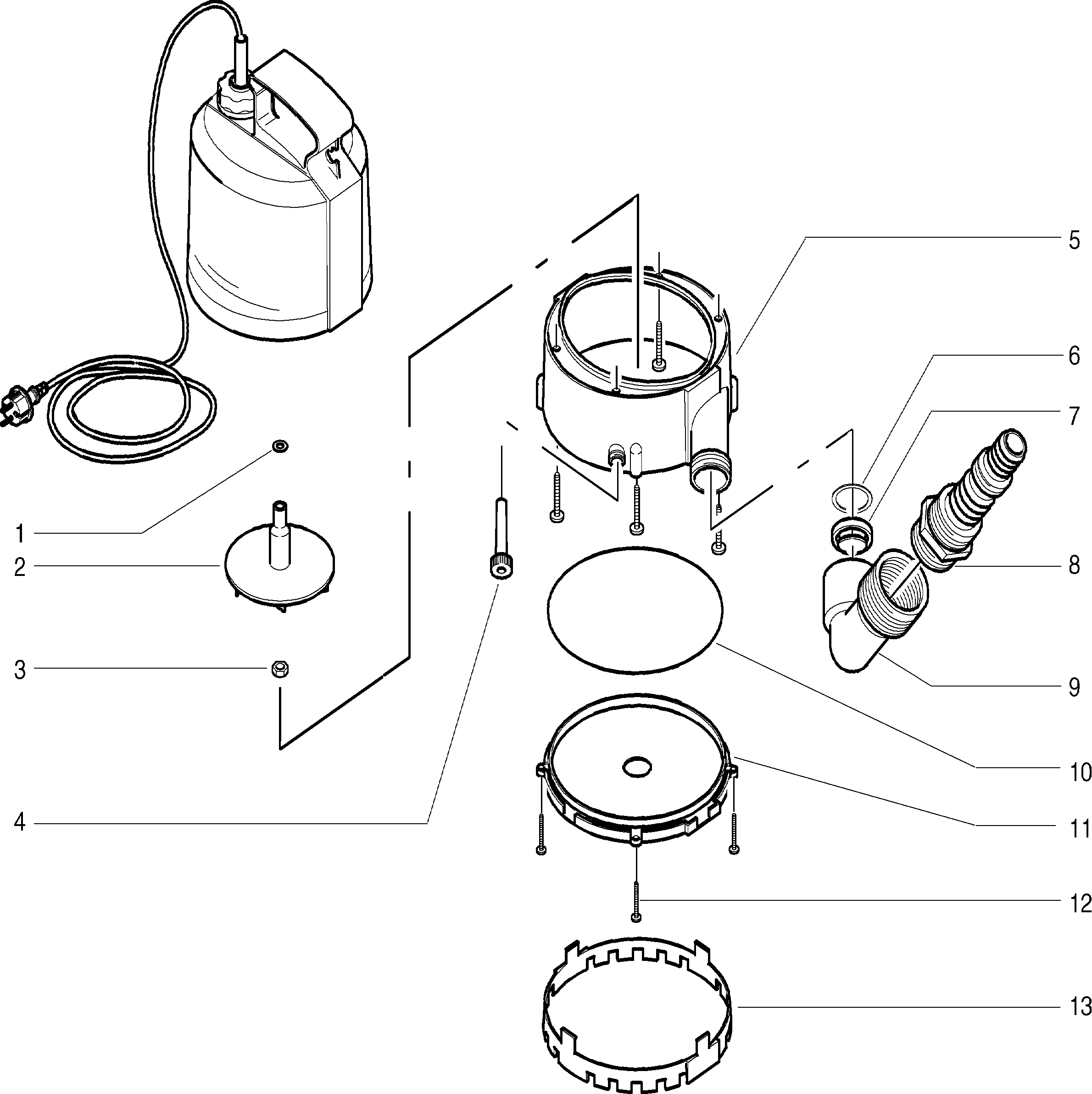

Technical drawing of model Metabo 0030600010-10 (TPF6000)
Spare parts list of model Metabo 0030600010-10 (TPF6000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 6300036854 | |||
| No longer available, no replacement | ||||
| 2 | 1341422406 | |||
| No information available, not orderable | ||||
| 3 | 6200199675 | |||
| No information available, not orderable | ||||
| 4 | 1341421442 | |||
| No information available, not orderable | ||||
| 5 | 1341422414 | |||
| No information available, not orderable | ||||
| 6 | 6306610188 | |||
| No information available, not orderable | ||||
| 7 | 7831609421 | |||
| No information available, not orderable | ||||
| 8 | 1341612728 | |||
| DRUKSTEUN 1"IGX1"IG/1 1/4"AG | ||||
| 9 | 1341605250 | 10.38 | 12.56 | |
| O-RING 142.1X1.78 70 SHORE | ||||
| 10 | 7632619159 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 11 | 1341421469 | |||
| No information available, not orderable | ||||
| 12 | 6172039616 | |||
| No information available, not orderable | ||||
| 13 | 1341421477 | |||
