Here you will find all available parts and drawings of the 'Metabo 0250750013-10 (TP7500SI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

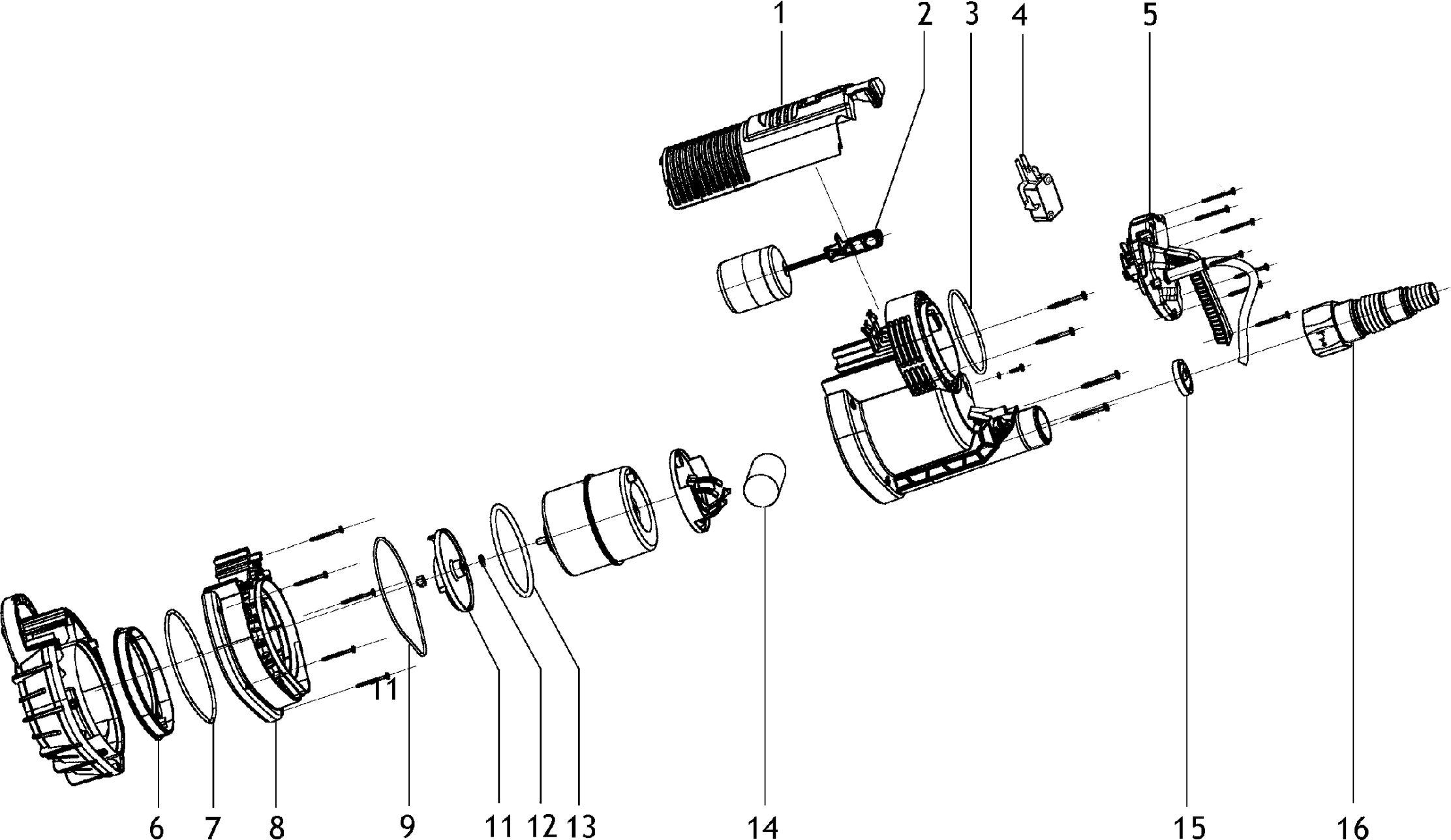

Technical drawing of model Metabo 0250750013-10 (TP7500SI)
Spare parts list of model Metabo 0250750013-10 (TP7500SI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| DEKSEL V. HUIS TP 7500 SI ET | ||||
| 1 | 1341697782 | 16.25 | 19.66 | |
| Complete float TP 7500 SI ET | ||||
| 2 | 1341697804 | 26.95 | 32.61 | |
| Lock washer TP 7500/12000 SI ET | ||||
| 6 | 1341697936 | 5.18 | 6.27 | |
| O-RING 101.27 X 2.62 ET | ||||
| 7 | 7632697923 | 2.28 | 2.76 | |
| WHEEL TP 7500 SI ET | ||||
| 11 | 1349697862 | 4.51 | 5.46 | |
| LOCKING WASHER 6.4X12.4X0.5 ET | ||||
| 12 | 1349182269 | 1.56 | 1.89 | |
| NON-RETURN VALVE TP 7500/12000SI | ||||
| 15 | 7831718964 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 16 | 0903061677 | |||
