Here you will find all available parts and drawings of the 'Metabo 0103152000-11 ( TKHS315C2,00WNB )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

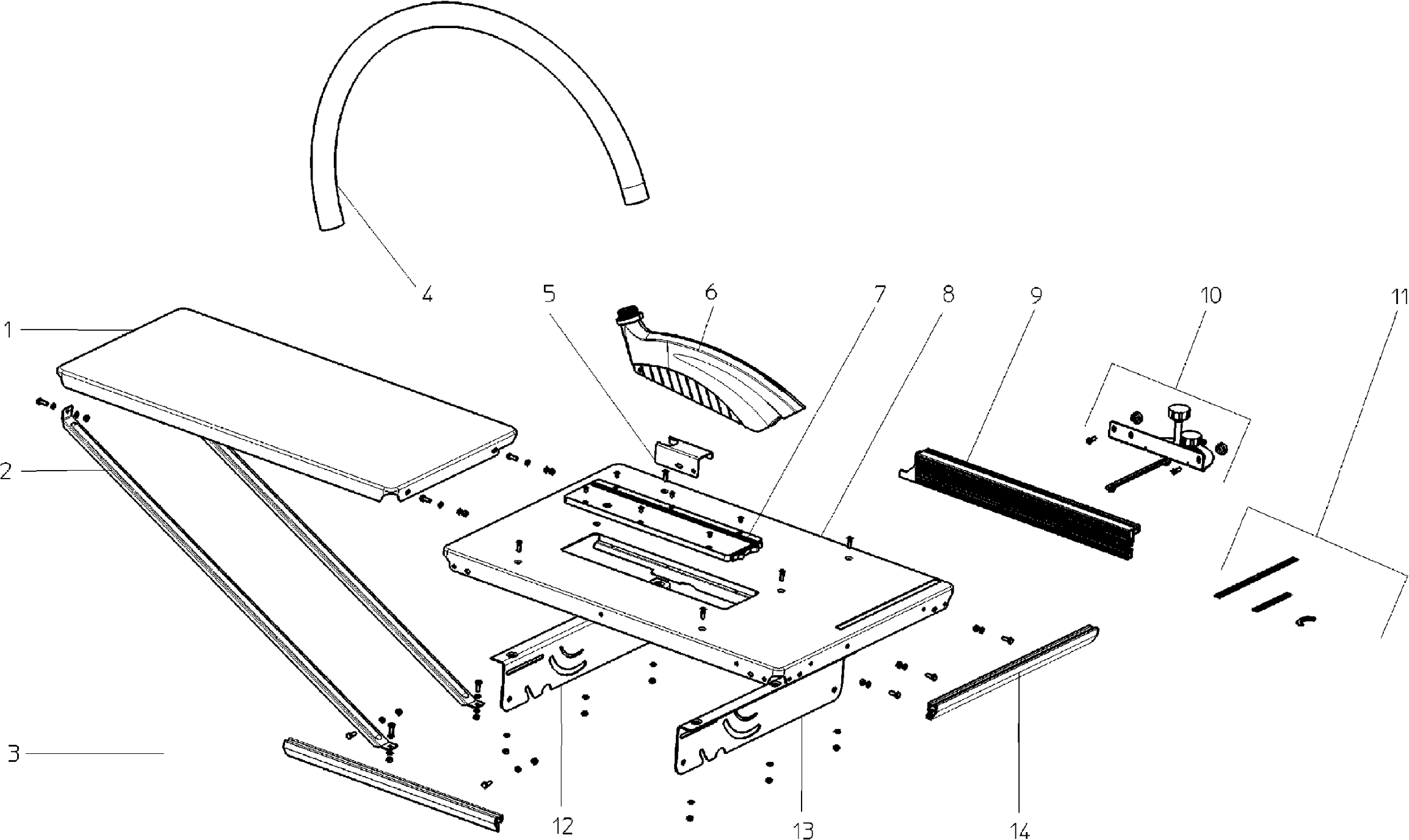

Technical drawing of model Metabo 0103152000-11 ( TKHS315C2,00WNB )
Spare parts list of model Metabo 0103152000-11 ( TKHS315C2,00WNB )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1382689085 | |||
| SUPPORT ET | ||||
| 2 | 1382689093 | 13.48 | 16.31 | |
| GUIDE PROFILE LEFT /ET | ||||
| 3 | 1383689100 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 4 | 7854145449 | |||
| HOSE CARRIER ET | ||||
| 5 | 1382689123 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 6 | 1010689119 | |||
| TABLE INSERT ET | ||||
| 7 | 1381689138 | 7.22 | 8.74 | |
| TABLE TOP ET | ||||
| 8 | 1382689140 | 94.12 | 113.89 | |
| GUIDE PROFILE ET | ||||
| 9 | 1383689151 | 18.80 | 22.75 | |
| RIGHT ANGLE GUIDE ET | ||||
| 10 | 1010689160 | 21.64 | 26.18 | |
| DIMENSION INDICATION SET 3-PC /ET | ||||
| 11 | 1010689178 | 1.67 | 2.02 | |
| REAR MOUNTING HOOK ET | ||||
| 12 | 1382689182 | 11.74 | 14.21 | |
| Mounting hook for ET | ||||
| 13 | 1382689190 | 11.74 | 14.21 | |
| GUIDE PROFILE FRONT /ET | ||||
| 14 | 1383689208 | 8.89 | 10.76 | |
| RIVING KNIFE WITH HOLDER ET | ||||
| 20 | 1010689216 | 21.64 | 26.18 | |
| No longer available, no replacement | ||||
| 21 | 1381689227 | |||
| Chip case cpl. | ||||
| 22 | 316098450 | 268.64 | 325.05 | |
| COMPLETE SAW BLADE FLANGE ET | ||||
| 24 | 1010689240 | 18.80 | 22.75 | |
| FAN BLADE WITH FAN ET | ||||
| 26 | 1010689259 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 27 | 1010687787 | |||
| CLAMP BOX COMPLETE ET | ||||
| 28 | 1010689067 | 7.22 | 8.74 | |
| CAPACITOR 20uF/400V 45X67 CABLE 160 AB | ||||
| 29 | 8050033539 | 16.25 | 19.66 | |
| SSK-SWITCH 230V 50Hz 10A ET | ||||
| 30 | 8131689277 | 80.81 | 97.78 | |
| No longer available, no replacement | ||||
| 31 | 1010689283 | |||
| SLOT BOLT WITH SQUARE INSERT M 8X16 VERZ | ||||
| 32 | 6110000632 | 1.55 | 1.88 | |
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 33 | 7000028937 | 2.28 | 2.76 | |
| THREAD PIECE FL 40X10X20 TKHS315C | ||||
| 34 | 1482726336 | 16.25 | 19.66 | |
| ET leg | ||||
| 40 | 1382689298 | 48.48 | 58.66 | |
| R/L ET strut | ||||
| 41 | 1382689301 | 24.23 | 29.32 | |
| RUNNING GEAR TKHS315C ET | ||||
| 42 | 1010689313 | 24.23 | 29.32 | |
| F/R ET strut | ||||
| 43 | 1382689328 | 18.80 | 22.75 | |
| HANDLE ROD (1 PAIR) TKHS315C/M | ||||
| 44 | 1010689330 | 8.89 | 10.76 | |
| Push stick | ||||
| 45 | 343433180 | 3.71 | 4.49 | |
| SW 19-13 wrench | ||||
| 46 | 1382689395 | 2.28 | 2.76 | |
| SLIDE HANDLE GRIP RED | ||||
| 47 | 1388680470 | 37.65 | 45.56 | |
| KEY | ||||
| 48 | 1492102829 | 8.89 | 10.76 | |
