Here you will find all available parts and drawings of the 'Metabo 00434000 ( TE24-230MVTCED )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

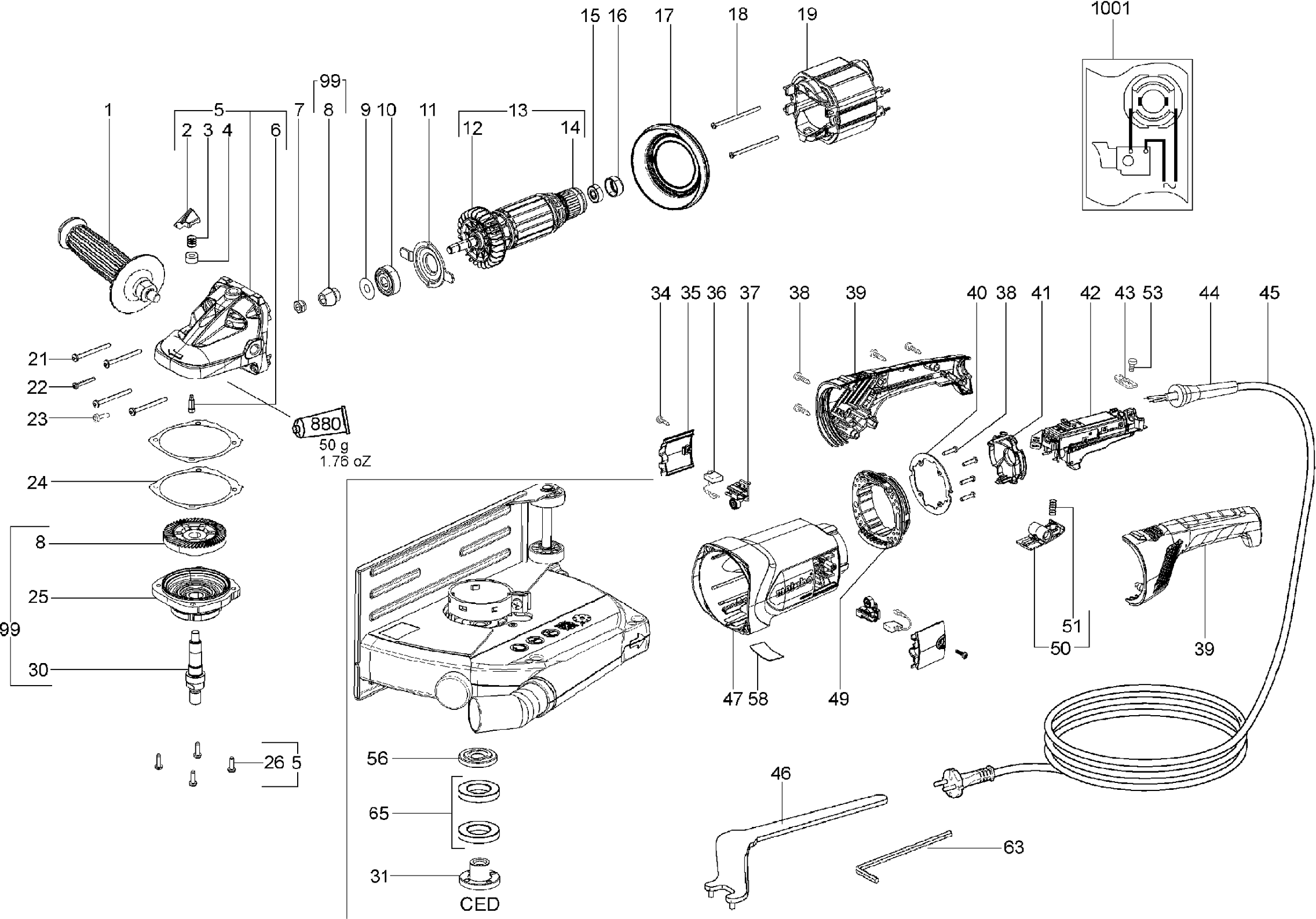

Technical drawing of model Metabo 00434000 ( TE24-230MVTCED )

Spare parts list of model Metabo 00434000 ( TE24-230MVTCED )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Handgreep compl.
1 314000280 16.25 19.66
Drukknop zwart
2 343399790 1.55 1.88
Pressure spring
3 342003390 1.55 1.88
Geleidingsbus
4 341005830 3.71 4.49
Tandwielhuis compl.
5 316045500 67.33 81.47
Bolt
6 341515430 1.55 1.88
Zeskantmoer
7 341100660 3.02 3.65
Tandwiel set
8 316045530 53.86 65.17
Washer
9 141123870 1.55 1.88
Ball bearing 12x37x12
10 143115510 4.51 5.46
Vaste lagerdeksel
11 339007280 3.02 3.65
Waaier m. Stofbeschermkorf
12 316045560 10.38 12.56
Anker compl.,230 V
13 310011330 128.32 155.27
Centrifugeerschijf
14 343390630 1.55 1.88
Kogellager 8x22x 7
15 143115800 2.28 2.76
Rubber bushing
16 344102590 1.67 2.02
Luchtgeleidingsschijf
17 339151130 1.55 1.88
Self-tap. fill. h. screw
18 141121680 1.55 1.88
Field coil
19 311009590 60.59 73.31
Self-tap. fill. h. screw
21 141119370 1.55 1.88
Fillister head screw
22 141122020 1.55 1.88
Fillister head screw
23 141119850 1.55 1.88
Gasket
24 339011810 1.55 1.88
Tandwielflens compl.
25 316045550 48.48 58.66
Fill. head screw(DIN 7985)
26 141121640 1.55 1.88
Spindle shaft
30 341602980 26.95 32.61
Clamping Nut, M14
31 341212880 7.22 8.74
Screw
34 341702050 1.55 1.88
Koolborstelhouderdeksel
35 343395530 1.55 1.88
Koolborstelset,230 V
36 316045570 13.48 16.31
Koolborstelhouder
37 343000950 7.22 8.74
Self-tap fill h screw
38 141116020 1.67 2.02
Handgreep boven/onderdeel
39 343399760 8.89 10.76
Retaining sheet
40 339007320 1.67 2.02
Kantenbescherming
41 343399800 1.55 1.88
Electronic Switch set, Defond 230V
42 316052180 74.13 89.70
Cable clip
43 339127730 1.55 1.88
Kabelbescherming
44 344094550 2.28 2.76
Kabel m. CEE-stekker
45 344487800 16.25 19.66
Bent pin wrench
46 344160700 5.87 7.10
Motorhuis dennen groen
47 315013300 16.25 19.66
Damper
49 343397490 8.89 10.76
Vastzethendel
50 343397700 1.67 2.02
Pressure spring
51 342002170 1.55 1.88
Self-tap. fill. h. screw
53 141116800 1.55 1.88
Clamping flange
56 341031160 11.74 14.21
Type plate HK 85 EB 230V
58 338071050 1.67 2.02
Long Right Angle Screwdriver SW 5
63 344163620 8.89 10.76
Afstandsring
65 341032380 3.02 3.65
Tandwielflens compl.
99 316064090 107.70 130.32
Tube of grease 100 gr.
880 344130910 13.48 16.31
No information available, not orderable
1001 338505670
