Here you will find all available parts and drawings of the 'Metabo 0910061917-10 ( TAFELVERLENGING3000MMR-KGS305 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

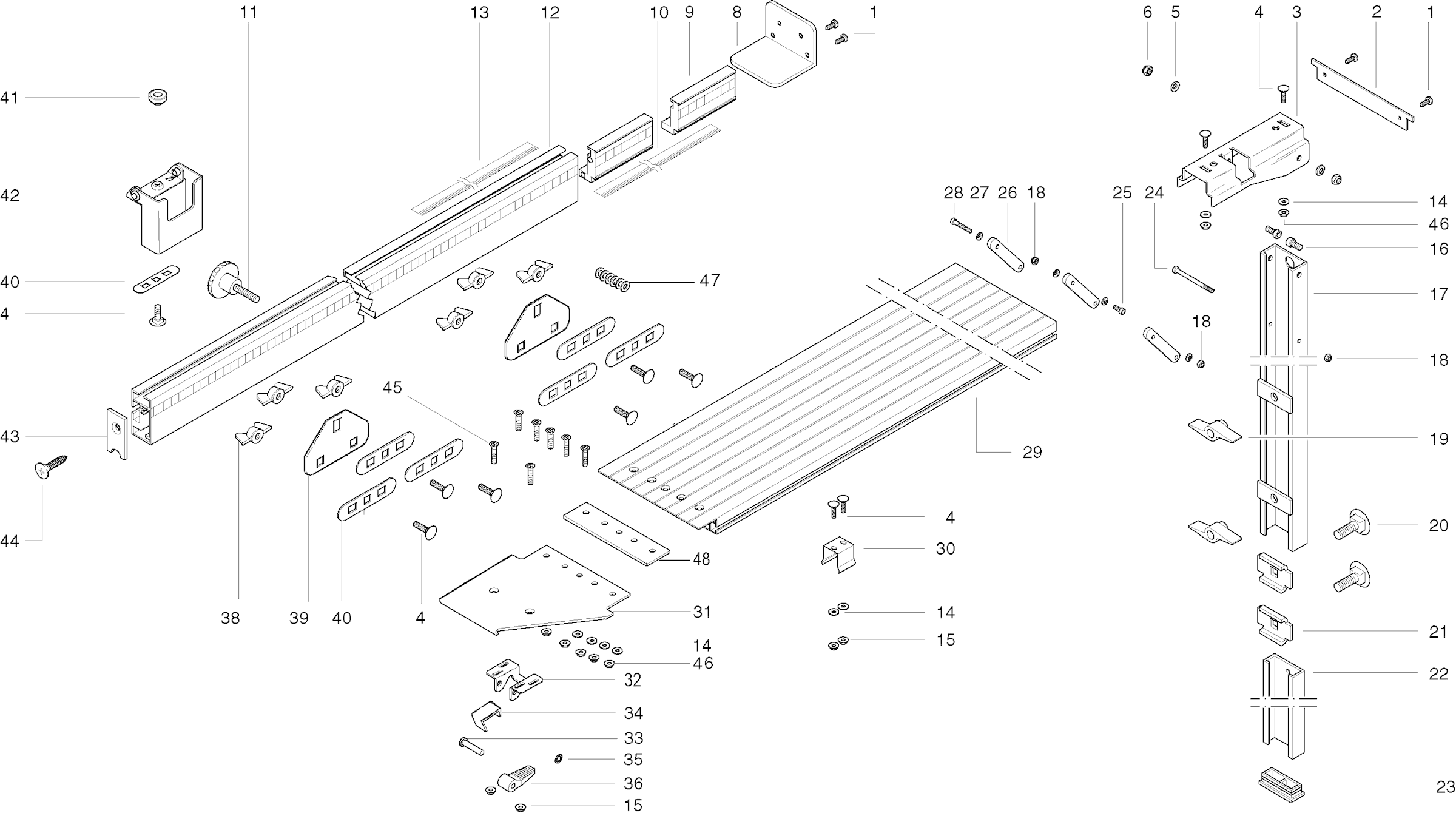

Technical drawing of model Metabo 0910061917-10 ( TAFELVERLENGING3000MMR-KGS305 )
Spare parts list of model Metabo 0910061917-10 ( TAFELVERLENGING3000MMR-KGS305 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Countersunk screw | ||||
| 1 | 6172001830 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 2 | 1482222605 | |||
| No information available, not orderable | ||||
| 3 | 1482222664 | |||
| Slotted bolt with square insert | ||||
| 4 | 6110000594 | 1.55 | 1.88 | |
| Washer | ||||
| 5 | 141151340 | 1.55 | 1.88 | |
| Self-locking hexagon nut | ||||
| 6 | 6202002305 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 8 | 1382689697 | |||
| No information available, not orderable | ||||
| 9 | 1383689674 | |||
| DIMENSION MARKING 0.20X13X1400 167.75-300.0 | ||||
| 10 | 1142684710 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 11 | 7001124212 | |||
| No information available, not orderable | ||||
| 12 | 1393204296 | |||
| No information available, not orderable | ||||
| 13 | 1142684701 | |||
| Washer | ||||
| 14 | 141150130 | 1.55 | 1.88 | |
| Flange nut | ||||
| 15 | 6209114230 | 1.55 | 1.88 | |
| Cilinderkopschroef | ||||
| 16 | 141113990 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 17 | 1010222687 | |||
| Hexagon safety nut | ||||
| 18 | 141130650 | 1.67 | 2.02 | |
| Wing nut M 6 | ||||
| 19 | 7005155791 | 2.28 | 2.76 | |
| Slotted bolt with square insert | ||||
| 20 | 6110000608 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 21 | 1482222729 | |||
| No information available, not orderable | ||||
| 22 | 1382222713 | |||
| SLOT BOLT 60X25 BLACK | ||||
| 23 | 1391019971 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 24 | 141122690 | |||
| Cylinder head screw | ||||
| 25 | 6121023081 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 26 | 1482222672 | |||
| Disc spring | ||||
| 27 | 141155660 | 1.55 | 1.88 | |
| Cilinderkopschroef | ||||
| 28 | 141113870 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 29 | 1383685075 | |||
| No information available, not orderable | ||||
| 30 | 7052222758 | |||
| Clamping Piece BL 2.99X190X190 TVL-RIGHT-KGS3 | ||||
| 31 | 1382717224 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 32 | 1482684749 | |||
| BOLT WITH HEAD | ||||
| 33 | 6632111175 | 2.28 | 2.76 | |
| CLAMP PLATE BL 2,99X27X88 TVL-RIGHT-KGS30 | ||||
| 34 | 1482717205 | 10.38 | 12.56 | |
| STARLOCK | ||||
| 35 | 7016050711 | 1.55 | 1.88 | |
| CLAMP CENTER | ||||
| 36 | 2390205484 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 38 | 7005125213 | |||
| No information available, not orderable | ||||
| 39 | 1382690121 | |||
| RUNNER GUIDE PLATE | ||||
| 40 | 1392201587 | 1.55 | 1.88 | |
| Knurled Nut | ||||
| 41 | 6241125058 | 1.67 | 2.02 | |
| RUNNER WITH FLAP | ||||
| 42 | 2010200388 | 5.87 | 7.10 | |
| End piece | ||||
| 43 | 2391203760 | 1.67 | 2.02 | |
| Countersunk screw | ||||
| 44 | 6174155800 | 1.55 | 1.88 | |
| COUNTERSUNK SCREW M.SLOT M 6X20 VER | ||||
| 45 | 6130019585 | 1.55 | 1.88 | |
| Zeskante moer | ||||
| 46 | 141130100 | 1.55 | 1.88 | |
| SPACER DISC | ||||
| 47 | 6306169970 | 1.55 | 1.88 | |
| INTERMEDIATE SHEET TVL-KGS305 BL 2,00X70X162 | ||||
| 48 | 1382718603 | 5.87 | 7.10 | |
