Here you will find all available parts and drawings of the 'Metabo 0910058886-10 ( TAFELVERLENGING1600MMR-KGS303 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

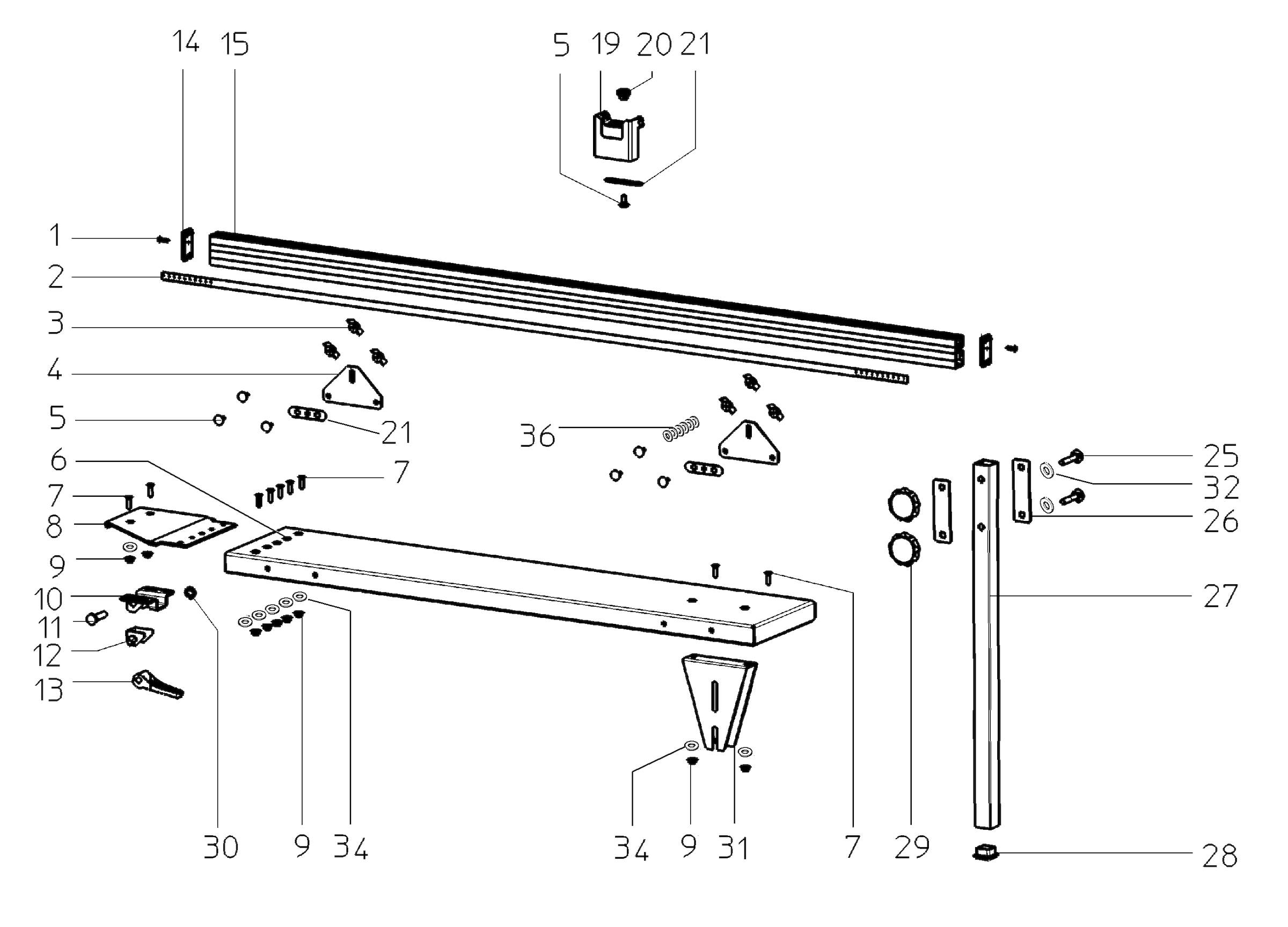

Technical drawing of model Metabo 0910058886-10 ( TAFELVERLENGING1600MMR-KGS303 )
Spare parts list of model Metabo 0910058886-10 ( TAFELVERLENGING1600MMR-KGS303 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Countersunk screw | ||||
| 1 | 6174155800 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 2 | 1142684701 | |||
| No information available, not orderable | ||||
| 3 | 7005125213 | |||
| No information available, not orderable | ||||
| 4 | 1382690121 | |||
| Slotted bolt with square insert | ||||
| 5 | 6110000594 | 1.55 | 1.88 | |
| Table extension profile BL 2.00X272X1036 | ||||
| 6 | 1382690008 | 94.12 | 113.89 | |
| COUNTERSUNK SCREW M.SLOT M 6X20 VER | ||||
| 7 | 6130019585 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 8 | 1382684733 | |||
| Zeskante moer | ||||
| 9 | 141130100 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 10 | 1482684749 | |||
| BOLT WITH HEAD | ||||
| 11 | 6632111175 | 2.28 | 2.76 | |
| CHIPBOARD ,BL 1X26X91.5 | ||||
| 12 | 1392205620 | 1.67 | 2.02 | |
| CLAMP CENTER | ||||
| 13 | 2390205484 | 7.22 | 8.74 | |
| End piece | ||||
| 14 | 2391203760 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 15 | 1393204296 | |||
| RUNNER WITH FLAP | ||||
| 19 | 2010200388 | 5.87 | 7.10 | |
| Knurled Nut | ||||
| 20 | 6241125058 | 1.67 | 2.02 | |
| RUNNER GUIDE PLATE | ||||
| 21 | 1392201587 | 1.55 | 1.88 | |
| SQUARE BOLT WITH SQUARE INSERT M 8X50 COAT | ||||
| 25 | 6110080245 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 26 | 1492057343 | |||
| No information available, not orderable | ||||
| 27 | 1382690199 | |||
| SLAT STOP BLACK | ||||
| 28 | 1391059264 | 1.55 | 1.88 | |
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 29 | 7000028937 | 2.28 | 2.76 | |
| STARLOCK | ||||
| 30 | 7016050711 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 31 | 1492057106 | |||
| Washer | ||||
| 32 | 6300016705 | 1.55 | 1.88 | |
| Washer | ||||
| 34 | 141150130 | 1.55 | 1.88 | |
| SPACER DISC | ||||
| 36 | 6306169970 | 1.55 | 1.88 | |
