Here you will find all available parts and drawings of the 'Metabo 0910018442-11 (TAFELBLADVERBREDINGUK220-PK200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

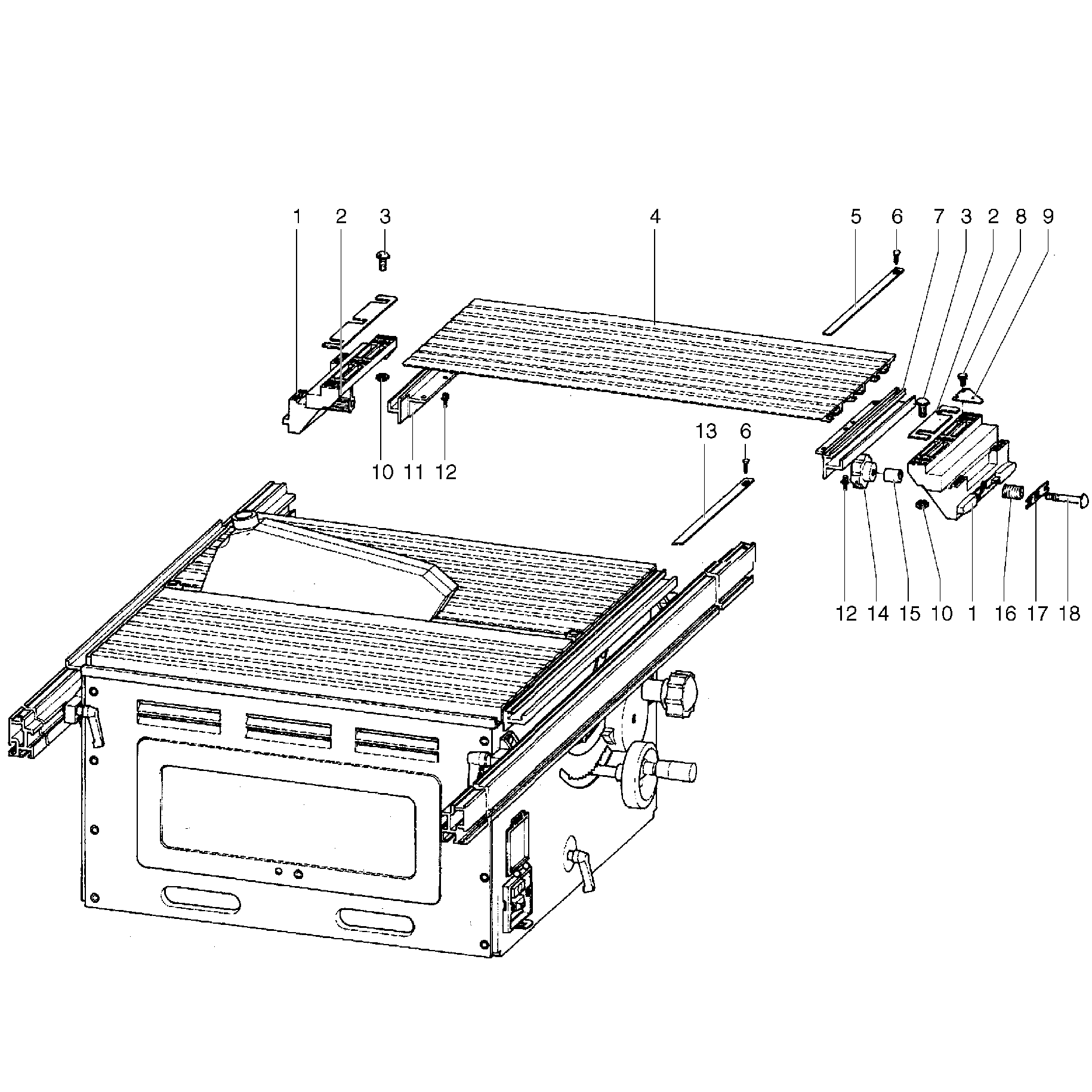

Technical drawing of model Metabo 0910018442-11 (TAFELBLADVERBREDINGUK220-PK200)
Spare parts list of model Metabo 0910018442-11 (TAFELBLADVERBREDINGUK220-PK200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 1380222228 | |||
| No information available, not orderable | ||||
| 2 | 1382222802 | |||
| Slotted bolt with square insert | ||||
| 3 | 6110000608 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 4 | 1383222253 | |||
| DIMENSION INDICATION 0.50X9.3X193 21.65-34.00 | ||||
| 5 | 1142222368 | 7.58 | 9.17 | |
| Countersunk screw | ||||
| 6 | 6172091014 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 7 | 1383222261 | |||
| Hexagon screw M 4X8 (Framed disc) Verz | ||||
| 8 | 6143088225 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 9 | 1382222284 | |||
| Flange nut | ||||
| 10 | 6209114230 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 11 | 1383222270 | |||
| No information available, not orderable | ||||
| 12 | 6621075371 | |||
| No information available, not orderable | ||||
| 13 | 1142222376 | |||
| STAR KNOB NUT RD40/M 6 (DIN 934) GALVANIZED | ||||
| 14 | 7000025458 | 1.79 | 2.17 | |
| SPACER SLEEVE RD 15/6X18 | ||||
| 15 | 6442025779 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 16 | 7051222290 | |||
| No information available, not orderable | ||||
| 17 | 1382222233 | |||
| No information available, not orderable | ||||
| 18 | 6110129309 | |||
