Here you will find all available parts and drawings of the 'Metabo 0910018469-12 (TABLEREAREXTENSIONUK220-PK200-255-HC3)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

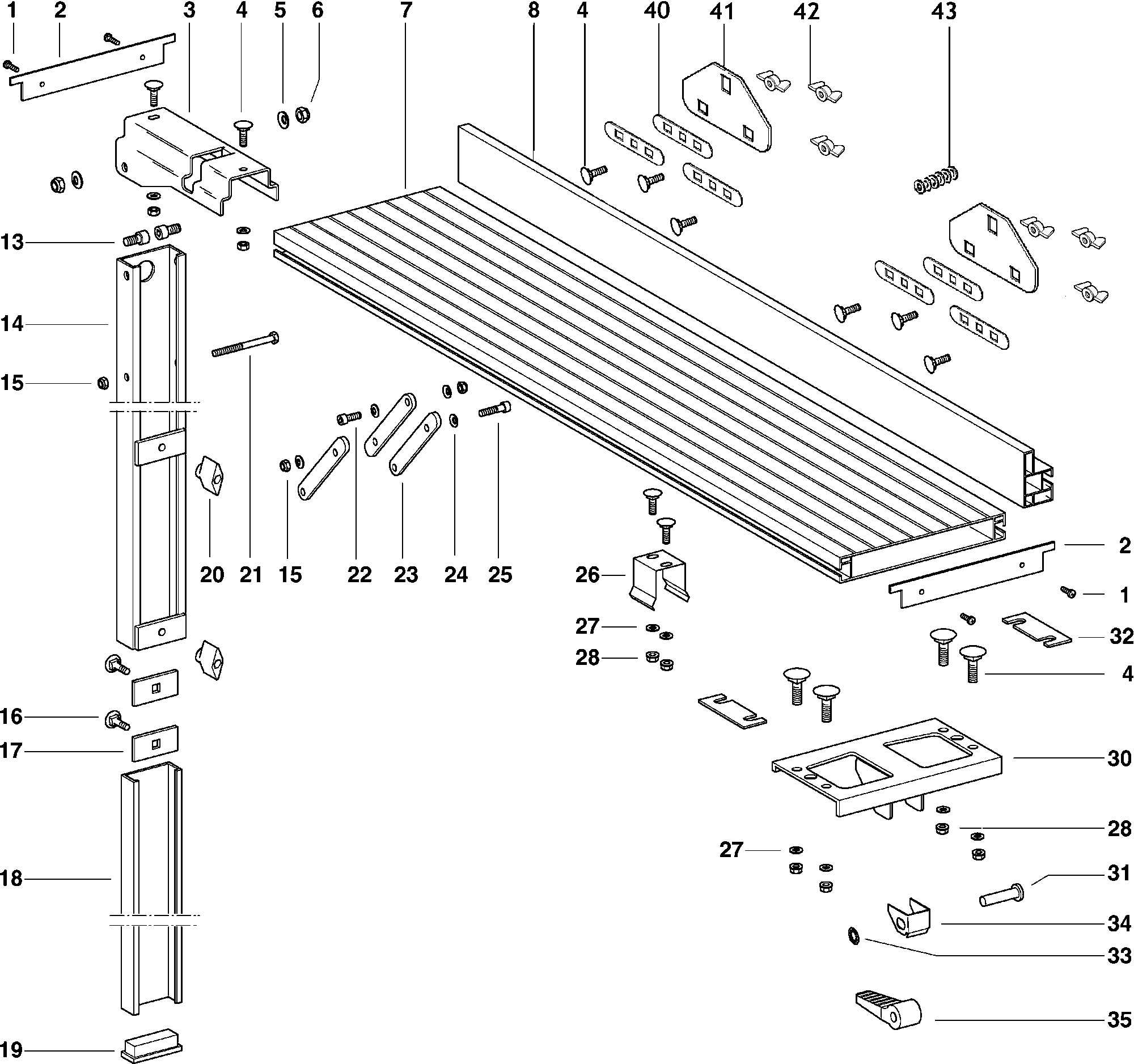

Technical drawing of model Metabo 0910018469-12 (TABLEREAREXTENSIONUK220-PK200-255-HC3)
Spare parts list of model Metabo 0910018469-12 (TABLEREAREXTENSIONUK220-PK200-255-HC3)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Countersunk screw | ||||
| 1 | 6172001830 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 2 | 1482222605 | |||
| No information available, not orderable | ||||
| 3 | 1482222664 | |||
| Slotted bolt with square insert | ||||
| 4 | 6110000594 | 1.67 | 2.02 | |
| Washer | ||||
| 5 | 141151340 | 1.67 | 2.02 | |
| Self-locking hexagon nut | ||||
| 6 | 6202002305 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 7 | 1383222598 | |||
| No information available, not orderable | ||||
| 8 | 1383222741 | |||
| Cilinderkopschroef | ||||
| 13 | 141113990 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 14 | 1010222687 | |||
| Hexagon safety nut | ||||
| 15 | 141130650 | 1.79 | 2.17 | |
| Slotted bolt with square insert | ||||
| 16 | 6110000608 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 17 | 1482222729 | |||
| No information available, not orderable | ||||
| 18 | 1382222713 | |||
| SLOT BOLT 60X25 BLACK | ||||
| 19 | 1391019971 | 1.79 | 2.17 | |
| Wing nut M 6 | ||||
| 20 | 7005155791 | 2.43 | 2.94 | |
| No information available, not orderable | ||||
| 21 | 141122690 | |||
| Cylinder head screw | ||||
| 22 | 6121023081 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 23 | 1482222672 | |||
| Disc spring | ||||
| 24 | 141155660 | 1.67 | 2.02 | |
| Cilinderkopschroef | ||||
| 25 | 141113870 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 26 | 7052222758 | |||
| Washer | ||||
| 27 | 141150130 | 1.67 | 2.02 | |
| Zeskante moer | ||||
| 28 | 141130100 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 30 | 1482222869 | |||
| BOLT WITH HEAD | ||||
| 31 | 6632111175 | 2.43 | 2.94 | |
| No information available, not orderable | ||||
| 32 | 1382222764 | |||
| STARLOCK | ||||
| 33 | 7016050711 | 1.67 | 2.02 | |
| CHIPBOARD ,BL 1X26X91.5 | ||||
| 34 | 1392205620 | 1.79 | 2.17 | |
| CLAMP CENTER | ||||
| 35 | 2390205484 | 7.58 | 9.17 | |
| RUNNER GUIDE PLATE | ||||
| 40 | 1392201587 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 41 | 1382690121 | |||
| No information available, not orderable | ||||
| 42 | 7005125213 | |||
| SPACER DISC | ||||
| 43 | 6306169970 | 1.67 | 2.02 | |
