Here you will find all available parts and drawings of the 'Metabo 03030000 (TAE3030)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

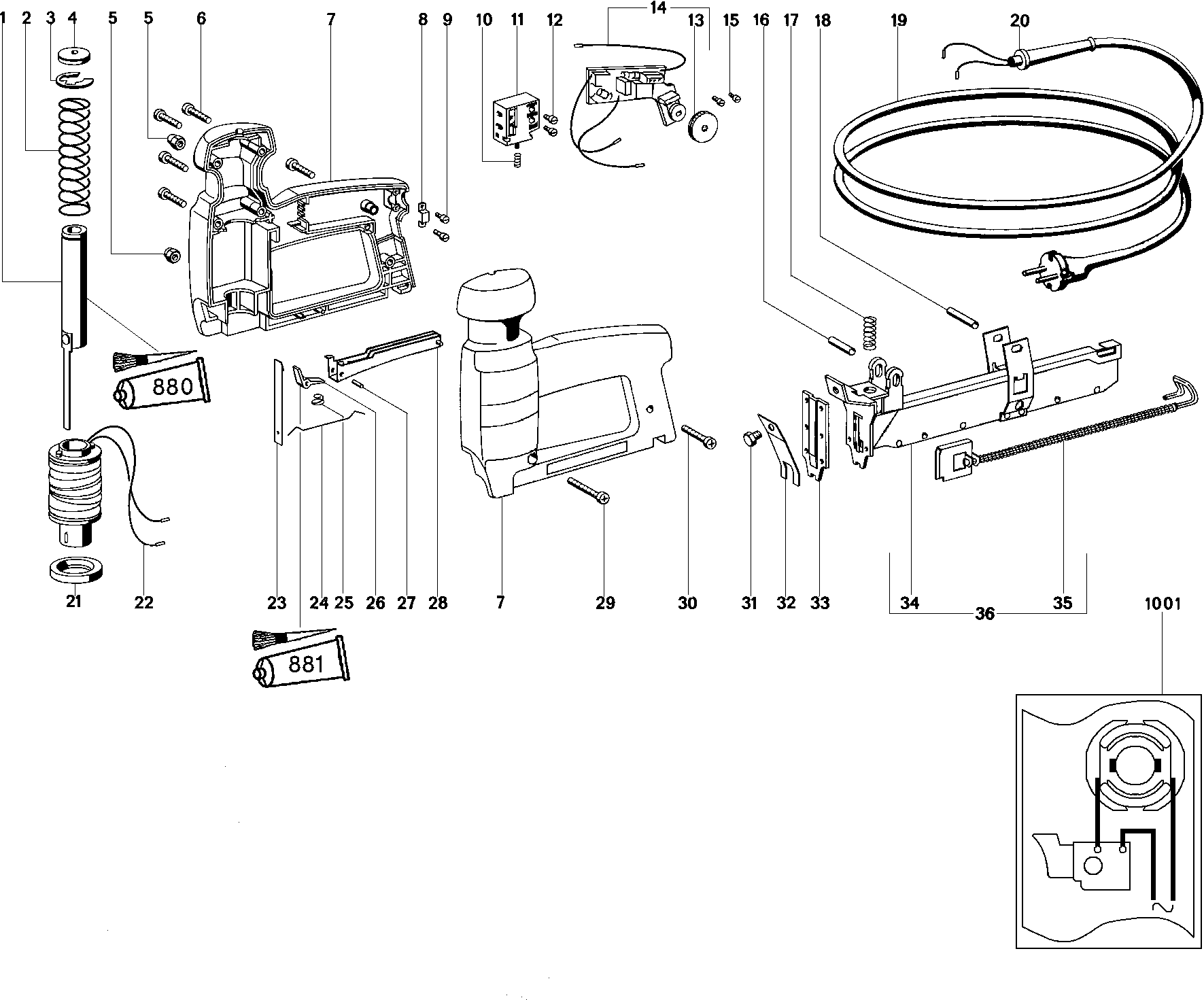

Technical drawing of model Metabo 03030000 (TAE3030)
Spare parts list of model Metabo 03030000 (TAE3030)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Zaagas compl. | ||||
| 1 | 341143180 | 18.28 | 22.12 | |
| No information available, not orderable | ||||
| 2 | 342001410 | |||
| No information available, not orderable | ||||
| 3 | 341142780 | |||
| Collection Buffer | ||||
| 4 | 344092760 | 12.19 | 14.75 | |
| Zeskantveiligheidsmoer | ||||
| 5 | 141131220 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 6 | 341701700 | 5.49 | 6.64 | |
| Huis m. deksel | ||||
| 7 | 343360910 | 83.19 | 100.66 | |
| Cable clip | ||||
| 8 | 339180070 | 5.49 | 6.64 | |
| No information available, not orderable | ||||
| 9 | 341701370 | |||
| Pressure spring | ||||
| 10 | 342001420 | 5.49 | 6.64 | |
| Schakelaar | ||||
| 11 | 343403390 | 21.22 | 25.68 | |
| Fillister head screw | ||||
| 12 | 141116970 | 1.79 | 2.17 | |
| Selector | ||||
| 13 | 343360920 | 5.49 | 6.64 | |
| Elektronische unit | ||||
| 14 | 343067710 | 94.99 | 114.94 | |
| Cilinderkopschroef | ||||
| 15 | 341701630 | 1.67 | 2.02 | |
| Afstandsbuis | ||||
| 16 | 341003570 | 2.43 | 2.94 | |
| Pressure spring | ||||
| 17 | 342001390 | 6.05 | 7.32 | |
| Afstandsbuis | ||||
| 18 | 341003580 | 5.49 | 6.64 | |
| Cable with CEE plug | ||||
| 19 | 344485880 | 13.93 | 16.86 | |
| Kabelbescherming | ||||
| 20 | 344100330 | 6.05 | 7.32 | |
| Intermediate filler | ||||
| 21 | 344092770 | 5.49 | 6.64 | |
| Complete coil | ||||
| 22 | 311007510 | 89.16 | 107.88 | |
| Transmission pin | ||||
| 23 | 343360940 | 6.05 | 7.32 | |
| Spring | ||||
| 24 | 342001440 | 6.05 | 7.32 | |
| Pressure spring | ||||
| 25 | 342001430 | 1.79 | 2.17 | |
| Blokkering | ||||
| 26 | 343360930 | 5.49 | 6.64 | |
| Spindle | ||||
| 27 | 341142830 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 28 | 343360950 | |||
| Fillister head screw | ||||
| 29 | 141118140 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 30 | 141111430 | 1.79 | 2.17 | |
| Zeskantschroef | ||||
| 31 | 341701690 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 32 | 342050330 | |||
| Front plate | ||||
| 33 | 339122450 | 18.28 | 22.12 | |
| Channel | ||||
| 34 | 341142770 | 145.97 | 176.62 | |
| Schuif compl. | ||||
| 35 | 341142810 | 18.28 | 22.12 | |
| Slede compl. | ||||
| 36 | 341142820 | 169.87 | 205.54 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344131030 | 15.31 | 18.53 | |
| Grease Tube 100 gr. GF 001 | ||||
| 881 | 344130270 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 1001 | 338503710 | |||
