Here you will find all available parts and drawings of the 'Metabo 02019002 ( TAE2019 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

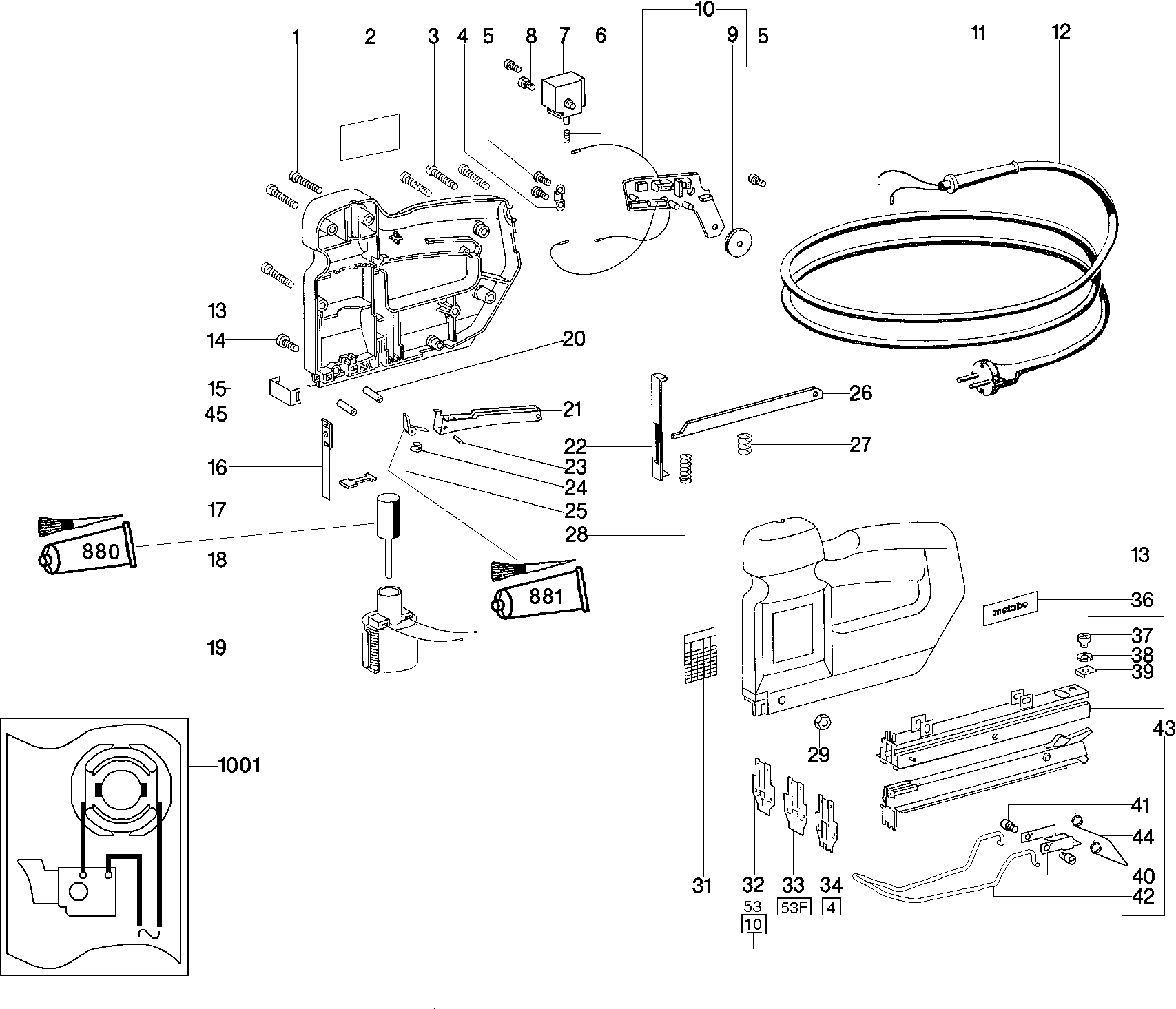

Technical drawing of model Metabo 02019002 ( TAE2019 )
Spare parts list of model Metabo 02019002 ( TAE2019 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 341701850 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 2 | 338024970 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 3 | 341701700 | 5.18 | 6.27 | |
| Cable clip | ||||
| 4 | 339180070 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 5 | 341701370 | |||
| Pressure spring | ||||
| 6 | 342001420 | 5.18 | 6.27 | |
| Schakelaar | ||||
| 7 | 343403390 | 18.80 | 22.75 | |
| Fillister head screw | ||||
| 8 | 141116970 | 1.67 | 2.02 | |
| Selector | ||||
| 9 | 343360920 | 1.67 | 2.02 | |
| Elektronische unit | ||||
| 10 | 343074120 | 201.99 | 244.41 | |
| Kabelbescherming | ||||
| 11 | 344100330 | 5.87 | 7.10 | |
| Cable with CEE plug | ||||
| 12 | 344485880 | 12.23 | 14.80 | |
| Housing with cover | ||||
| 13 | 315013090 | 107.70 | 130.32 | |
| Fillister head screw | ||||
| 14 | 141116850 | 1.67 | 2.02 | |
| Terminal | ||||
| 15 | 339005630 | 5.18 | 6.27 | |
| Blade | ||||
| 16 | 341144790 | 8.89 | 10.76 | |
| Storage Plate | ||||
| 17 | 344093960 | 5.87 | 7.10 | |
| Zaagas compl. | ||||
| 18 | 341144780 | 24.23 | 29.32 | |
| Spoel compl. | ||||
| 19 | 311041430 | 32.27 | 39.05 | |
| Afstandsbuis | ||||
| 20 | 341004530 | 2.28 | 2.76 | |
| Ontspanner | ||||
| 21 | 343360950 | 3.71 | 4.49 | |
| Transfer Element | ||||
| 22 | 343367690 | 5.87 | 7.10 | |
| Spindle | ||||
| 23 | 341142830 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 24 | 342001490 | 2.28 | 2.76 | |
| Blokkering | ||||
| 25 | 343360930 | 3.02 | 3.65 | |
| Rocker | ||||
| 26 | 339003990 | 18.80 | 22.75 | |
| Pressure spring | ||||
| 27 | 342002090 | 5.87 | 7.10 | |
| Pressure spring | ||||
| 28 | 342002110 | 1.67 | 2.02 | |
| Cap nut | ||||
| 29 | 141130340 | 5.87 | 7.10 | |
| Aanduidingsplaatje | ||||
| 31 | 338117040 | 1.55 | 1.88 | |
| Front plate | ||||
| 32 | 339125440 | 18.80 | 22.75 | |
| Front plate | ||||
| 33 | 339125450 | 18.80 | 22.75 | |
| Front plate | ||||
| 34 | 339125460 | 18.80 | 22.75 | |
| Metabo plaatje | ||||
| 36 | 338122410 | 1.55 | 1.88 | |
| Cylinder head screw | ||||
| 37 | 141111030 | 1.55 | 1.88 | |
| Spring washer | ||||
| 38 | 141150260 | 1.55 | 1.88 | |
| Angle | ||||
| 39 | 339125930 | 1.67 | 2.02 | |
| Spanhendel | ||||
| 40 | 339125950 | 7.22 | 8.74 | |
| Tap Screw | ||||
| 41 | 341702480 | 1.67 | 2.02 | |
| Spanbeugel | ||||
| 42 | 339125940 | 7.22 | 8.74 | |
| Schuifplaat | ||||
| 43 | 341144270 | 100.74 | 121.90 | |
| Draadbeugel | ||||
| 44 | 339129530 | 5.87 | 7.10 | |
| Cilinderstift | ||||
| 45 | 141163970 | 5.87 | 7.10 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344131030 | 13.48 | 16.31 | |
| Grease Tube 100 gr. GF 001 | ||||
| 881 | 344130270 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 1001 | 338501240 | |||
