Here you will find all available parts and drawings of the 'Metabo 00431000 ( T13-125SETTUCK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

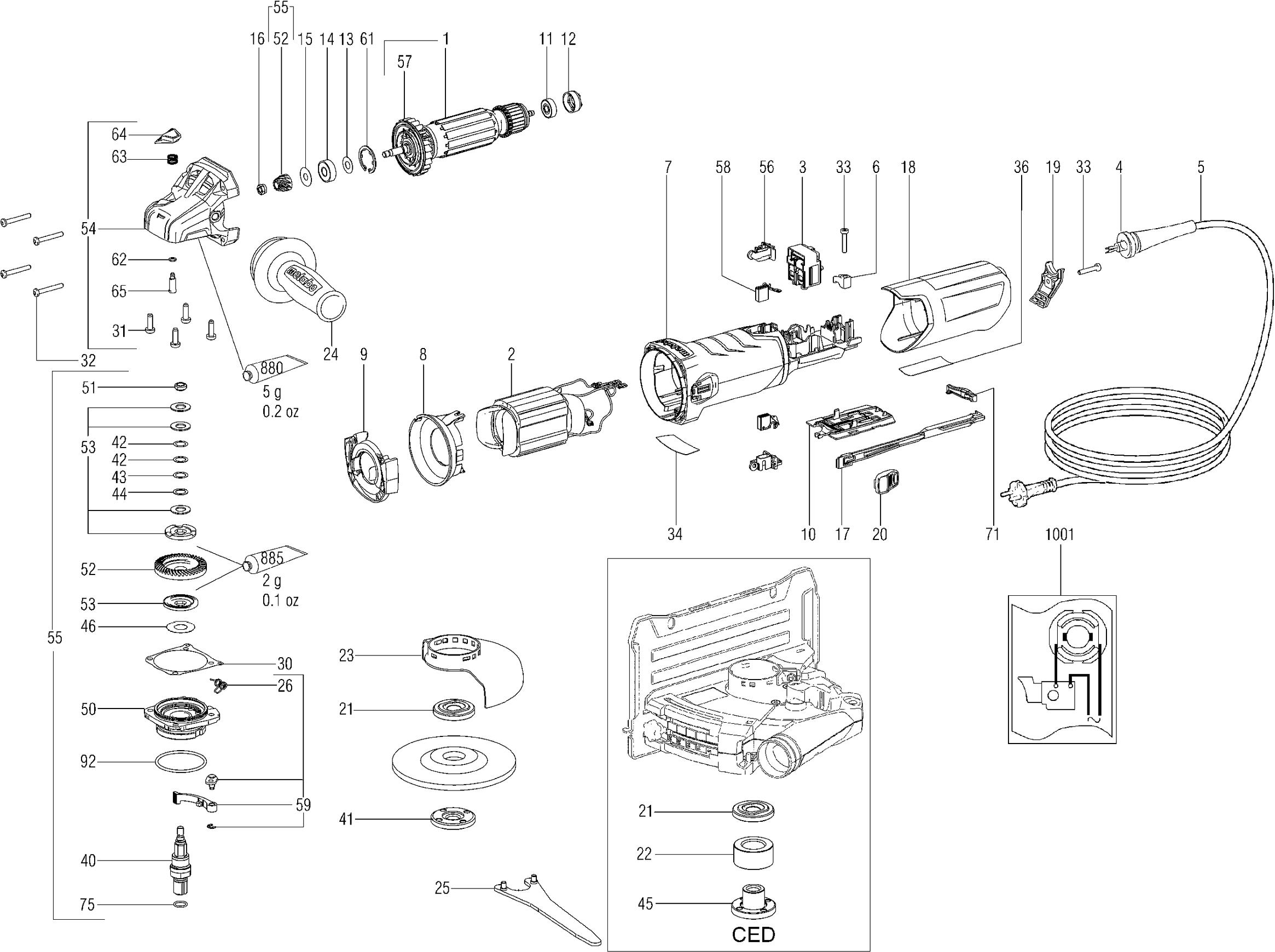

Technical drawing of model Metabo 00431000 ( T13-125SETTUCK )
Spare parts list of model Metabo 00431000 ( T13-125SETTUCK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010980 | 67.33 | 81.47 | |
| Field | ||||
| 2 | 311011980 | 48.48 | 58.66 | |
| Switch,FPCe 230 V | ||||
| 3 | 343411110 | 18.80 | 22.75 | |
| Kabeldoorvoer | ||||
| 4 | 344100970 | 1.67 | 2.02 | |
| Kabel m.CEE-stekker | ||||
| 5 | 344499560 | 13.48 | 16.31 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151180 | 1.55 | 1.88 | |
| Luchtgeleidingsschijf | ||||
| 9 | 339151200 | 1.55 | 1.88 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.55 | 1.88 | |
| Washer,8.05x17x0.4 | ||||
| 13 | 339133060 | 1.55 | 1.88 | |
| Groefkogellager,8x22x7 | ||||
| 14 | 143115700 | 3.02 | 3.65 | |
| Washer,7.05x19.5x0.2 | ||||
| 15 | 339006390 | 1.55 | 1.88 | |
| Zeskantmoer | ||||
| 16 | 341100940 | 1.67 | 2.02 | |
| Schakelstang | ||||
| 17 | 343433070 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 20 | 343437100 | 1.55 | 1.88 | |
| Afstandshuls | ||||
| 22 | 341071510 | 12.23 | 14.80 | |
| Beschermkap,D125 | ||||
| 23 | 339204500 | 8.89 | 10.76 | |
| Anti-Vibration Handle, M 8 | ||||
| 24 | 314000970 | 13.48 | 16.31 | |
| Pennensleutel | ||||
| 25 | 344163920 | 3.02 | 3.65 | |
| Type plate HK 85 EB 230V | ||||
| 34 | 338072360 | 1.67 | 2.02 | |
| Slijpspil M14 | ||||
| 40 | 341604420 | 12.23 | 14.80 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 42 | 141151120 | 1.55 | 1.88 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 43 | 141152300 | 1.67 | 2.02 | |
| Washer 10,2 X 14,8X 0,5 | ||||
| 44 | 141153920 | 1.55 | 1.88 | |
| Spanmoer,M14 | ||||
| 45 | 341102410 | 7.22 | 8.74 | |
| Flens compl. | ||||
| 50 | 316058290 | 48.48 | 58.66 | |
| Schotelwiel m.Tandwiel | ||||
| 52 | 316055690 | 26.95 | 32.61 | |
| Friction Disc Set Compl. | ||||
| 53 | 316055080 | 12.23 | 14.80 | |
| Tandwielhuis compl. | ||||
| 54 | 316055100 | 48.48 | 58.66 | |
| Veiligheidskoppeling m.Tandwiel | ||||
| 55 | 316058300 | 121.19 | 146.64 | |
| Koolborstelhouder compl. | ||||
| 56 | 316055240 | 12.23 | 14.80 | |
| Waaier m. Stofbeschermkorf | ||||
| 57 | 316054850 | 3.71 | 4.49 | |
| Koolborstelset uitsch. | ||||
| 58 | 316055210 | 10.38 | 12.56 | |
| Spanhendel compl. | ||||
| 59 | 316055110 | 8.89 | 10.76 | |
| Rocker switch | ||||
| 71 | 343433090 | 1.55 | 1.88 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338505810 | |||
