Here you will find all available parts and drawings of the 'Metabo 20034000 ( SXEPARTNEREDITION )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

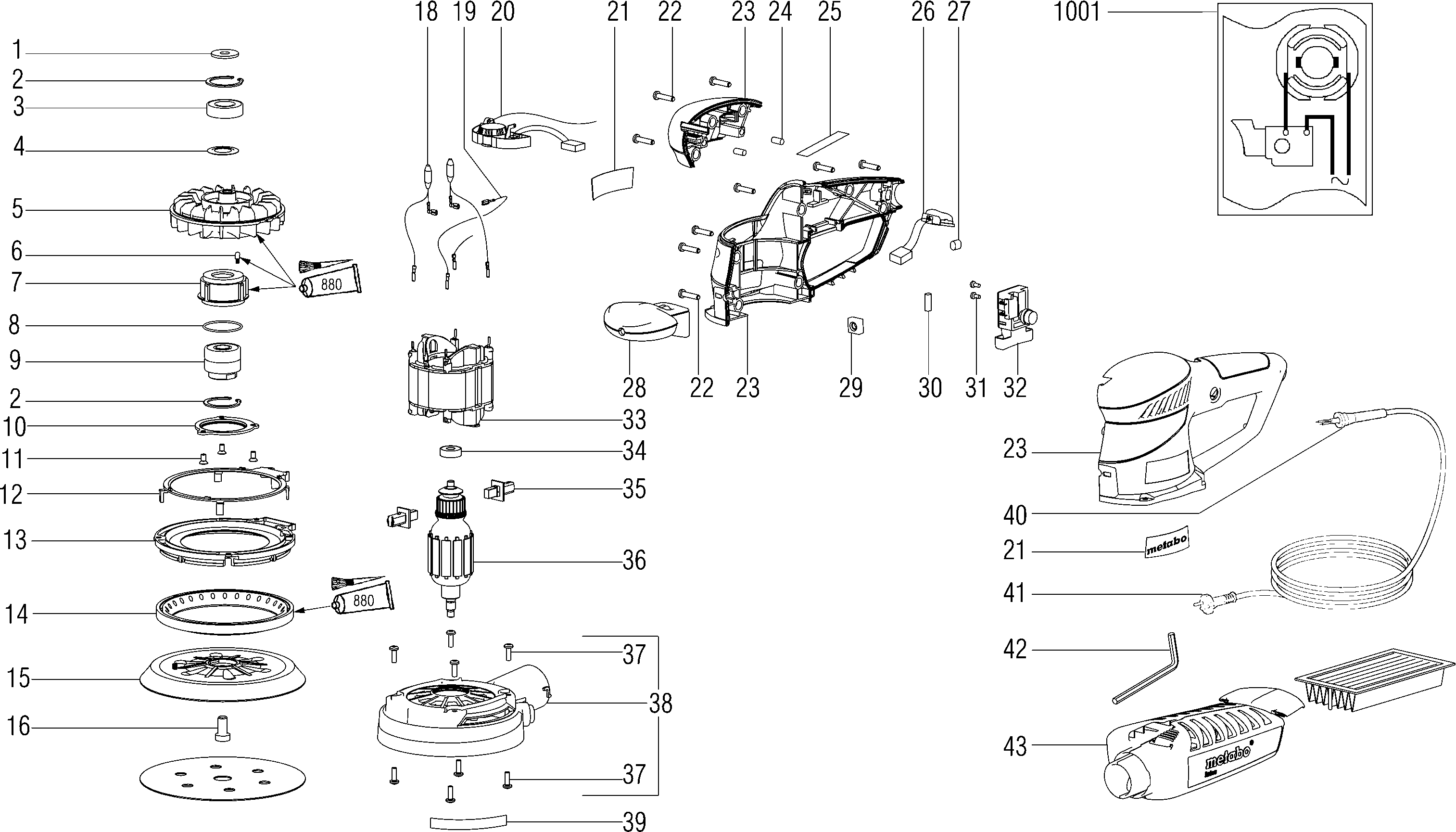

Technical drawing of model Metabo 20034000 ( SXEPARTNEREDITION )
Spare parts list of model Metabo 20034000 ( SXEPARTNEREDITION )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer | ||||
| 1 | 339007020 | 1.67 | 2.02 | |
| Ring | ||||
| 2 | 141180710 | 3.02 | 3.65 | |
| Ball bearing 15x32x9 | ||||
| 3 | 143110220 | 18.80 | 22.75 | |
| Washer | ||||
| 4 | 339011340 | 1.55 | 1.88 | |
| Waaier compl. | ||||
| 5 | 316041570 | 67.33 | 81.47 | |
| Steunstift | ||||
| 6 | 342001140 | 1.67 | 2.02 | |
| Eccenter | ||||
| 7 | 315416210 | 24.23 | 29.32 | |
| O-ring | ||||
| 8 | 143193270 | 1.67 | 2.02 | |
| Meenemer compl. | ||||
| 9 | 316026510 | 37.65 | 45.56 | |
| Retraining sheet | ||||
| 10 | 316026320 | 8.89 | 10.76 | |
| Platverzonken schroef | ||||
| 11 | 141119950 | 1.67 | 2.02 | |
| Luchtgeleiderplaat | ||||
| 12 | 343393320 | 2.28 | 2.76 | |
| Cover | ||||
| 13 | 343393310 | 3.71 | 4.49 | |
| Brake ring | ||||
| 14 | 344097790 | 5.18 | 6.27 | |
| Schuurbord compl. | ||||
| 15 | 344101970 | 24.23 | 29.32 | |
| Cilinderkopschroef | ||||
| 16 | 141114590 | 1.67 | 2.02 | |
| Smoorspoel | ||||
| 18 | 343254040 | 3.02 | 3.65 | |
| Strand set | ||||
| 19 | 344496990 | 1.67 | 2.02 | |
| Electronic unit,230V / 50 Hz | ||||
| 20 | 343080850 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 21 | 338121290 | |||
| Self-tap fill h screw | ||||
| 22 | 141116020 | 1.67 | 2.02 | |
| Housing with cover | ||||
| 23 | 343393300 | 32.27 | 39.05 | |
| Rubber stop | ||||
| 24 | 344092220 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 25 | 338049650 | |||
| Schakelaar | ||||
| 26 | 343408630 | 11.74 | 14.21 | |
| Rubber stop | ||||
| 27 | 344091420 | 1.55 | 1.88 | |
| Side support handle compl. | ||||
| 28 | 316041410 | 5.18 | 6.27 | |
| 4-knts moer | ||||
| 29 | 341102080 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 31 | 141116970 | 1.67 | 2.02 | |
| Pressure Switch Black | ||||
| 32 | 343408920 | 7.22 | 8.74 | |
| Field package m.winding | ||||
| 33 | 311010520 | 48.48 | 58.66 | |
| No information available, not orderable | ||||
| 34 | 143114900 | |||
| Koolborstel set | ||||
| 35 | 316033670 | 11.74 | 14.21 | |
| Anker 230 V | ||||
| 36 | 310008870 | 94.12 | 113.89 | |
| Fill. head screw | ||||
| 37 | 141120070 | 1.55 | 1.88 | |
| Lagerflens compl. | ||||
| 38 | 316040280 | 80.81 | 97.78 | |
| Aanduidingsplaatje | ||||
| 39 | 338121060 | 1.55 | 1.88 | |
| Kabeldoorvoer | ||||
| 40 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 41 | 344493180 | 21.64 | 26.18 | |
| Angle screwdriver | ||||
| 42 | 344161520 | 1.67 | 2.02 | |
| Dust bag | ||||
| 43 | 344101410 | 12.23 | 14.80 | |
| Grease Tube 50 gr. SF 016 1,8oz | ||||
| 880 | 344130130 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 1001 | 338504640 | |||
