Here you will find all available parts and drawings of the 'Metabo 00131000 (SXE425TurboTec)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

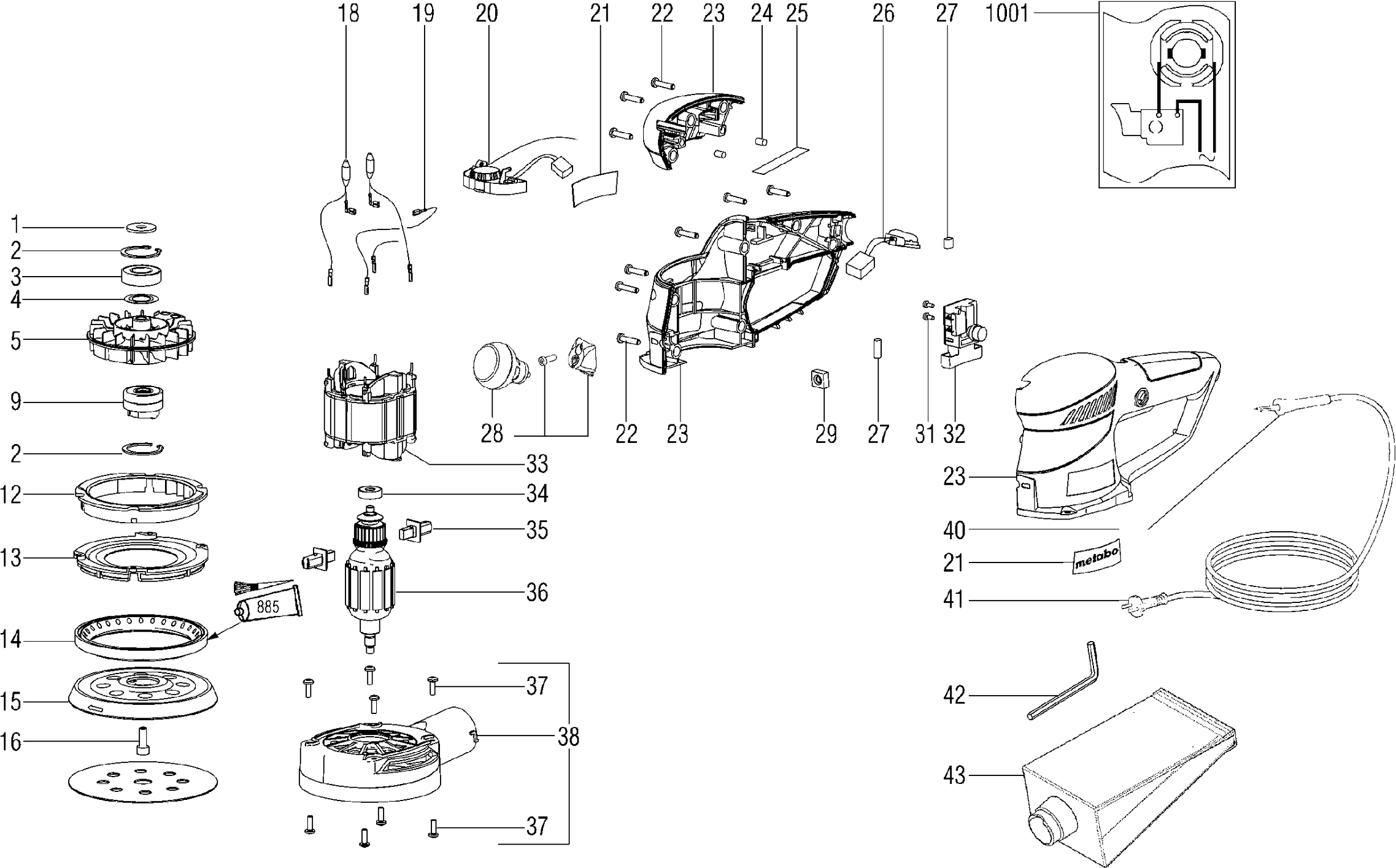

Technical drawing of model Metabo 00131000 (SXE425TurboTec)
Spare parts list of model Metabo 00131000 (SXE425TurboTec)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Washer | ||||
| 1 | 339007020 | 1.79 | 2.17 | |
| Ring | ||||
| 2 | 141180710 | 3.20 | 3.87 | |
| Kogellager 15x32x 9 | ||||
| 3 | 143115790 | 3.89 | 4.71 | |
| Washer | ||||
| 4 | 339011340 | 1.67 | 2.02 | |
| Afzuigventilator | ||||
| 5 | 330001780 | 27.16 | 32.86 | |
| Meenemer compl. | ||||
| 9 | 316041480 | 57.79 | 69.93 | |
| Luchtgeleiderplaat | ||||
| 12 | 343393350 | 3.20 | 3.87 | |
| Holder | ||||
| 13 | 343393340 | 3.20 | 3.87 | |
| Brake ring | ||||
| 14 | 344097820 | 5.49 | 6.64 | |
| Schuurbord compl. | ||||
| 15 | 344101980 | 27.16 | 32.86 | |
| Cilinderkopschroef | ||||
| 16 | 141113850 | 1.79 | 2.17 | |
| Smoorspoel | ||||
| 18 | 343254040 | 3.20 | 3.87 | |
| Connection wire set with plug | ||||
| 19 | 316071200 | 5.49 | 6.64 | |
| Strand set | ||||
| 19 | 344496990 | 1.79 | 2.17 | |
| Electronic unit,230V / 50 Hz | ||||
| 20 | 343080850 | 29.97 | 36.26 | |
| Metabo plaatje | ||||
| 21 | 338122410 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 22 | 141116020 | 1.79 | 2.17 | |
| Housing with cover | ||||
| 23 | 343393300 | 35.72 | 43.22 | |
| Rubber stop | ||||
| 24 | 344092220 | 1.67 | 2.02 | |
| Vermogensplaatje | ||||
| 25 | 338048380 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 26 | 343408630 | 12.19 | 14.75 | |
| Rubber stop | ||||
| 27 | 344091420 | 1.67 | 2.02 | |
| Handgreep extra compl. | ||||
| 28 | 316067440 | 12.19 | 14.75 | |
| 4-knts moer | ||||
| 29 | 341102080 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 31 | 141116970 | 1.79 | 2.17 | |
| Pressure Switch Red | ||||
| 32 | 343408910 | 7.58 | 9.17 | |
| Field package m.winding | ||||
| 33 | 311010520 | 52.36 | 63.36 | |
| Ball bearing 6x19x6 | ||||
| 34 | 143115810 | 2.43 | 2.94 | |
| Koolborstel set | ||||
| 35 | 316033670 | 12.19 | 14.75 | |
| Anker 230 V | ||||
| 36 | 310008870 | 94.99 | 114.94 | |
| Fill. head screw | ||||
| 37 | 141120070 | 1.67 | 2.02 | |
| Lagerflens compl. | ||||
| 38 | 316040270 | 70.83 | 85.70 | |
| Kabeldoorvoer | ||||
| 40 | 344100970 | 1.79 | 2.17 | |
| Kabel m. CEE-stekker | ||||
| 41 | 344493180 | 24.26 | 29.35 | |
| Winkelschraubendreher | ||||
| 42 | 344164190 | 1.67 | 2.02 | |
| Dust bag | ||||
| 43 | 344101410 | 13.93 | 16.86 | |
| Grease Tube 50 gr. SF 016 1,8oz | ||||
| 885 | 344130130 | 29.97 | 36.26 | |
| No information available, not orderable | ||||
| 1001 | 338504640 | |||
