Here you will find all available parts and drawings of the 'Metabo 15050000 (SXE150-5.0BL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

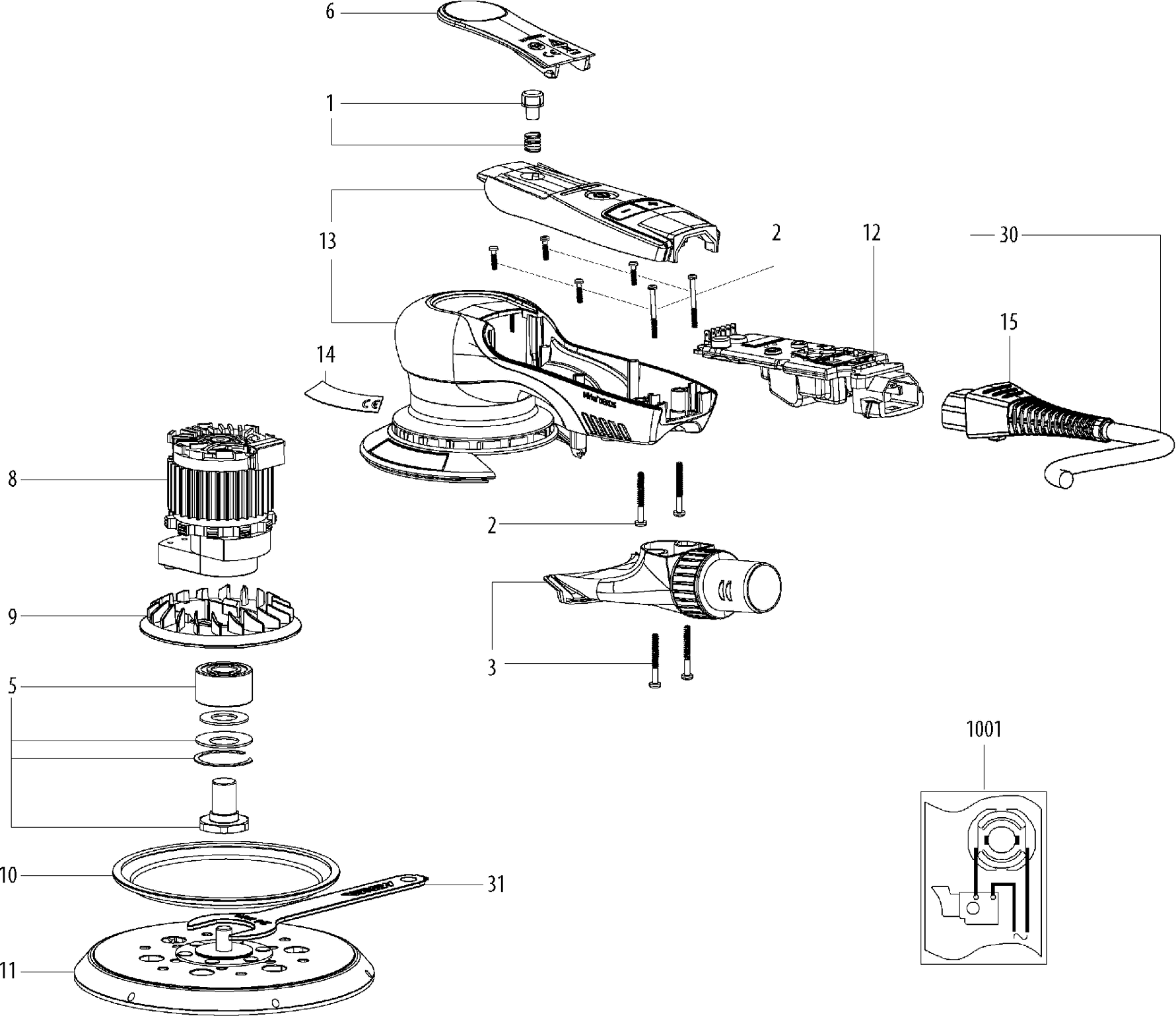

Technical drawing of model Metabo 15050000 (SXE150-5.0BL)
Spare parts list of model Metabo 15050000 (SXE150-5.0BL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guard button comp. | ||||
| 1 | 316096340 | 18.28 | 22.12 | |
| Schroevenset | ||||
| 2 | 316096350 | 13.93 | 16.86 | |
| Complete Exhaust system | ||||
| 3 | 316096360 | 29.97 | 36.26 | |
| Spil compl. | ||||
| 5 | 316096380 | 117.12 | 141.72 | |
| Lever 5,0 mm | ||||
| 6 | 343445550 | 13.93 | 16.86 | |
| Motor | ||||
| 8 | 317004920 | 378.90 | 458.47 | |
| Fan | ||||
| 9 | 330007050 | 12.19 | 14.75 | |
| Brake ring | ||||
| 10 | 344113630 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 11 | 630259000 | |||
| Elektro.unit compl. | ||||
| 12 | 316096390 | 281.70 | 340.86 | |
| Huis compl. | ||||
| 13 | 316096400 | 89.16 | 107.88 | |
| Typeplaatje | ||||
| 14 | 338068330 | 1.79 | 2.17 | |
| Apparaatstekker | ||||
| 15 | 344531740 | 24.26 | 29.35 | |
| Cable with CEE plug | ||||
| 30 | 344531170 | 52.36 | 63.36 | |
| Steeksleutel | ||||
| 31 | 344164210 | 6.05 | 7.32 | |
| No information available, not orderable | ||||
| 1001 | 338506650 | |||
