Here you will find all available parts and drawings of the 'Metabo 01041000 ( STEB80QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

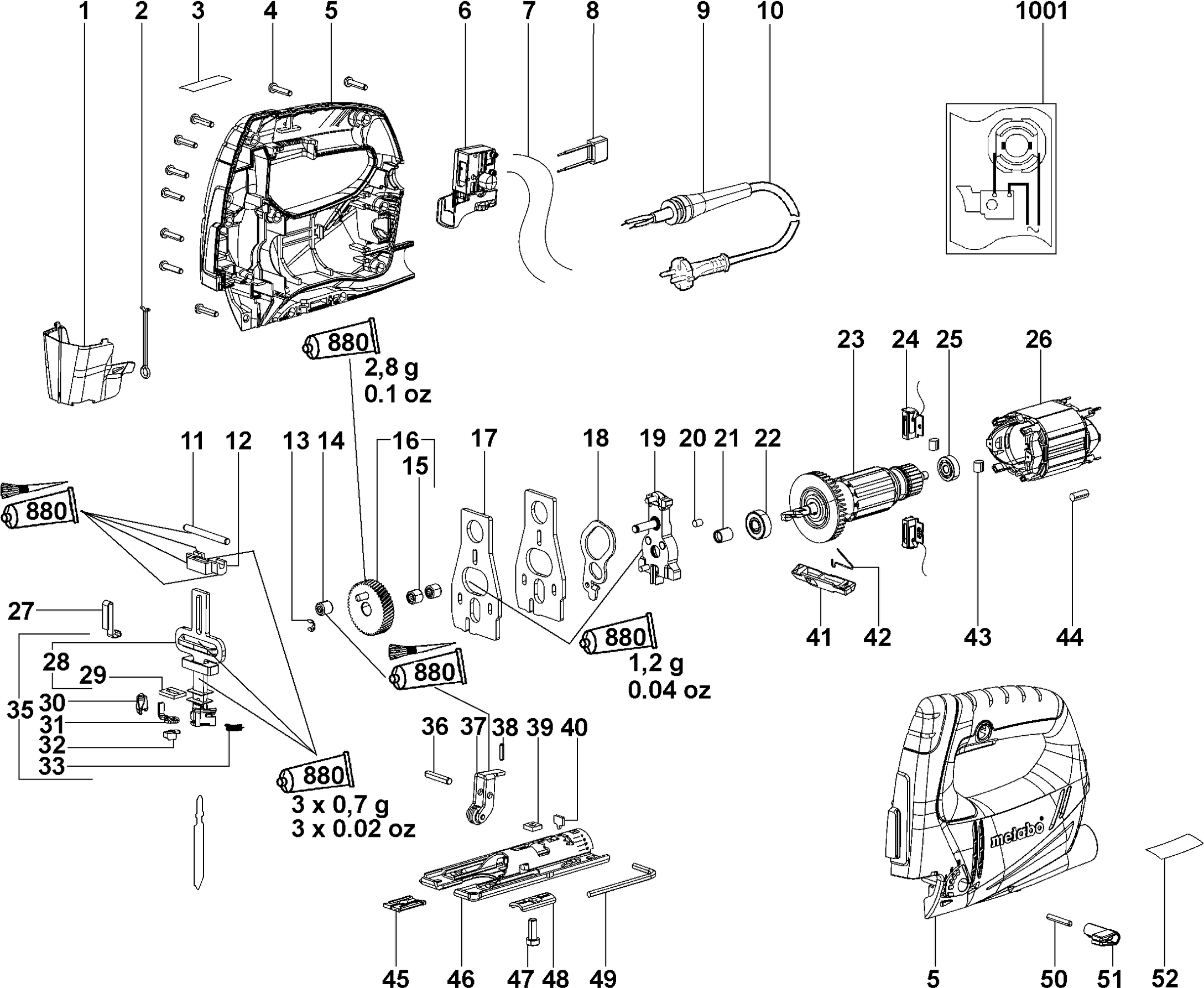

Technical drawing of model Metabo 01041000 ( STEB80QUICK )
Spare parts list of model Metabo 01041000 ( STEB80QUICK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Oogbeschermglas | ||||
| 1 | 343395460 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 2 | 342200570 | |||
| Typeplaatje | ||||
| 3 | 338052380 | 1.55 | 1.88 | |
| Self-tap fill h screw | ||||
| 4 | 141116020 | 1.67 | 2.02 | |
| Huis m.deksel | ||||
| 5 | 343394880 | 32.27 | 39.05 | |
| Electronic Switch, 230 V | ||||
| 6 | 343408850 | 11.74 | 14.21 | |
| Verbindingsdraad compl. | ||||
| 7 | 344497830 | 1.55 | 1.88 | |
| CAPACITOR 0,47µF | ||||
| 8 | 343255120 | 1.67 | 2.02 | |
| Kabelbescherming | ||||
| 9 | 344101140 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 10 | 344497810 | 10.38 | 12.56 | |
| Cilinderstift | ||||
| 11 | 141164050 | 1.55 | 1.88 | |
| Upper Guide Piece | ||||
| 12 | 341070660 | 1.55 | 1.88 | |
| Borgschijf | ||||
| 13 | 141181810 | 1.55 | 1.88 | |
| Needle bearing | ||||
| 14 | 341002610 | 12.23 | 14.80 | |
| NEEDLE BEARING | ||||
| 14 | 320054610 | 7.22 | 8.74 | |
| Naaldlager | ||||
| 15 | 143111430 | 5.18 | 6.27 | |
| Tandwiel compl. | ||||
| 16 | 316043990 | 10.38 | 12.56 | |
| Balanceerplaat | ||||
| 17 | 339133470 | 7.22 | 8.74 | |
| Pressure lever | ||||
| 18 | 339133460 | 3.02 | 3.65 | |
| Complete bearing bridge | ||||
| 19 | 316044000 | 8.89 | 10.76 | |
| Rubberen stop | ||||
| 20 | 344098660 | 1.55 | 1.88 | |
| Sealing bush | ||||
| 21 | 343380060 | 1.55 | 1.88 | |
| Kogellager 8x22x 7 | ||||
| 22 | 143115800 | 2.28 | 2.76 | |
| Complete Armature, 230V | ||||
| 23 | 310010430 | 60.59 | 73.31 | |
| Koolborstelhouder compl.,230V | ||||
| 24 | 316043490 | 5.87 | 7.10 | |
| Kogellager 6x19x 6 | ||||
| 25 | 143115660 | 2.28 | 2.76 | |
| Field | ||||
| 26 | 311011680 | 21.64 | 26.18 | |
| Flat spring | ||||
| 27 | 342050890 | 1.55 | 1.88 | |
| Welded Pusher | ||||
| 28 | 316043630 | 8.89 | 10.76 | |
| Latch Key | ||||
| 30 | 343396530 | 1.55 | 1.88 | |
| Lever | ||||
| 31 | 339133920 | 1.55 | 1.88 | |
| Clamping piece | ||||
| 32 | 341070720 | 7.22 | 8.74 | |
| Tension spring | ||||
| 33 | 342003550 | 1.55 | 1.88 | |
| Complete Pusher | ||||
| 35 | 316043660 | 12.23 | 14.80 | |
| Cilinderstift | ||||
| 36 | 141164040 | 1.55 | 1.88 | |
| Support lever compl. | ||||
| 37 | 316043470 | 8.89 | 10.76 | |
| Cilinderstift | ||||
| 38 | 341520190 | 1.55 | 1.88 | |
| Vierkante moer | ||||
| 39 | 141131370 | 1.55 | 1.88 | |
| Positioning Plate | ||||
| 40 | 339129310 | 1.55 | 1.88 | |
| Slide | ||||
| 41 | 343395450 | 1.55 | 1.88 | |
| Stop spring | ||||
| 42 | 342022190 | 1.55 | 1.88 | |
| Rubber stop | ||||
| 43 | 344091420 | 1.55 | 1.88 | |
| Rubber prop | ||||
| 44 | 344092550 | 1.55 | 1.88 | |
| Splinterbeveiliging | ||||
| 45 | 343395480 | 1.55 | 1.88 | |
| Voetplaat compl. | ||||
| 46 | 316043480 | 11.74 | 14.21 | |
| Cilinderkopschroef | ||||
| 47 | 141122300 | 1.55 | 1.88 | |
| Champing claw | ||||
| 48 | 339133640 | 1.55 | 1.88 | |
| Inbussleutel | ||||
| 49 | 344161530 | 1.67 | 2.02 | |
| Cilinderstift | ||||
| 50 | 141163320 | 1.55 | 1.88 | |
| Schakelknop compl. | ||||
| 51 | 316044010 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 52 | 399999990 | |||
| No information available, not orderable | ||||
| 53 | 399999990 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504880 | |||
