Here you will find all available parts and drawings of the 'Metabo 01404001 ( STEB140PLUS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

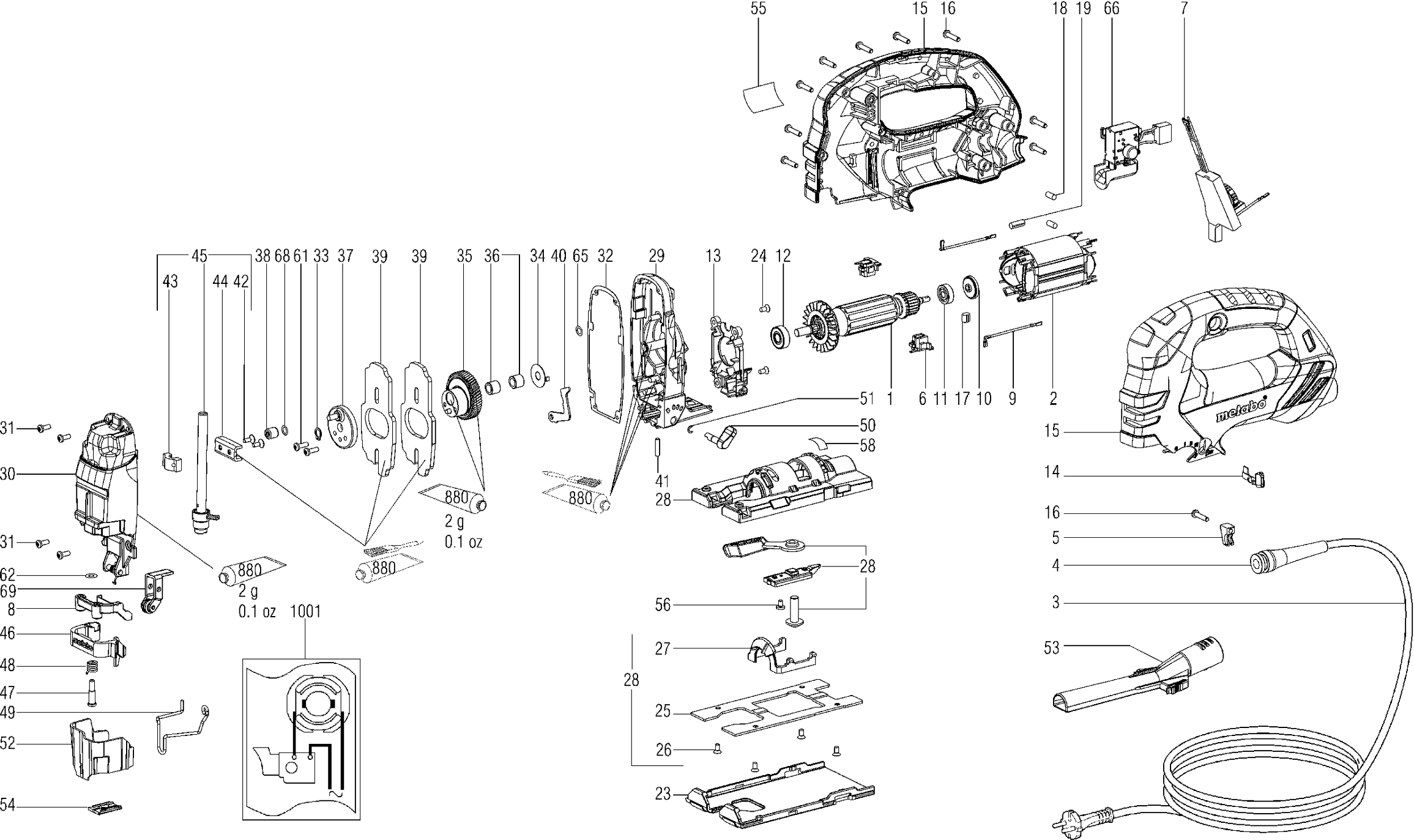

Technical drawing of model Metabo 01404001 ( STEB140PLUS )

Spare parts list of model Metabo 01404001 ( STEB140PLUS )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anker compl.
1 310011930 74.13 89.70
Field
2 311012510 37.65 45.56
No longer available, no replacement
3 344493170
Kabelbescherming
4 344101140 2.28 2.76
Cable clip
5 343362490 1.67 2.02
Carbon brush holder compl.
6 316049070 5.87 7.10
Elektronische unit,230V 50-60Hz
7 343082550 53.86 65.17
LED with cable
8 343082590 8.89 10.76
Verbindingsdraad compl.
9 344498890 1.55 1.88
Tachoschijf
10 343399750 1.67 2.02
Kogellager 6x19x 6
11 143115660 2.28 2.76
Ball bearing 8x22x 7
12 143114880 3.02 3.65
Luchtgeleidingsschijf
13 343430280 1.67 2.02
Schakelhendel
14 343399730 1.55 1.88
Huis m.deksel
15 343430320 37.65 45.56
Self-tap fill h screw
16 141116020 1.67 2.02
Rubber stop
17 344091420 1.55 1.88
Rubber stop
18 344092220 1.55 1.88
Rubber prop
19 344092550 1.55 1.88
Beschermplaat compl.
23 343430760 5.87 7.10
Platverzonken schroef
24 141122320 1.55 1.88
Bodemplaat
25 339134980 5.87 7.10
Countersunk screw
26 141122860 1.55 1.88
Connector housing
27 343430560 1.55 1.88
Grondplaat
28 316065980 37.65 45.56
Tandwielhuis compl.
29 316050320 67.33 81.47
Tandwieldeksel compl.
30 316052910 94.12 113.89
Fillister head screw
31 141110540 1.55 1.88
Gasket
32 339011920 1.55 1.88
Retaining ring
33 141180020 1.55 1.88
Aanloopring
34 339129470 1.55 1.88
Tandwiel compl.
35 316055630 26.95 32.61
Naaldlager
36 143113930 3.02 3.65
Excenterschijf
37 316031280 18.80 22.75
Needle bearing
38 341002610 12.23 14.80
Balanceerplaat
39 339160910 5.87 7.10
Drukhendel
40 339160920 1.55 1.88
Passing screw
42 341705590 1.55 1.88
Platverzonken schroef
42 141120550 1.55 1.88
Verbindingsstuk
43 341070310 2.28 2.76
Connecting link
44 339129450 1.67 2.02
Stoter compl.
45 316052920 74.13 89.70
Tension Lever, Quick
46 315417740 7.22 8.74
Passchroef
47 341704600 1.67 2.02
Spring clip
48 342022260 1.55 1.88
Beschermbeugel
49 342200670 1.67 2.02
Schakelhendel compl.
50 316048510 7.22 8.74
Ring halvemaan
51 141156580 1.55 1.88
Oogbeschermglas
52 344350470 2.28 2.76
Nozzle
53 343399740 5.87 7.10
Splinterbeveiliging
54 343395480 1.55 1.88
Typeplaatje
55 338056990 1.55 1.88
Screw
56 341704830 1.55 1.88
Scale Plate
58 338123510 1.55 1.88
Bolcylinderkopschroef
61 141111410 1.55 1.88
Washer
62 339134390 1.55 1.88
Washer
65 339007600 1.55 1.88
Potentiometer switch
66 343409540 13.48 16.31
Shim
68 339007660 1.55 1.88
Tube vet 50 gr. 1,8oz
880 344131280 16.25 19.66
No information available, not orderable
1001 338505700
