Here you will find all available parts and drawings of the 'Metabo 01195000 ( STE95QUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

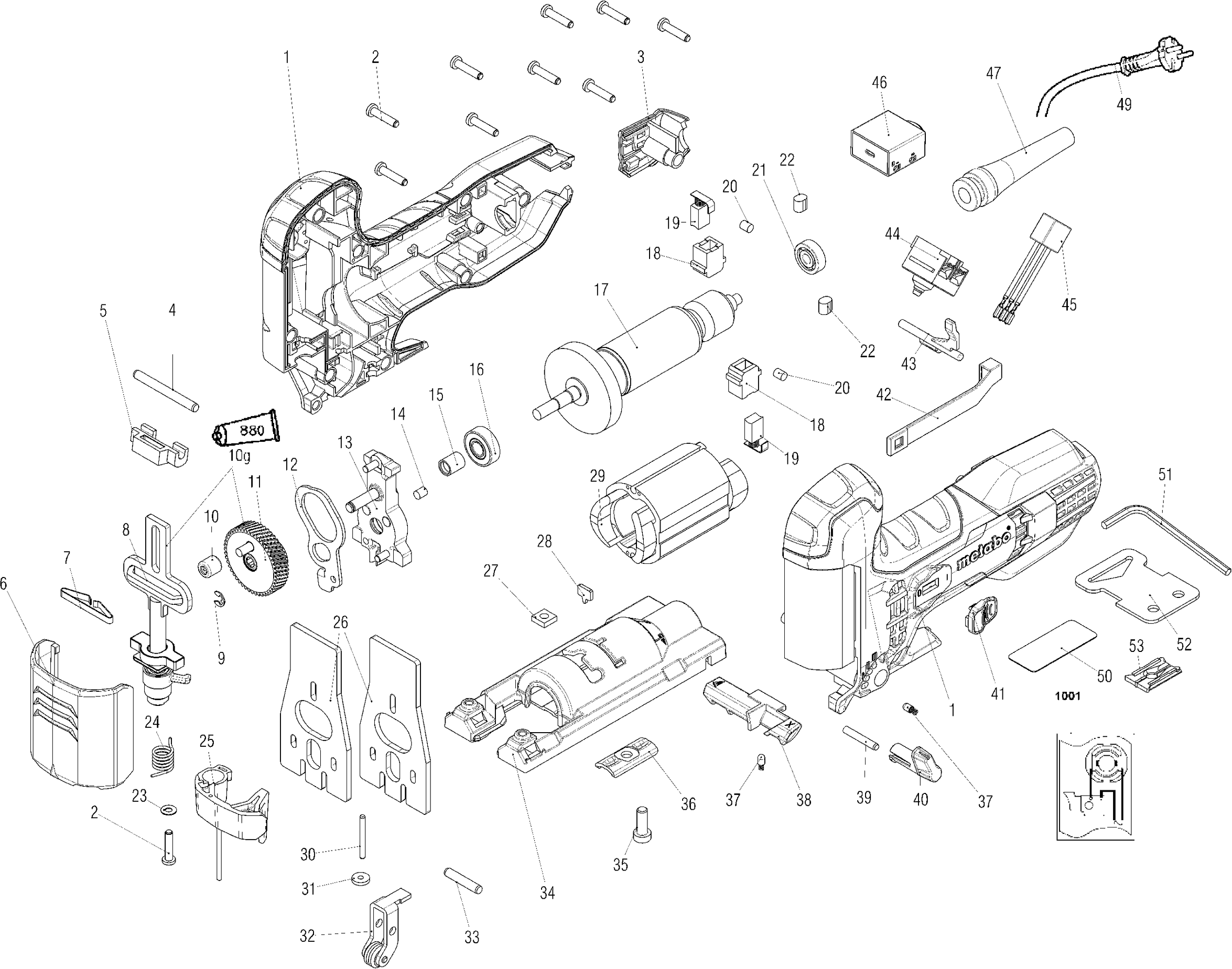

Technical drawing of model Metabo 01195000 ( STE95QUICK )
Spare parts list of model Metabo 01195000 ( STE95QUICK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 343411260 | 24.23 | 29.32 | |
| Self-tap fill h screw | ||||
| 2 | 141116020 | 1.67 | 2.02 | |
| Cover | ||||
| 3 | 343443090 | 1.67 | 2.02 | |
| Cilinderstift | ||||
| 4 | 141164050 | 1.55 | 1.88 | |
| Upper Guide Piece | ||||
| 5 | 341070660 | 1.55 | 1.88 | |
| Eye protection glass | ||||
| 6 | 343411270 | 2.28 | 2.76 | |
| Flat spring | ||||
| 7 | 342024210 | 1.55 | 1.88 | |
| Ram compl. | ||||
| 8 | 316093860 | 32.27 | 39.05 | |
| Complete Pusher | ||||
| 8 | 316097840 | 26.95 | 32.61 | |
| Borgschijf | ||||
| 9 | 141181810 | 1.55 | 1.88 | |
| Needle bearing | ||||
| 10 | 341002610 | 12.23 | 14.80 | |
| NEEDLE BEARING | ||||
| 10 | 320054610 | 7.22 | 8.74 | |
| Complete gear | ||||
| 11 | 316095050 | 16.25 | 19.66 | |
| Pressure plate | ||||
| 12 | 339137490 | 1.67 | 2.02 | |
| Lagerbrug compl.. | ||||
| 13 | 316095060 | 12.23 | 14.80 | |
| Rubberen stop | ||||
| 14 | 344098660 | 1.55 | 1.88 | |
| Sealing bush | ||||
| 15 | 343380060 | 1.55 | 1.88 | |
| Kogellager 8x22x 7 | ||||
| 16 | 143115800 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 17 | 310011950 | 37.65 | 45.56 | |
| Koolborstelhouder | ||||
| 18 | 343003110 | 1.55 | 1.88 | |
| Carbon Brush Set | ||||
| 19 | 316092210 | 3.02 | 3.65 | |
| Rubber stop | ||||
| 20 | 344092220 | 1.55 | 1.88 | |
| Kogellager 6x19x 6 | ||||
| 21 | 143115660 | 2.28 | 2.76 | |
| Rubber stop | ||||
| 22 | 344091420 | 1.55 | 1.88 | |
| Washer | ||||
| 23 | 141150010 | 1.55 | 1.88 | |
| Torsieveer | ||||
| 24 | 342022180 | 1.55 | 1.88 | |
| Hendel compl. | ||||
| 25 | 316093880 | 3.02 | 3.65 | |
| Opvulplaatje | ||||
| 26 | 339148140 | 5.87 | 7.10 | |
| Vierkante moer | ||||
| 27 | 141131370 | 1.55 | 1.88 | |
| Positioning Plate | ||||
| 28 | 339129310 | 1.55 | 1.88 | |
| Field | ||||
| 29 | 311012530 | 24.23 | 29.32 | |
| Cylindrical pin | ||||
| 30 | 341519670 | 1.55 | 1.88 | |
| Washer | ||||
| 31 | 339007300 | 1.55 | 1.88 | |
| Support lever compl. | ||||
| 32 | 316043470 | 8.89 | 10.76 | |
| Cilinderstift | ||||
| 33 | 141164040 | 1.55 | 1.88 | |
| Voetplaat compl. | ||||
| 34 | 316097020 | 16.25 | 19.66 | |
| Cilinderkopschroef | ||||
| 35 | 141122300 | 1.55 | 1.88 | |
| Champing claw | ||||
| 36 | 339133640 | 1.55 | 1.88 | |
| Steunstift | ||||
| 37 | 342001140 | 1.67 | 2.02 | |
| Slider | ||||
| 38 | 343411240 | 1.67 | 2.02 | |
| Cilinderstift | ||||
| 39 | 141163320 | 1.55 | 1.88 | |
| Schaltknopf | ||||
| 40 | 343411230 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 41 | 343411160 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 42 | 343411250 | 1.55 | 1.88 | |
| Druckplatte | ||||
| 43 | 343443080 | 1.55 | 1.88 | |
| Schakelaar | ||||
| 44 | 343411570 | 7.22 | 8.74 | |
| Condensator | ||||
| 45 | 343255100 | 2.28 | 2.76 | |
| Elektronische unit | ||||
| 46 | 343085640 | 26.95 | 32.61 | |
| Kabelbescherming | ||||
| 47 | 344101140 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 49 | 344493180 | 21.64 | 26.18 | |
| Typeplaatje | ||||
| 50 | 338069460 | 1.67 | 2.02 | |
| Inbussleutel | ||||
| 51 | 344161530 | 1.67 | 2.02 | |
| Holder | ||||
| 52 | 344099160 | 1.55 | 1.88 | |
| Splinterbeveiliging | ||||
| 53 | 343395480 | 1.55 | 1.88 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338506210 | |||
