Here you will find all available parts and drawings of the 'Metabo 02298420 (STA18LTX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

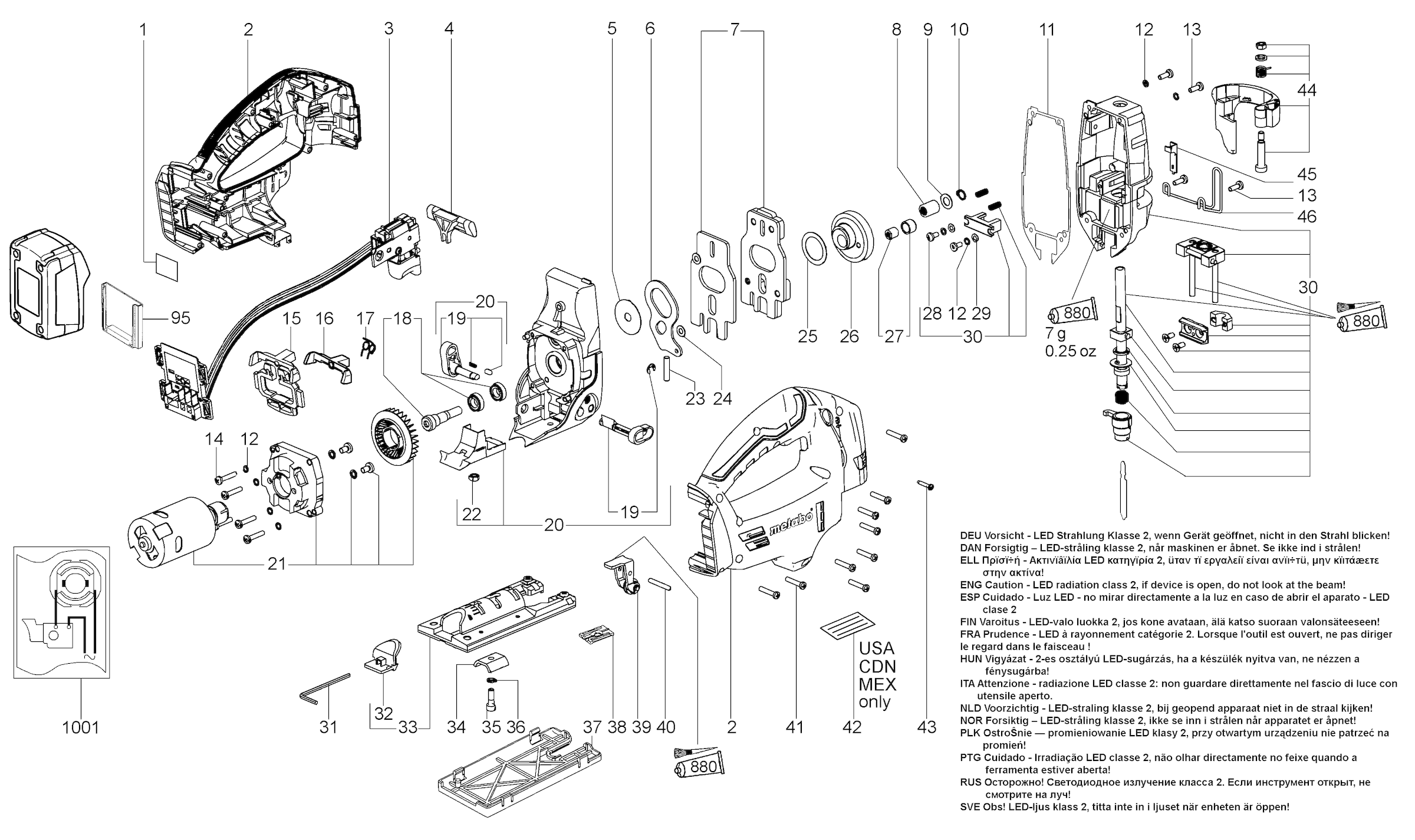

Technical drawing of model Metabo 02298420 (STA18LTX)
Spare parts list of model Metabo 02298420 (STA18LTX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Typeplaatje | ||||
| 1 | 338054170 | 1.56 | 1.89 | |
| Huis m.deksel | ||||
| 2 | 343398670 | 26.95 | 32.61 | |
| Electronic Switch, 18V | ||||
| 3 | 343409090 | 80.81 | 97.78 | |
| Schakelaarvergrendeling | ||||
| 4 | 343398760 | 1.56 | 1.89 | |
| Washer | ||||
| 5 | 141156460 | 1.56 | 1.89 | |
| Drukhendel | ||||
| 6 | 339134850 | 4.51 | 5.46 | |
| Balancing Plate | ||||
| 7 | 316047780 | 13.48 | 16.31 | |
| Naaldlager | ||||
| 8 | 143115320 | 3.71 | 4.49 | |
| Washer | ||||
| 9 | 141156000 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 10 | 141180020 | 1.56 | 1.89 | |
| Gasket | ||||
| 11 | 339210940 | 1.68 | 2.03 | |
| Spring washer | ||||
| 12 | 141150260 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 13 | 141113040 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 14 | 141113050 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 15 | 343394790 | 1.56 | 1.89 | |
| Pressure plate | ||||
| 16 | 343394770 | 1.56 | 1.89 | |
| Thrust Spring | ||||
| 17 | 342021670 | 1.56 | 1.89 | |
| Tandwielas compl. | ||||
| 18 | 316047770 | 16.25 | 19.66 | |
| Hendel compl. | ||||
| 19 | 316047790 | 5.87 | 7.10 | |
| Tandwielhuis compl. | ||||
| 20 | 316047750 | 48.48 | 58.66 | |
| Motor compl. | ||||
| 21 | 316047710 | 100.74 | 121.90 | |
| Zeskante moer | ||||
| 22 | 141130090 | 1.56 | 1.89 | |
| Cilinderstift | ||||
| 23 | 341513860 | 1.56 | 1.89 | |
| Washer | ||||
| 24 | 141150920 | 1.56 | 1.89 | |
| Washer | ||||
| 25 | 141156470 | 1.56 | 1.89 | |
| Gear wheel | ||||
| 26 | 340012690 | 18.80 | 22.75 | |
| Complete Needle Bearing | ||||
| 27 | 316047760 | 5.18 | 6.27 | |
| Fillister head screw | ||||
| 28 | 141119850 | 1.56 | 1.89 | |
| Washer | ||||
| 29 | 141151860 | 1.56 | 1.89 | |
| Tandwieldeksel compl. | ||||
| 30 | 316047730 | 74.13 | 89.70 | |
| Inbussleutel | ||||
| 31 | 344161530 | 1.68 | 2.03 | |
| Sleutelhouder | ||||
| 32 | 344098780 | 2.28 | 2.76 | |
| Voetplaat compl. | ||||
| 33 | 316047330 | 13.48 | 16.31 | |
| Clamping claw | ||||
| 34 | 339134840 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 35 | 141113690 | 1.68 | 2.03 | |
| Spring washer | ||||
| 36 | 141150270 | 1.56 | 1.89 | |
| Glijschoen | ||||
| 37 | 343375130 | 4.51 | 5.46 | |
| Splinterbeveiliging | ||||
| 38 | 343395480 | 1.56 | 1.89 | |
| Steunhendel compl. | ||||
| 39 | 316047740 | 10.38 | 12.56 | |
| Cilinderstift | ||||
| 40 | 141163320 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 41 | 141116800 | 1.56 | 1.89 | |
| Serial Indicator Plate 40x14 | ||||
| 42 | 338121750 | 1.56 | 1.89 | |
| Parafuso auto atarraxante | ||||
| 43 | 141123880 | 1.56 | 1.89 | |
| Spanhendel | ||||
| 44 | 316047720 | 10.38 | 12.56 | |
| Cover | ||||
| 45 | 343399500 | 1.56 | 1.89 | |
| Beschermbeugel | ||||
| 46 | 342200660 | 2.28 | 2.76 | |
| Cover cap | ||||
| 95 | 343439680 | 1.56 | 1.89 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130990 | 24.23 | 29.32 | |
| No information available, not orderable | ||||
| 1001 | 338504870 | |||
