Here you will find all available parts and drawings of the 'Metabo 02298000 ( STA18LTX )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

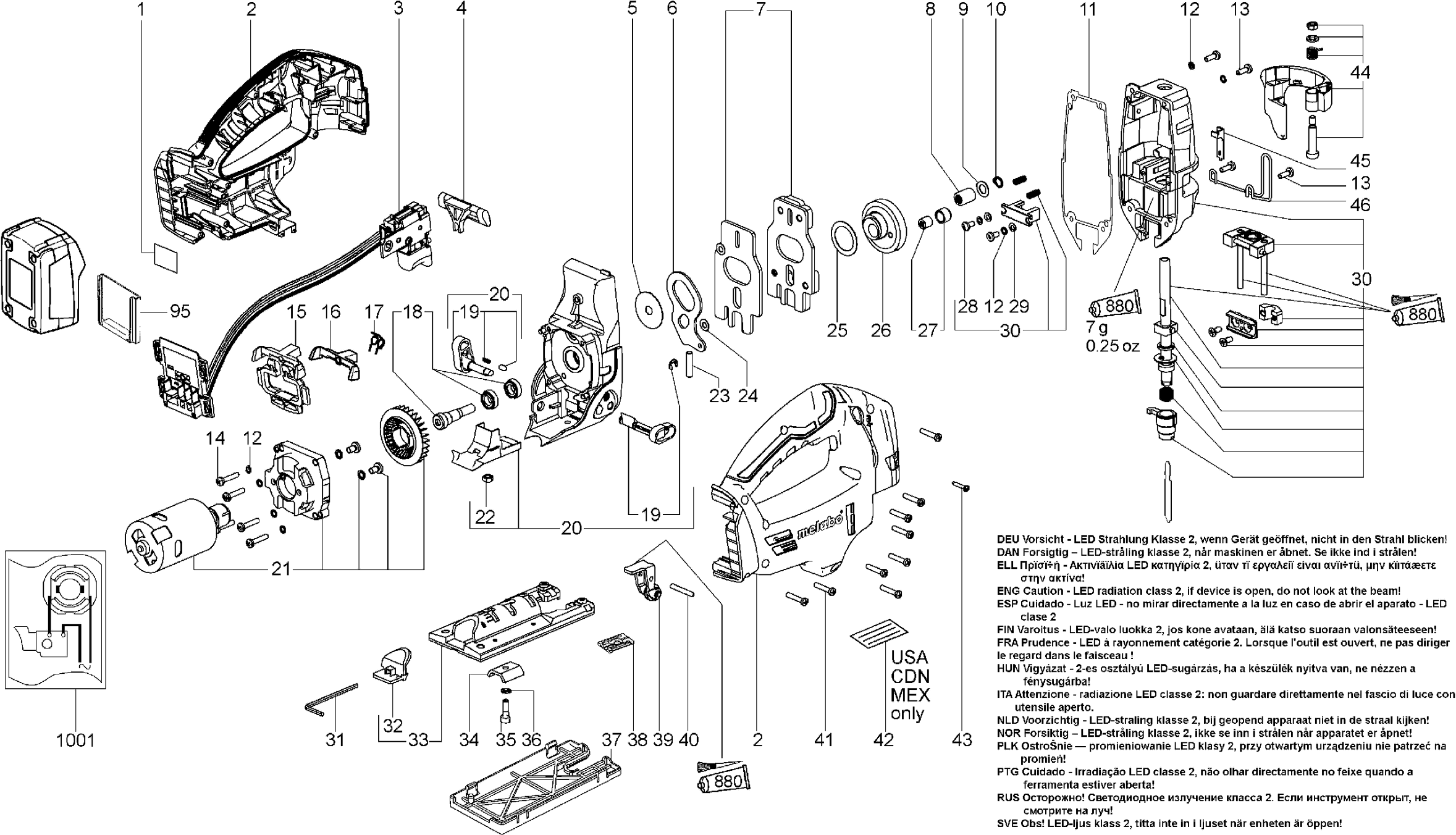

Technical drawing of model Metabo 02298000 ( STA18LTX )

Spare parts list of model Metabo 02298000 ( STA18LTX )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Typeplaatje
1 338054170 1.55 1.88
Huis m.deksel
2 343398670 26.95 32.61
Electronic Switch, 18V
3 343409090 80.81 97.78
Schakelaarvergrendeling
4 343398760 1.55 1.88
Washer
5 141156460 1.55 1.88
Drukhendel
6 339134850 4.51 5.46
Balancing Plate
7 316047780 13.48 16.31
Naaldlager
8 143115320 3.71 4.49
Washer
9 141156000 1.55 1.88
Retaining ring
10 141180020 1.55 1.88
Gasket
11 339210940 1.67 2.02
Spring washer
12 141150260 1.55 1.88
Fillister head screw
13 141113040 1.55 1.88
Fillister head screw
14 141113050 1.55 1.88
Schakelschuif
15 343394790 1.55 1.88
Pressure plate
16 343394770 1.55 1.88
Thrust Spring
17 342021670 1.55 1.88
Tandwielas compl.
18 316047770 16.25 19.66
Hendel compl.
19 316047790 5.87 7.10
Tandwielhuis compl.
20 316047750 48.48 58.66
Motor compl.
21 316047710 100.74 121.90
Zeskante moer
22 141130090 1.55 1.88
Cilinderstift
23 341513860 1.55 1.88
Washer
24 141150920 1.55 1.88
Washer
25 141156470 1.55 1.88
Gear wheel
26 340012690 18.80 22.75
Complete Needle Bearing
27 316047760 5.18 6.27
Fillister head screw
28 141119850 1.55 1.88
Washer
29 141151860 1.55 1.88
Tandwieldeksel compl.
30 316047730 74.13 89.70
Inbussleutel
31 344161530 1.67 2.02
Sleutelhouder
32 344098780 2.28 2.76
Voetplaat compl.
33 316047330 13.48 16.31
Clamping claw
34 339134840 1.55 1.88
Cilinderkopschroef
35 141113690 1.67 2.02
Spring washer
36 141150270 1.55 1.88
Glijschoen
37 343375130 4.51 5.46
Splinterbeveiliging
38 343395480 1.55 1.88
Steunhendel compl.
39 316047740 10.38 12.56
Cilinderstift
40 141163320 1.55 1.88
Self-tap. fill. h. screw
41 141116800 1.55 1.88
No information available, not orderable
42 399999990
Parafuso auto atarraxante
43 141123880 1.55 1.88
Spanhendel
44 316047720 10.38 12.56
Cover
45 343399500 1.55 1.88
Beschermbeugel
46 342200660 2.28 2.76
Cover cap
95 343439680 1.55 1.88
Grease tube 50 gr. 1,8oz
880 344130990 24.23 29.32
No information available, not orderable
1001 338504870
