Here you will find all available parts and drawings of the 'Metabo 01405000 ( STA18LTX140 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

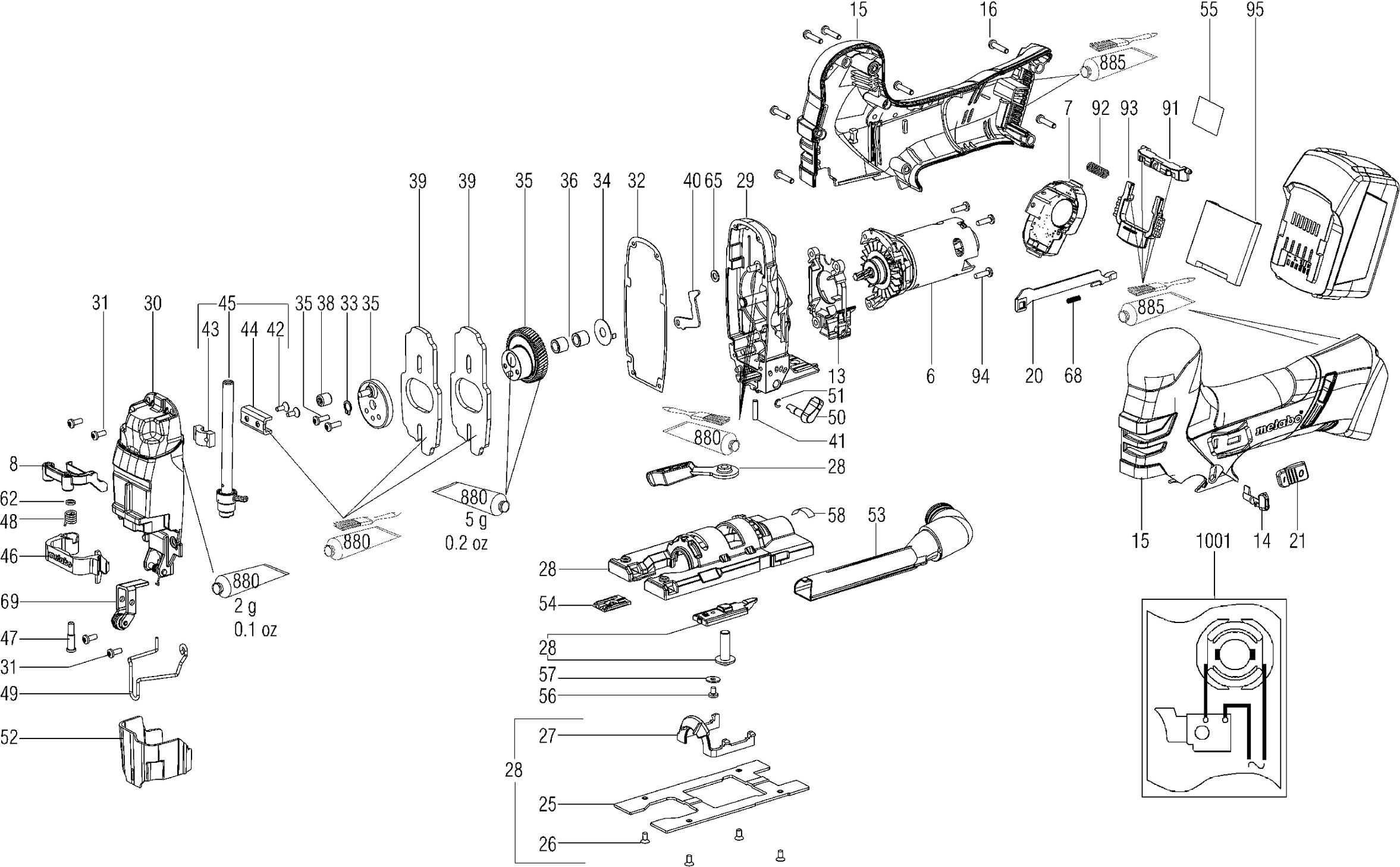

Technical drawing of model Metabo 01405000 ( STA18LTX140 )
Spare parts list of model Metabo 01405000 ( STA18LTX140 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete Motor, 18V | ||||
| 6 | 316050850 | 121.19 | 146.64 | |
| Electronic Unit, 18v | ||||
| 7 | 343082730 | 107.70 | 130.32 | |
| LED with cable | ||||
| 8 | 343082590 | 8.89 | 10.76 | |
| Luchtgeleidingsschijf | ||||
| 13 | 343430280 | 1.67 | 2.02 | |
| Schakelhendel | ||||
| 14 | 343399730 | 1.55 | 1.88 | |
| Huis m.deksel | ||||
| 15 | 343430830 | 21.64 | 26.18 | |
| Self-tap fill h screw | ||||
| 16 | 141116020 | 1.67 | 2.02 | |
| Schakelstang | ||||
| 20 | 343431020 | 2.28 | 2.76 | |
| Schakelschuif | ||||
| 21 | 343431070 | 1.67 | 2.02 | |
| Base plate | ||||
| 22 | 316063740 | 48.48 | 58.66 | |
| Bodemplaat | ||||
| 25 | 339134980 | 5.87 | 7.10 | |
| Countersunk screw | ||||
| 26 | 141122860 | 1.55 | 1.88 | |
| Connector housing | ||||
| 27 | 343430560 | 1.55 | 1.88 | |
| Grondplaat | ||||
| 28 | 316065980 | 37.65 | 45.56 | |
| Tandwielhuis compl. | ||||
| 29 | 316050320 | 67.33 | 81.47 | |
| Complete Gearbox Cover | ||||
| 30 | 316050330 | 107.70 | 130.32 | |
| Fillister head screw | ||||
| 31 | 141110540 | 1.55 | 1.88 | |
| Gasket | ||||
| 32 | 339011920 | 1.55 | 1.88 | |
| Retaining ring | ||||
| 33 | 141180020 | 1.55 | 1.88 | |
| Aanloopring | ||||
| 34 | 339129470 | 1.55 | 1.88 | |
| Aandrijving compl. | ||||
| 35 | 316055650 | 48.48 | 58.66 | |
| Naaldlager | ||||
| 36 | 143113930 | 3.02 | 3.65 | |
| Needle bearing | ||||
| 38 | 341002610 | 12.23 | 14.80 | |
| Balanceerplaat | ||||
| 39 | 339160910 | 5.87 | 7.10 | |
| Drukhendel | ||||
| 40 | 339160920 | 1.55 | 1.88 | |
| Cilinderstift | ||||
| 41 | 141162570 | 1.67 | 2.02 | |
| Platverzonken schroef | ||||
| 42 | 141120550 | 1.55 | 1.88 | |
| Passing screw | ||||
| 42 | 341705590 | 1.55 | 1.88 | |
| Verbindingsstuk | ||||
| 43 | 341070310 | 2.28 | 2.76 | |
| Connecting link | ||||
| 44 | 339129450 | 1.67 | 2.02 | |
| Zaagas compl. | ||||
| 45 | 316050340 | 60.59 | 73.31 | |
| Tension Lever, Quick | ||||
| 46 | 315417740 | 7.22 | 8.74 | |
| Passchroef | ||||
| 47 | 341704600 | 1.67 | 2.02 | |
| Spring clip | ||||
| 48 | 342022260 | 1.55 | 1.88 | |
| Beschermbeugel | ||||
| 49 | 342200670 | 1.67 | 2.02 | |
| Schakelhendel compl. | ||||
| 50 | 316048510 | 7.22 | 8.74 | |
| Ring halvemaan | ||||
| 51 | 141156580 | 1.55 | 1.88 | |
| Oogbeschermglas | ||||
| 52 | 344350470 | 2.28 | 2.76 | |
| Extraction Kit | ||||
| 53 | 316051780 | 26.95 | 32.61 | |
| Splinterbeveiliging | ||||
| 54 | 343395480 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 55 | 338057000 | 1.55 | 1.88 | |
| Screw | ||||
| 56 | 341704830 | 1.55 | 1.88 | |
| Scale Plate | ||||
| 58 | 338123510 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 61 | 141119860 | 1.67 | 2.02 | |
| Washer | ||||
| 62 | 339134390 | 1.55 | 1.88 | |
| Washer | ||||
| 65 | 339007600 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 68 | 342001160 | 1.55 | 1.88 | |
| Support lever compl. | ||||
| 69 | 316069010 | 11.74 | 14.21 | |
| Vergrendelstuk | ||||
| 91 | 343430520 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 92 | 342003030 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 93 | 343430530 | 1.67 | 2.02 | |
| Lensschroef | ||||
| 94 | 141124090 | 1.55 | 1.88 | |
| Cover cap | ||||
| 95 | 343439680 | 1.55 | 1.88 | |
| Tube vet 50 gr. 1,8oz | ||||
| 880 | 344131280 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 1001 | 338505590 | |||
