Here you will find all available parts and drawings of the 'Metabo 04000000 (ST50PENDIX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

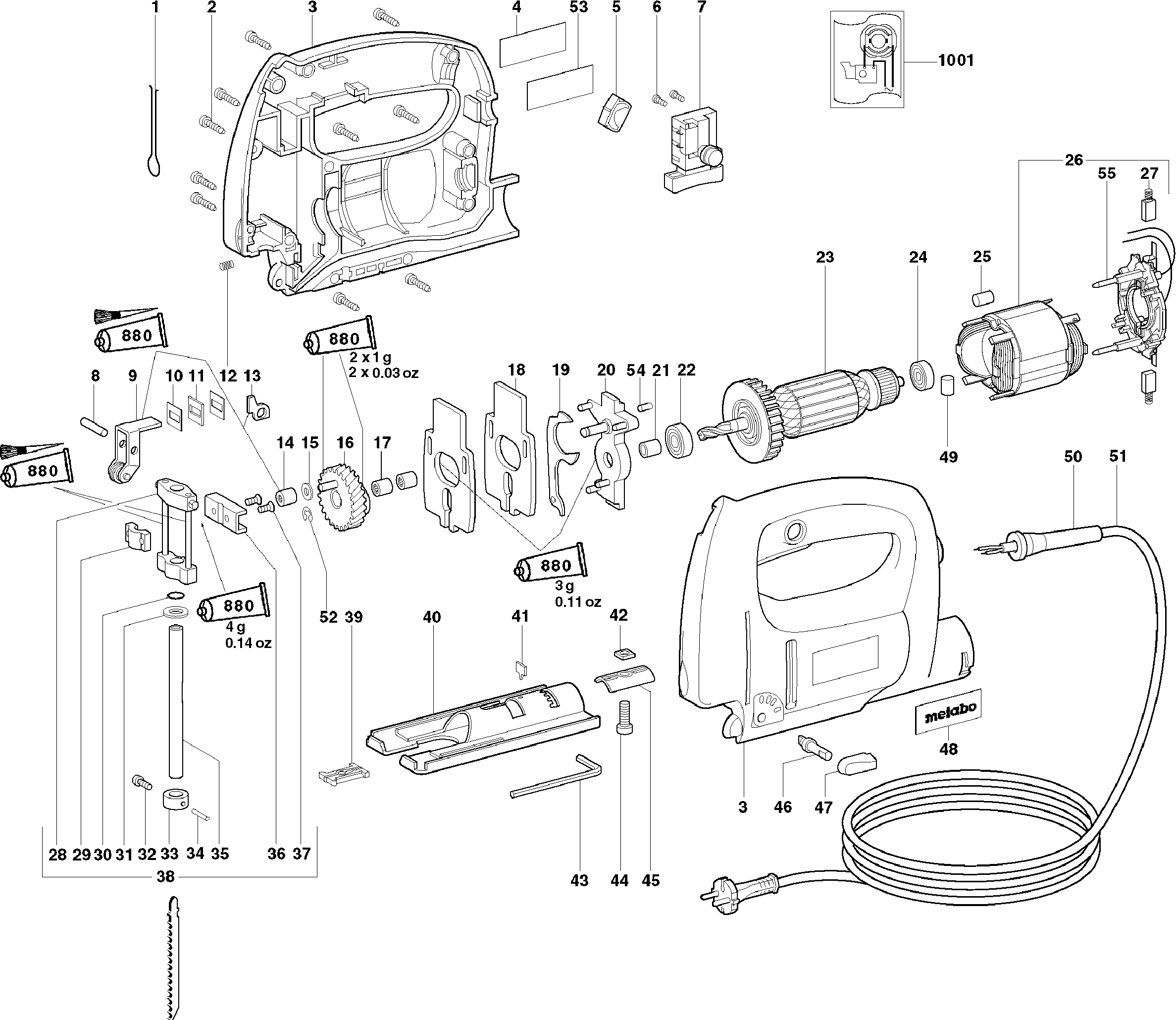

Technical drawing of model Metabo 04000000 (ST50PENDIX)
Spare parts list of model Metabo 04000000 (ST50PENDIX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 342200570 | |||
| Self-tap fill h screw | ||||
| 2 | 141116020 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 3 | 316030450 | |||
| No information available, not orderable | ||||
| 4 | 338037850 | |||
| No information available, not orderable | ||||
| 5 | 343375010 | |||
| Fillister head screw | ||||
| 6 | 141116970 | 1.79 | 2.17 | |
| Pressure Switch Black | ||||
| 7 | 343408920 | 7.58 | 9.17 | |
| Cilinderstift | ||||
| 8 | 341513860 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 9 | 316029880 | |||
| No information available, not orderable | ||||
| 10 | 339120500 | |||
| No information available, not orderable | ||||
| 11 | 344070040 | |||
| Pressure spring | ||||
| 12 | 342021680 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 13 | 339129320 | |||
| Needle bearing | ||||
| 14 | 341002610 | 13.93 | 16.86 | |
| No information available, not orderable | ||||
| 15 | 339125490 | |||
| No information available, not orderable | ||||
| 16 | 316030080 | |||
| Naaldlager | ||||
| 17 | 143111430 | 5.49 | 6.64 | |
| No information available, not orderable | ||||
| 18 | 339129290 | |||
| Pressure spring | ||||
| 19 | 339129360 | 9.36 | 11.33 | |
| No information available, not orderable | ||||
| 20 | 316030090 | |||
| Sealing bush | ||||
| 21 | 343380060 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 22 | 143113400 | |||
| No information available, not orderable | ||||
| 23 | 310007910 | |||
| Kogellager 6x19x 6 | ||||
| 24 | 143115660 | 2.43 | 2.94 | |
| Rubber prop | ||||
| 25 | 344092550 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 26 | 316030120 | |||
| No longer available, no replacement | ||||
| 27 | 316033960 | |||
| No information available, not orderable | ||||
| 28 | 316032560 | |||
| Verbindingsstuk | ||||
| 29 | 341070310 | 3.89 | 4.71 | |
| No information available, not orderable | ||||
| 30 | 143194700 | |||
| No information available, not orderable | ||||
| 31 | 339010520 | |||
| Cap screw | ||||
| 32 | 141119160 | 1.79 | 2.17 | |
| Clamping piece | ||||
| 33 | 344600340 | 9.36 | 11.33 | |
| Tightening pin | ||||
| 34 | 141160810 | 1.79 | 2.17 | |
| No longer available, no replacement | ||||
| 35 | 341056120 | |||
| Connecting link | ||||
| 36 | 339129450 | 1.79 | 2.17 | |
| Platverzonken schroef | ||||
| 37 | 141120550 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 38 | 316030260 | |||
| Splinterbeveiliging | ||||
| 39 | 343395480 | 1.67 | 2.02 | |
| Complete Base Plate | ||||
| 40 | 316029620 | 13.93 | 16.86 | |
| Positioning Plate | ||||
| 41 | 339129310 | 1.67 | 2.02 | |
| Vierkante moer | ||||
| 42 | 141131370 | 1.67 | 2.02 | |
| Inbussleutel | ||||
| 43 | 344161530 | 1.79 | 2.17 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 44 | 141152300 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 45 | 339005620 | |||
| No information available, not orderable | ||||
| 46 | 341055860 | |||
| Shift lever | ||||
| 47 | 316030140 | 5.49 | 6.64 | |
| No information available, not orderable | ||||
| 48 | 338114820 | |||
| Rubber stop | ||||
| 49 | 344091420 | 1.67 | 2.02 | |
| Kabelbescherming | ||||
| 50 | 344101140 | 2.43 | 2.94 | |
| Cable with CEE plug | ||||
| 51 | 344485880 | 13.93 | 16.86 | |
| Borgschijf | ||||
| 52 | 141181810 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 53 | 399999990 | |||
| Rubberen stop | ||||
| 54 | 344097580 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 55 | 316030310 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 64.44 | 77.97 | |
| No information available, not orderable | ||||
| 1001 | 338502370 | |||
