Here you will find all available parts and drawings of the 'Metabo 02205000 ( SSW18LTX400BL )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

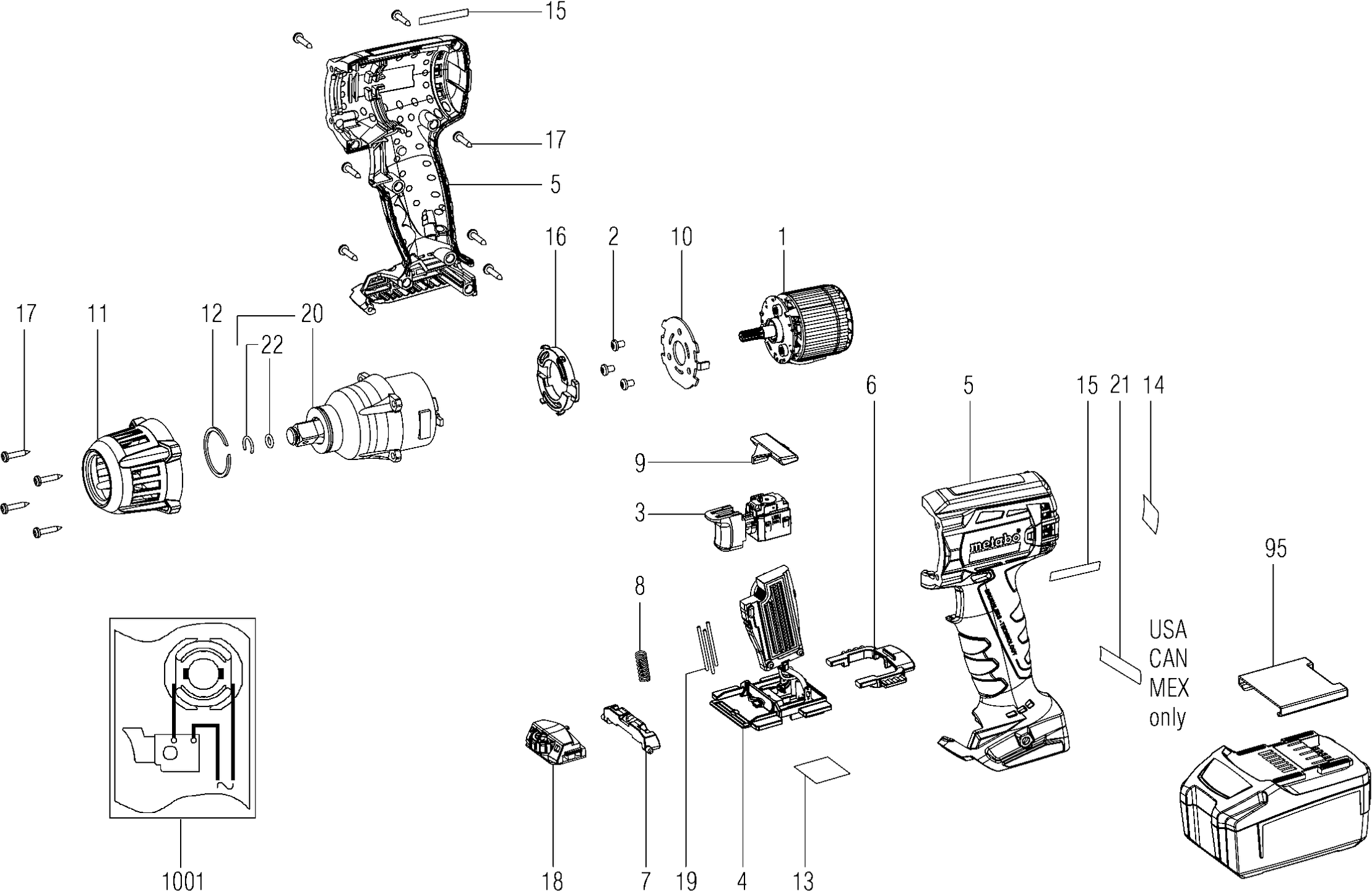

Technical drawing of model Metabo 02205000 ( SSW18LTX400BL )
Spare parts list of model Metabo 02205000 ( SSW18LTX400BL )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor compl. | ||||
| 1 | 317004800 | 187.73 | 227.15 | |
| Fillister head screw | ||||
| 2 | 141122220 | 1.67 | 2.02 | |
| Potentioschakelaar | ||||
| 3 | 343410550 | 18.80 | 22.75 | |
| Elektro.unit compl.,BLDC | ||||
| 4 | 343083230 | 148.53 | 179.72 | |
| Huis m.deksel | ||||
| 5 | 343433990 | 21.64 | 26.18 | |
| Locking slide | ||||
| 6 | 343433300 | 2.28 | 2.76 | |
| Vergrendelstuk | ||||
| 7 | 343430520 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 8 | 342003030 | 1.55 | 1.88 | |
| Schakelschuif ,R/L | ||||
| 9 | 343433260 | 1.55 | 1.88 | |
| Motorflens | ||||
| 10 | 339136590 | 3.71 | 4.49 | |
| Sleeve | ||||
| 11 | 343435910 | 5.87 | 7.10 | |
| Circlip | ||||
| 12 | 141156680 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 13 | 338061590 | 1.55 | 1.88 | |
| Identification plate | ||||
| 14 | 338129940 | 1.67 | 2.02 | |
| Indicator label | ||||
| 14 | 338124500 | 1.55 | 1.88 | |
| Typeplaatje,SSW 18 LTX 400 BL | ||||
| 15 | 338124750 | 1.55 | 1.88 | |
| Flange | ||||
| 16 | 343436600 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 17 | 141113180 | 1.55 | 1.88 | |
| Stelwiel compl. | ||||
| 18 | 343083980 | 11.74 | 14.21 | |
| glas hose | ||||
| 19 | 135190610 | 1.55 | 1.88 | |
| Insulation hose | ||||
| 19 | 339040970 | 1.55 | 1.88 | |
| Aandrijving compl. | ||||
| 20 | 316053720 | 107.70 | 130.32 | |
| Aanduidingsplaatje,Warning | ||||
| 21 | 338124510 | 1.55 | 1.88 | |
| Ring m. O-ring | ||||
| 22 | 316067390 | 1.55 | 1.88 | |
| Cover cap | ||||
| 95 | 343439680 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 1001 | 338505840 | |||
