Here you will find all available parts and drawings of the 'Metabo 06178002 (SSEP1400MVT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

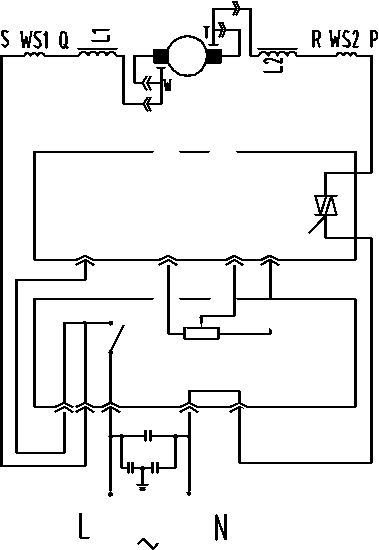

Technical drawing of model Metabo 06178002 (SSEP1400MVT)
Spare parts list of model Metabo 06178002 (SSEP1400MVT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Kabel m. stekker | ||||
| 1 | 344530440 | 41.32 | 50.00 | |
| Kabelbescherming | ||||
| 2 | 344113370 | 2.43 | 2.94 | |
| Kabelbescherming | ||||
| 3 | 344113380 | 1.79 | 2.17 | |
| Self-tap. fill. h. screw | ||||
| 4 | 141116800 | 1.67 | 2.02 | |
| CABLE CLAMP | ||||
| 5 | 343442950 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 8 | 341722430 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 9 | 343442970 | 52.36 | 63.36 | |
| Terminal | ||||
| 12 | 343085460 | 1.67 | 2.02 | |
| Smoorspoel | ||||
| 13 | 343254990 | 5.49 | 6.64 | |
| Self-tap. fill. h. screw | ||||
| 14 | 341722440 | 1.67 | 2.02 | |
| Koolborstel set | ||||
| 15 | 316093540 | 15.31 | 18.53 | |
| Brush Cover | ||||
| 16 | 344113390 | 4.78 | 5.78 | |
| Zeskante moer | ||||
| 17 | 141130070 | 1.67 | 2.02 | |
| Place screw M.crosshead | ||||
| 18 | 141124560 | 1.67 | 2.02 | |
| Field | ||||
| 21 | 311012450 | 57.79 | 69.93 | |
| Self-tap. fill. h. screw | ||||
| 22 | 341722450 | 1.67 | 2.02 | |
| Blank faceplate | ||||
| 23 | 343443000 | 1.79 | 2.17 | |
| Bearing sleeve | ||||
| 24 | 320054180 | 1.67 | 2.02 | |
| Kogellager | ||||
| 27 | 320054190 | 3.20 | 3.87 | |
| Kogellager | ||||
| 34 | 320054200 | 4.78 | 5.78 | |
| Self-tap. fill. h. screw with disc | ||||
| 37 | 341722460 | 1.67 | 2.02 | |
| Washer | ||||
| 38 | 341109030 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw with disc | ||||
| 39 | 341722470 | 1.67 | 2.02 | |
| Kogellager | ||||
| 41 | 320054210 | 4.78 | 5.78 | |
| Ring (airproof) | ||||
| 42 | 341166180 | 1.67 | 2.02 | |
| Aandrijving | ||||
| 45 | 341166110 | 41.32 | 50.00 | |
| Gear housing | ||||
| 47 | 315105960 | 27.16 | 32.86 | |
| Kogellager | ||||
| 48 | 320054220 | 5.49 | 6.64 | |
| Rubber huls | ||||
| 55 | 344113400 | 57.79 | 69.93 | |
| Supporting Angle | ||||
| 62 | 339148100 | 9.36 | 11.33 | |
| Cover (f. bearing) | ||||
| 63 | 344113410 | 1.79 | 2.17 | |
| Screw | ||||
| 64 | 341722490 | 1.67 | 2.02 | |
| Transformation ring | ||||
| 65 | 341166120 | 18.28 | 22.12 | |
| AANSLUITKABEL | ||||
| 66 | 344530500 | 12.19 | 14.75 | |
| Middle cover | ||||
| 67 | 344113420 | 4.78 | 5.78 | |
| Tegengewicht | ||||
| 68 | 339148110 | 27.16 | 32.86 | |
| Washer | ||||
| 69 | 339009380 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw with disc | ||||
| 70 | 341722480 | 1.67 | 2.02 | |
| Pressure plate | ||||
| 71 | 339148120 | 1.67 | 2.02 | |
| Pressure plate cpl. | ||||
| 72 | 339148130 | 13.93 | 16.86 | |
| Bearing block | ||||
| 73 | 339013010 | 7.58 | 9.17 | |
| Tandwielas | ||||
| 74 | 341166140 | 35.72 | 43.22 | |
| Naaldlager | ||||
| 75 | 320054230 | 12.19 | 14.75 | |
| Gasket | ||||
| 92 | 339012540 | 3.20 | 3.87 | |
| Pressure spring | ||||
| 93 | 342010930 | 1.67 | 2.02 | |
| Ring | ||||
| 96 | 339012550 | 1.67 | 2.02 | |
| Schroef compl. | ||||
| 97 | 316093660 | 1.67 | 2.02 | |
| sealing ring | ||||
| 98 | 342024160 | 1.67 | 2.02 | |
| Shaft | ||||
| 100 | 341166160 | 2.43 | 2.94 | |
| Screw | ||||
| 101 | 341722500 | 1.67 | 2.02 | |
| Ring (airproof) | ||||
| 102 | 341166170 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 103 | 338065190 | 1.67 | 2.02 | |
| Hoek compl. | ||||
| 104 | 316097180 | 35.72 | 43.22 | |
| Plunger compl. | ||||
| 105 | 316076500 | 64.44 | 77.97 | |
| Washer | ||||
| 112 | 341722780 | 1.67 | 2.02 | |
| Huis compl. | ||||
| 201 | 316093550 | 18.28 | 22.12 | |
| Anker compl. | ||||
| 202 | 310011870 | 136.98 | 165.75 | |
| Grondplaat | ||||
| 203 | 316093560 | 18.28 | 22.12 | |
| Rotor assembly kit | ||||
| 204 | 310150070 | 35.72 | 43.22 | |
| No information available, not orderable | ||||
| 207 | 316076510 | |||
| Bevestigingsset cpl. | ||||
| 208 | 316093570 | 4.78 | 5.78 | |
| Complete support angle | ||||
| 209 | 316093580 | 9.36 | 11.33 | |
| Omschakelaar compl. | ||||
| 212 | 316093650 | 7.58 | 9.17 | |
| Spanhendel | ||||
| 213 | 316093590 | 4.78 | 5.78 | |
| Elektronica | ||||
| 214 | 316096630 | 83.19 | 100.66 | |
| Gear Housing | ||||
| 215 | 316076490 | 175.78 | 212.69 | |
| HOUSING, COMPLETE | ||||
| 215 | 316076520 | 111.19 | 134.54 | |
| No information available, not orderable | ||||
| 1001 | 338510140 | |||
