Here you will find all available parts and drawings of the 'Metabo 02366000 (SSE18LTXBLCompact)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

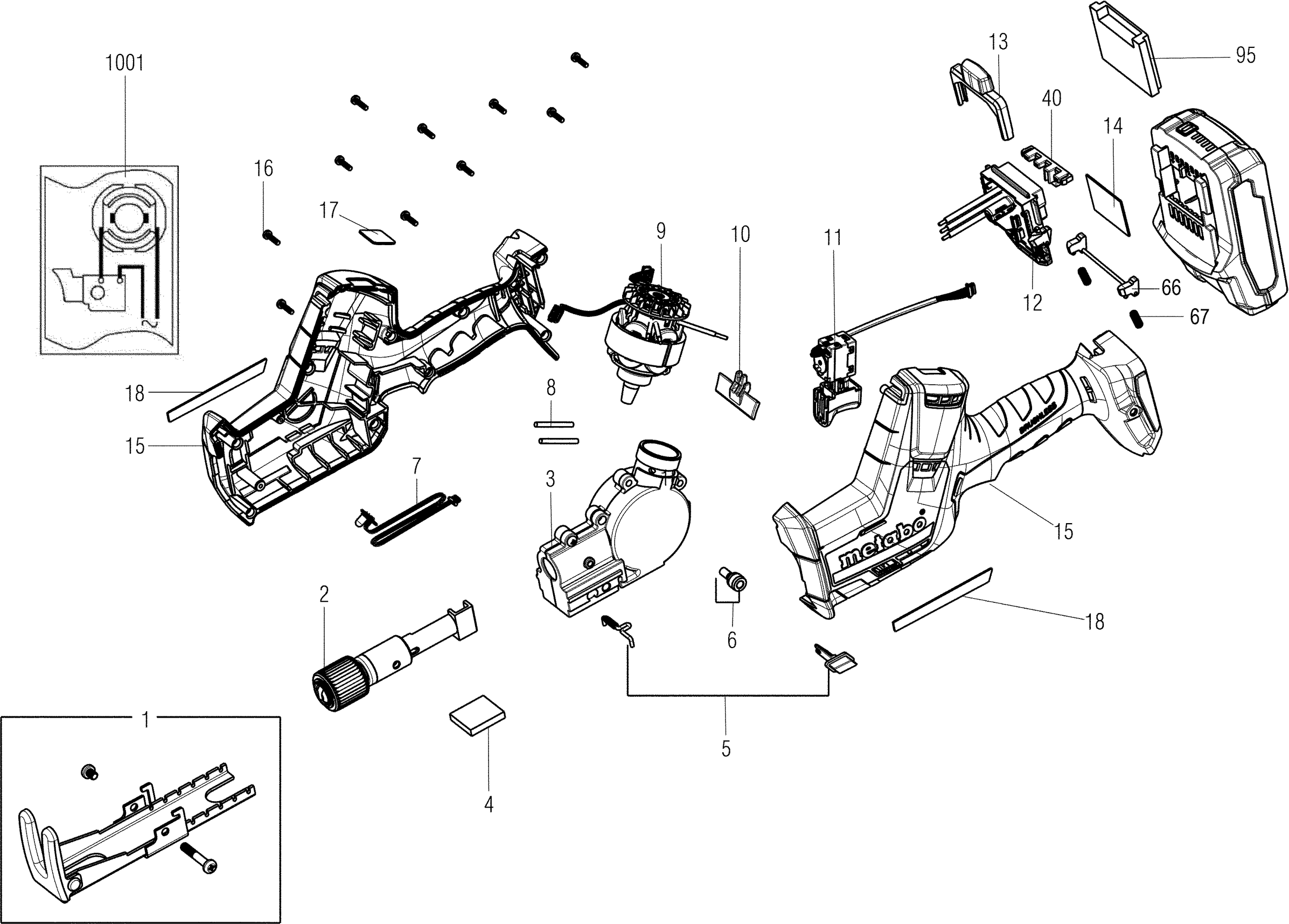

Technical drawing of model Metabo 02366000 (SSE18LTXBLCompact)
Spare parts list of model Metabo 02366000 (SSE18LTXBLCompact)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Complete depth guide | ||||
| 1 | 316098420 | 12.23 | 14.80 | |
| Complete Pusher | ||||
| 2 | 316098400 | 43.15 | 52.21 | |
| Drive | ||||
| 3 | 341167180 | 53.86 | 65.17 | |
| FELT | ||||
| 4 | 344071180 | 1.56 | 1.89 | |
| Blocking complete. | ||||
| 5 | 316098410 | 3.71 | 4.49 | |
| NEEDLE BEARING | ||||
| 6 | 320054590 | 4.51 | 5.46 | |
| Complete Electrical Unit | ||||
| 7 | 316097940 | 4.51 | 5.46 | |
| Cylindrical pin | ||||
| 8 | 341519670 | 1.56 | 1.89 | |
| Motor complete | ||||
| 9 | 316098860 | 80.81 | 97.78 | |
| Ch-over switch TXS Li | ||||
| 10 | 343448150 | 1.56 | 1.89 | |
| DC switch, complete | ||||
| 11 | 343411770 | 18.00 | 21.78 | |
| Potentiometer Switch | ||||
| 11 | 343412640 | 11.74 | 14.21 | |
| Electric unit | ||||
| 12 | 343087880 | 100.74 | 121.90 | |
| Vastzetschuif | ||||
| 13 | 343447510 | 1.56 | 1.89 | |
| Type plate HK 85 EB 230V | ||||
| 14 | 338072280 | 2.28 | 2.76 | |
| Motor Housing | ||||
| 15 | 343450380 | 16.25 | 19.66 | |
| Screw, ST2,9x13 | ||||
| 16 | 341704710 | 1.56 | 1.89 | |
| Identification plate, CAS | ||||
| 17 | 338129960 | 1.68 | 2.03 | |
| Type plate HK 85 EB 230V | ||||
| 18 | 338131250 | 2.28 | 2.76 | |
| Insert element | ||||
| 40 | 343447010 | 1.56 | 1.89 | |
| Locking device compl. | ||||
| 66 | 316066720 | 3.02 | 3.65 | |
| Compression spring | ||||
| 67 | 342004180 | 1.56 | 1.89 | |
| Heat shrink tubing | ||||
| 72 | 341213440 | 1.56 | 1.89 | |
| Cover cap | ||||
| 95 | 343439680 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 1001 | 338510320 | |||
