Here you will find all available parts and drawings of the 'Metabo 11351010 (SRE4351TurboTecBUND)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

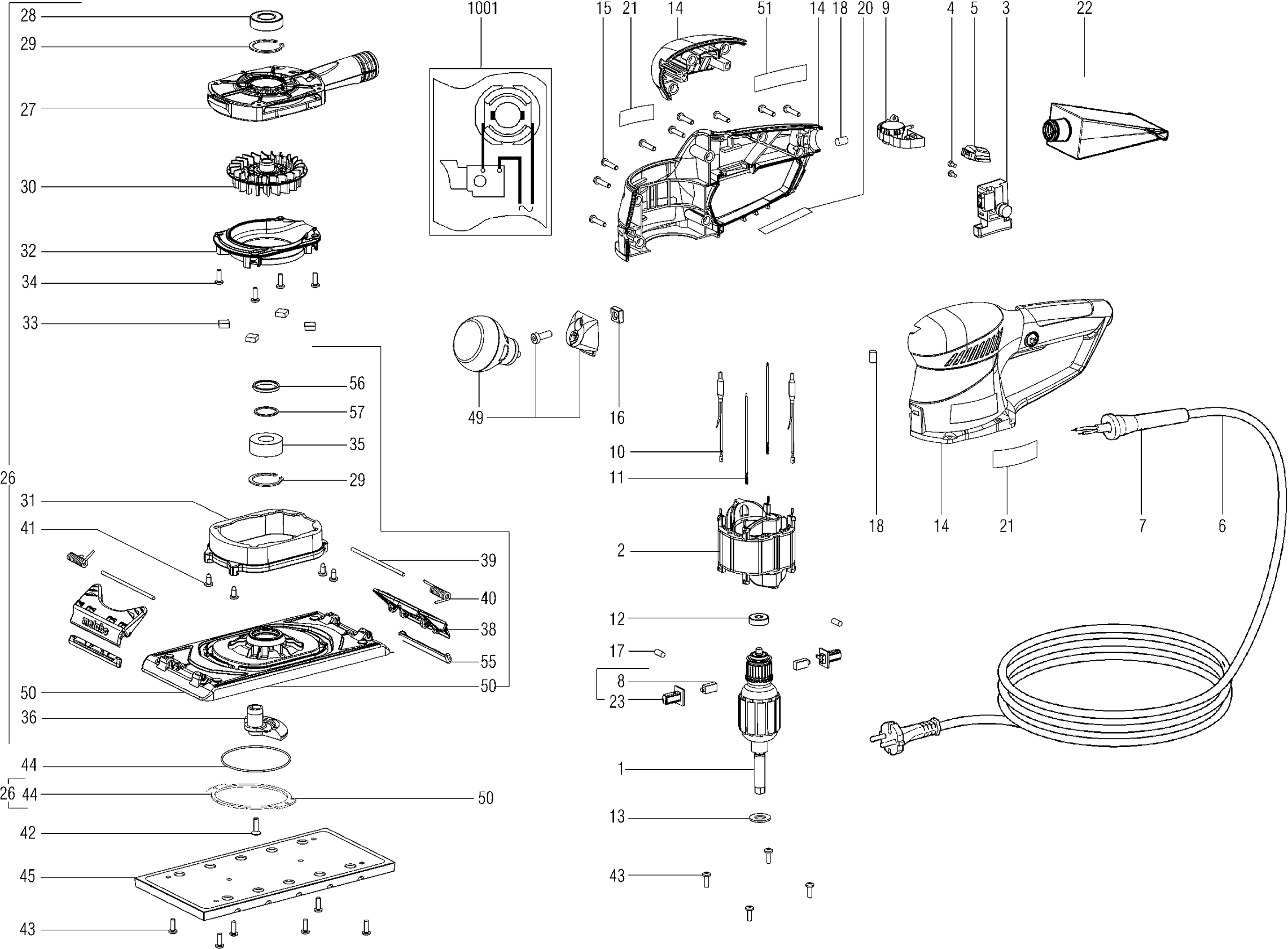

Technical drawing of model Metabo 11351010 (SRE4351TurboTecBUND)
Spare parts list of model Metabo 11351010 (SRE4351TurboTecBUND)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010200 | 67.33 | 81.47 | |
| Field package m.winding | ||||
| 2 | 311010520 | 48.48 | 58.66 | |
| Pressure Switch Red | ||||
| 3 | 343408910 | 7.22 | 8.74 | |
| Fillister head screw | ||||
| 4 | 141116970 | 1.68 | 2.03 | |
| Schakelaar | ||||
| 5 | 343408630 | 11.74 | 14.21 | |
| Kabel m. CEE-stekker | ||||
| 6 | 344493180 | 21.64 | 26.18 | |
| Kabeldoorvoer | ||||
| 7 | 344100970 | 1.68 | 2.03 | |
| Koolborstel set | ||||
| 8 | 316033670 | 11.74 | 14.21 | |
| Electronic unit,230V / 50 Hz | ||||
| 9 | 343080850 | 26.95 | 32.61 | |
| Smoorspoel | ||||
| 10 | 343254040 | 3.02 | 3.65 | |
| Connection wire set with plug | ||||
| 11 | 316071200 | 5.18 | 6.27 | |
| Ball bearing 6x19x6 | ||||
| 12 | 143115810 | 2.28 | 2.76 | |
| Scheibe | ||||
| 13 | 339011960 | 1.56 | 1.89 | |
| Housing with cover | ||||
| 14 | 343393300 | 32.27 | 39.05 | |
| Self-tap fill h screw | ||||
| 15 | 141116020 | 1.68 | 2.03 | |
| 4-knts moer | ||||
| 16 | 341102080 | 1.56 | 1.89 | |
| Rubber stop | ||||
| 17 | 344092220 | 1.56 | 1.89 | |
| Rubber stop | ||||
| 18 | 344091420 | 1.56 | 1.89 | |
| Type plate HK 85 EB 230V | ||||
| 20 | 338072820 | 1.67 | 2.02 | |
| Metabo plaatje | ||||
| 21 | 338122410 | 1.56 | 1.89 | |
| Dust bag | ||||
| 22 | 344101410 | 12.23 | 14.80 | |
| Koolborstel set | ||||
| 23 | 316033670 | 11.74 | 14.21 | |
| Base unit of large sander | ||||
| 26 | 316062700 | 213.88 | 258.79 | |
| Lagerflens | ||||
| 27 | 315417610 | 24.23 | 29.32 | |
| Ball bearing 15x32x9 | ||||
| 28 | 143110220 | 18.80 | 22.75 | |
| Ring | ||||
| 29 | 141180710 | 3.02 | 3.65 | |
| Waaier compl. | ||||
| 30 | 343430150 | 11.74 | 14.21 | |
| Manschette vollst. | ||||
| 31 | 344098930 | 10.38 | 12.56 | |
| Luchtgeleiderschijf | ||||
| 32 | 343430130 | 3.02 | 3.65 | |
| Felt | ||||
| 33 | 344070920 | 1.56 | 1.89 | |
| Fill. head screw | ||||
| 34 | 141120070 | 1.56 | 1.89 | |
| Schraegkugellager zweireihig, 15x32x13 | ||||
| 35 | 143115390 | 21.64 | 26.18 | |
| Large Counterweight | ||||
| 36 | 315417640 | 11.74 | 14.21 | |
| EINLEGEBLECH | ||||
| 37 | 339135710 | 1.56 | 1.89 | |
| Spanhendel | ||||
| 38 | 315417620 | 5.87 | 7.10 | |
| Scharnirpen | ||||
| 39 | 341520060 | 1.68 | 2.03 | |
| Spring clip | ||||
| 40 | 342022280 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 41 | 141116130 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 42 | 141122300 | 1.56 | 1.89 | |
| Fill. head screw | ||||
| 43 | 141120070 | 1.56 | 1.89 | |
| Pakkingset | ||||
| 44 | 316062650 | 16.25 | 19.66 | |
| Sanding base plate compl. large | ||||
| 45 | 339160990 | 26.95 | 32.61 | |
| Handgreep extra compl. | ||||
| 49 | 316067440 | 7.22 | 8.74 | |
| Trilplaat compl. | ||||
| 50 | 316062680 | 121.19 | 146.64 | |
| Rubberen kap | ||||
| 55 | 344099220 | 3.02 | 3.65 | |
| Washer | ||||
| 56 | 339007560 | 1.56 | 1.89 | |
| Felt ring | ||||
| 57 | 344070940 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 1001 | 338504640 | |||
