Here you will find all available parts and drawings of the 'Metabo 00358001 ( SR358 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

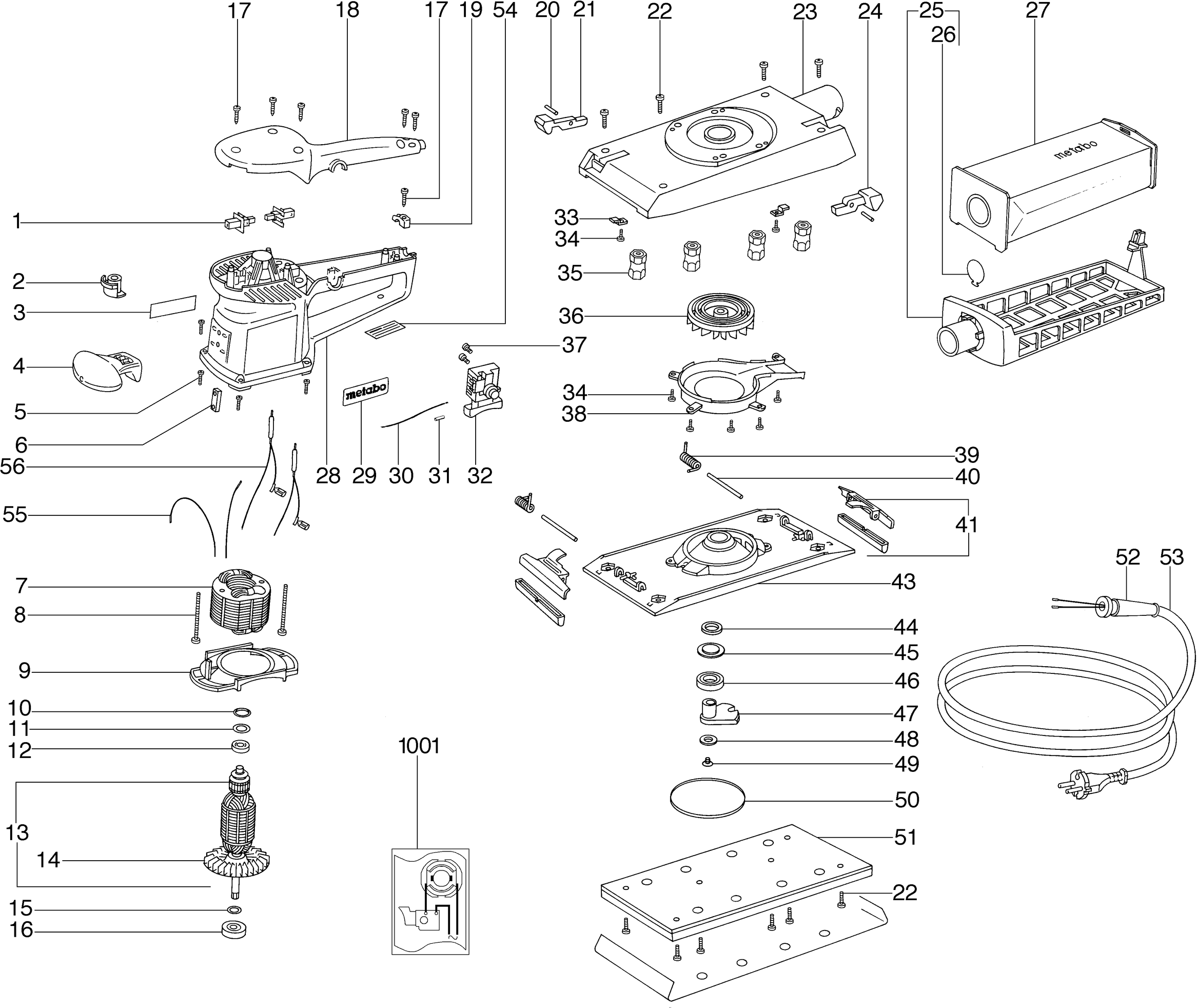

Technical drawing of model Metabo 00358001 ( SR358 )
Spare parts list of model Metabo 00358001 ( SR358 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Koolborstel set | ||||
| 1 | 316033670 | 11.74 | 14.21 | |
| Dummy plug | ||||
| 2 | 343371240 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 3 | 338034030 | 1.55 | 1.88 | |
| No longer available, no replacement | ||||
| 4 | 316025200 | |||
| Ball cylinder head Thread Form | ||||
| 5 | 141119440 | 1.55 | 1.88 | |
| Schroefdraadplaat | ||||
| 6 | 339127860 | 1.67 | 2.02 | |
| Field | ||||
| 7 | 311009670 | 48.48 | 58.66 | |
| Self-tap. fill. h. screw | ||||
| 8 | 141118820 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 9 | 343371250 | 3.02 | 3.65 | |
| O-ring | ||||
| 10 | 143191620 | 1.67 | 2.02 | |
| Washer | ||||
| 11 | 141153400 | 1.67 | 2.02 | |
| Ball bearing 6x19x6 | ||||
| 12 | 143115810 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 13 | 310007410 | 100.74 | 121.90 | |
| Fan | ||||
| 14 | 330001120 | 4.51 | 5.46 | |
| Washer | ||||
| 15 | 141152830 | 2.28 | 2.76 | |
| Kogellager 10x30x 9 | ||||
| 16 | 143115650 | 3.02 | 3.65 | |
| Self-tap fill h screw | ||||
| 17 | 141116020 | 1.67 | 2.02 | |
| Deksel v. huis | ||||
| 18 | 343371230 | 16.25 | 19.66 | |
| Cable clip | ||||
| 19 | 343362490 | 1.67 | 2.02 | |
| Cilinderstift | ||||
| 20 | 141162570 | 1.67 | 2.02 | |
| Lever | ||||
| 21 | 343371450 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 22 | 141113220 | 1.55 | 1.88 | |
| Lagerflens compl. | ||||
| 23 | 316025950 | 67.33 | 81.47 | |
| Lever | ||||
| 24 | 343371440 | 1.67 | 2.02 | |
| Complete dust bag holder | ||||
| 25 | 316026300 | 12.23 | 14.80 | |
| Washer | ||||
| 26 | 339111090 | 1.55 | 1.88 | |
| Paper Dust Bag | ||||
| 27 | 344100960 | 3.71 | 4.49 | |
| Motor housing | ||||
| 28 | 343371220 | 26.95 | 32.61 | |
| No longer available, no replacement | ||||
| 29 | 338122160 | |||
| Verbindingsdraad compl. | ||||
| 30 | 344492110 | 1.67 | 2.02 | |
| Isoleerslang | ||||
| 31 | 339040660 | 1.55 | 1.88 | |
| Pressure Switch Black | ||||
| 32 | 343408920 | 7.22 | 8.74 | |
| Spanbeugel | ||||
| 33 | 339127870 | 1.55 | 1.88 | |
| Bolcilinderkop draadvorm | ||||
| 34 | 141119570 | 1.55 | 1.88 | |
| Trilbuffer | ||||
| 35 | 344094850 | 4.51 | 5.46 | |
| Fan | ||||
| 36 | 316025750 | 5.87 | 7.10 | |
| Fillister head screw | ||||
| 37 | 141116970 | 1.67 | 2.02 | |
| Extraction cover | ||||
| 38 | 343371260 | 3.71 | 4.49 | |
| Torsion spring | ||||
| 39 | 342020930 | 1.55 | 1.88 | |
| Scharnierpen | ||||
| 40 | 341514760 | 1.55 | 1.88 | |
| Papierklem | ||||
| 41 | 316026740 | 3.71 | 4.49 | |
| Oscillating plate | ||||
| 43 | 315414290 | 37.65 | 45.56 | |
| Felt ring | ||||
| 44 | 143190500 | 1.67 | 2.02 | |
| Cover washer | ||||
| 45 | 339070070 | 1.67 | 2.02 | |
| Ball Bearing 17x35x10 | ||||
| 46 | 143111450 | 8.89 | 10.76 | |
| Counterweight | ||||
| 47 | 315414380 | 12.23 | 14.80 | |
| Washer | ||||
| 48 | 339000090 | 1.55 | 1.88 | |
| Platverzonken schroef | ||||
| 49 | 141112220 | 1.55 | 1.88 | |
| Cover | ||||
| 50 | 339160430 | 1.55 | 1.88 | |
| Sanding base plate cpl. | ||||
| 51 | 339160250 | 26.95 | 32.61 | |
| Kabelbescherming | ||||
| 52 | 344100640 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 53 | 344493180 | 21.64 | 26.18 | |
| No information available, not orderable | ||||
| 54 | 399999990 | |||
| Verbindingsdraad set | ||||
| 55 | 344494020 | 1.67 | 2.02 | |
| Smoorspoel | ||||
| 56 | 343254030 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 1001 | 338501040 | |||
