Here you will find all available parts and drawings of the 'Metabo 00441000 ( SR2185 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

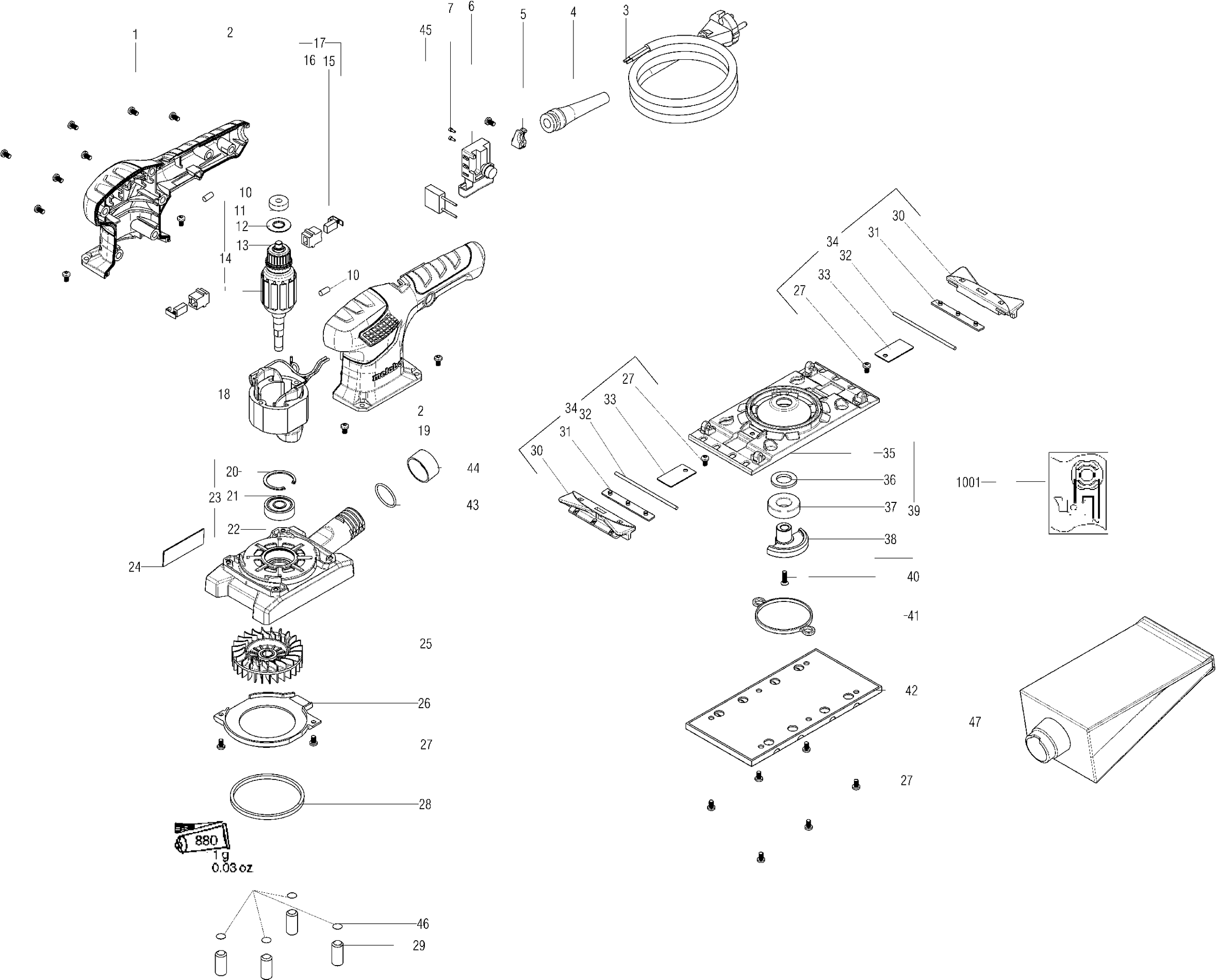

Technical drawing of model Metabo 00441000 ( SR2185 )
Spare parts list of model Metabo 00441000 ( SR2185 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap fill h screw | ||||
| 1 | 141116020 | 1.67 | 2.02 | |
| Huis Ergänzung fehlt in dieser Sprache | ||||
| 2 | 343436400 | 16.25 | 19.66 | |
| Kabel m. stekker | ||||
| 3 | 344498420 | 7.22 | 8.74 | |
| Kabelbescherming | ||||
| 4 | 344101140 | 2.28 | 2.76 | |
| Cable clip | ||||
| 5 | 343362490 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 6 | 343410540 | 7.22 | 8.74 | |
| Fillister head screw | ||||
| 7 | 141116970 | 1.67 | 2.02 | |
| Rubber stop | ||||
| 10 | 344092220 | 1.55 | 1.88 | |
| Kogellager 6x19x 6 | ||||
| 11 | 143115660 | 2.28 | 2.76 | |
| Isolierscheibe | ||||
| 12 | 343436390 | 1.55 | 1.88 | |
| Armature | ||||
| 13 | 310011240 | 48.48 | 58.66 | |
| Anker compl.,230V | ||||
| 14 | 317004540 | 60.59 | 73.31 | |
| No information available, not orderable | ||||
| 15 | 343012770 | |||
| Koolborstelhouder | ||||
| 16 | 343001340 | 5.18 | 6.27 | |
| Koolborstelset | ||||
| 17 | 316060550 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 18 | 311012210 | |||
| Fill. head screw | ||||
| 19 | 141120070 | 1.55 | 1.88 | |
| Retaining ring | ||||
| 20 | 141180370 | 1.55 | 1.88 | |
| Kogellager | ||||
| 21 | 320050820 | 4.51 | 5.46 | |
| Lagerflens | ||||
| 22 | 315302030 | 16.25 | 19.66 | |
| Flens compl. | ||||
| 23 | 316060490 | 24.23 | 29.32 | |
| Typeplaatje | ||||
| 24 | 338064090 | 1.55 | 1.88 | |
| Fan | ||||
| 25 | 343436430 | 1.67 | 2.02 | |
| Cover f. fan | ||||
| 26 | 343436440 | 3.02 | 3.65 | |
| Cilinderkopschroef | ||||
| 27 | 141124530 | 1.55 | 1.88 | |
| Felt ring f. fan cover | ||||
| 28 | 344070990 | 1.55 | 1.88 | |
| Vibration buffer | ||||
| 29 | 344091250 | 4.51 | 5.46 | |
| Papierklem | ||||
| 30 | 343378750 | 4.51 | 5.46 | |
| Pressure plate | ||||
| 31 | 344096370 | 1.55 | 1.88 | |
| Scharnirpen | ||||
| 32 | 341520060 | 1.67 | 2.02 | |
| Plate | ||||
| 33 | 339131720 | 1.55 | 1.88 | |
| Complete Clamping Piece | ||||
| 34 | 316060560 | 7.22 | 8.74 | |
| Oscillating plate | ||||
| 35 | 315418660 | 16.25 | 19.66 | |
| Felt ring | ||||
| 36 | 344071090 | 1.55 | 1.88 | |
| Kogellager 15x32x 9 | ||||
| 37 | 143112030 | 18.80 | 22.75 | |
| Tegengewicht | ||||
| 38 | 315418670 | 11.74 | 14.21 | |
| Complete Sanding Base | ||||
| 39 | 316060500 | 43.15 | 52.21 | |
| Platverzonken schroef | ||||
| 40 | 141120200 | 1.55 | 1.88 | |
| Stofdeksel | ||||
| 41 | 339136810 | 1.55 | 1.88 | |
| Grondplaat | ||||
| 42 | 343436450 | 21.64 | 26.18 | |
| No information available, not orderable | ||||
| 43 | 399999990 | |||
| No information available, not orderable | ||||
| 44 | 399999990 | |||
| Condensator | ||||
| 45 | 343254950 | 1.55 | 1.88 | |
| Washer | ||||
| 46 | 339009340 | 1.55 | 1.88 | |
| Dust bag | ||||
| 47 | 344101410 | 12.23 | 14.80 | |
| Washer | ||||
| 48 | 339007560 | 1.55 | 1.88 | |
| Grease | ||||
| 880 | 136011700 | 134.27 | 162.47 | |
