Here you will find all available parts and drawings of the 'Metabo 0910009222-11 ( SPANINRICHTINGWERKSTUKKGT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

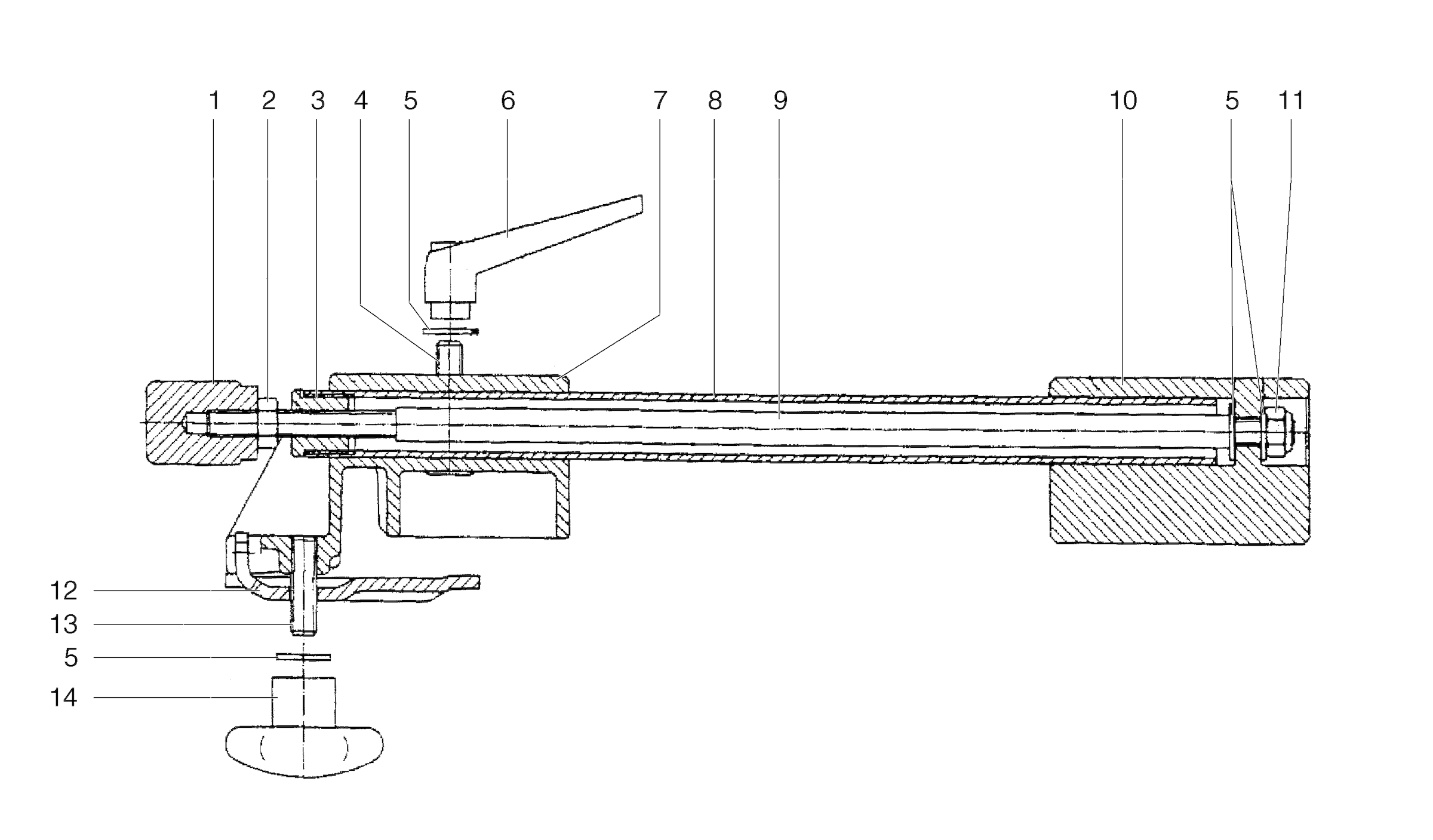

Technical drawing of model Metabo 0910009222-11 ( SPANINRICHTINGWERKSTUKKGT )
Spare parts list of model Metabo 0910009222-11 ( SPANINRICHTINGWERKSTUKKGT )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 1385209572 | |||
| Zeskante moer | ||||
| 2 | 141131010 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 3 | 1485209561 | |||
| Zeskantschroef | ||||
| 4 | 141113330 | 1.67 | 2.02 | |
| Washer | ||||
| 5 | 141151340 | 1.55 | 1.88 | |
| Clamping lever with internal thread | ||||
| 6 | 7006028653 | 7.22 | 8.74 | |
| Clamping body | ||||
| 7 | 1380209515 | 60.59 | 73.31 | |
| ADJUSTABLE TUBE DA=RD 20X2,5X280 SPANNVORRIC | ||||
| 8 | 1485209545 | 26.95 | 32.61 | |
| THREAD ROD M8X340 CLAMPING DEVICE | ||||
| 9 | 1485209553 | 26.95 | 32.61 | |
| Clamping Body 50X50X80 | ||||
| 10 | 1381209535 | 67.33 | 81.47 | |
| Self-locking hexagon nut | ||||
| 11 | 6202002305 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 12 | 1482209528 | |||
| HEXAGONAL SCREW M 8X30 GALV. | ||||
| 13 | 6103031271 | 1.55 | 1.88 | |
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 14 | 7000028937 | 2.28 | 2.76 | |
