Here you will find all available parts and drawings of the 'Metabo 0910009222-10 ( SPANINRICHTINGWERKSTUKKGT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

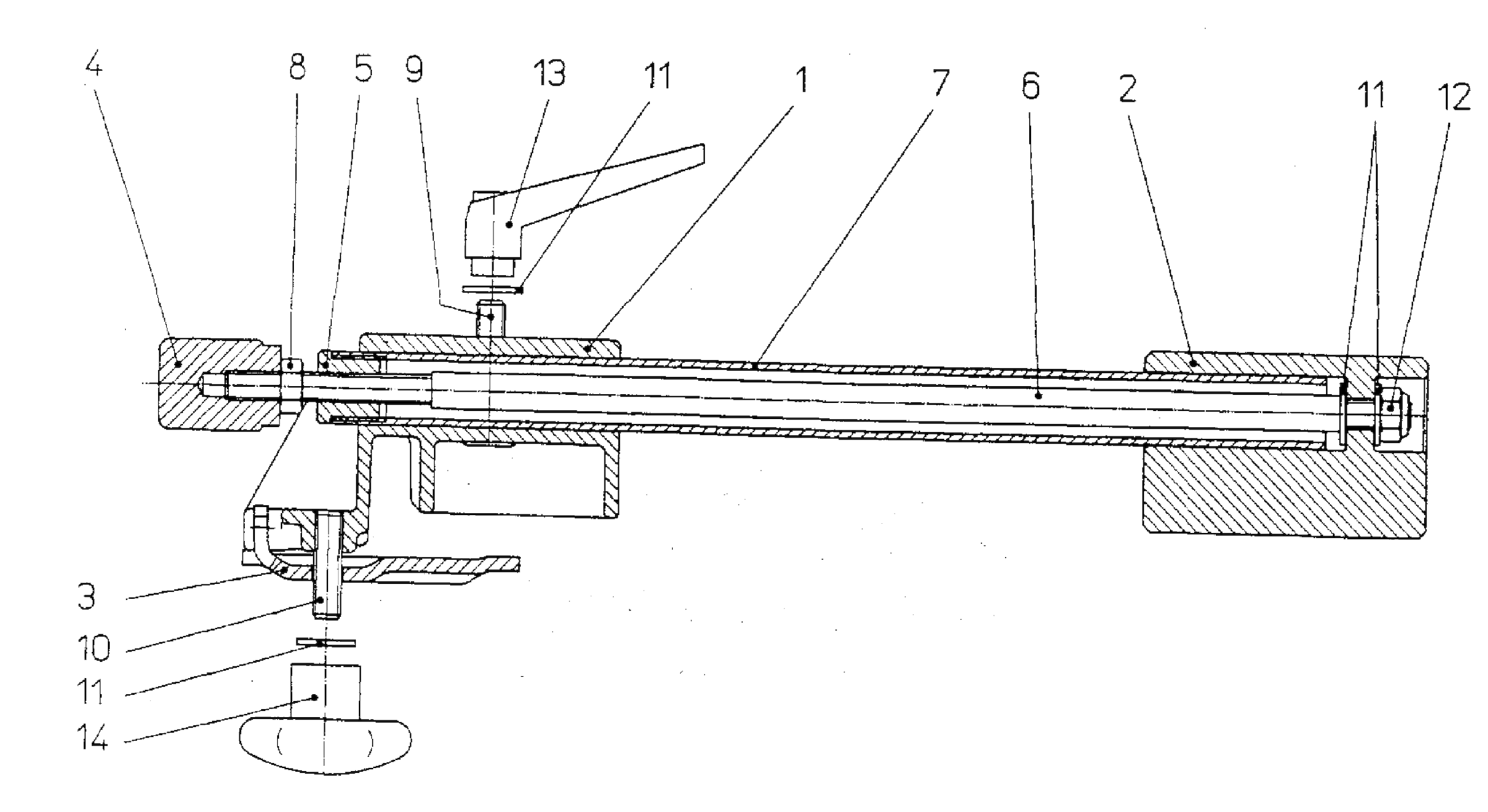

Technical drawing of model Metabo 0910009222-10 ( SPANINRICHTINGWERKSTUKKGT )
Spare parts list of model Metabo 0910009222-10 ( SPANINRICHTINGWERKSTUKKGT )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Clamping body | ||||
| 1 | 1380209515 | 60.59 | 73.31 | |
| Clamping Body 50X50X80 | ||||
| 2 | 1381209535 | 67.33 | 81.47 | |
| No information available, not orderable | ||||
| 3 | 1482209528 | |||
| No information available, not orderable | ||||
| 4 | 1385209572 | |||
| No information available, not orderable | ||||
| 5 | 1485209561 | |||
| THREAD ROD M8X340 CLAMPING DEVICE | ||||
| 6 | 1485209553 | 26.95 | 32.61 | |
| ADJUSTABLE TUBE DA=RD 20X2,5X280 SPANNVORRIC | ||||
| 7 | 1485209545 | 26.95 | 32.61 | |
| Zeskante moer | ||||
| 8 | 141131010 | 1.55 | 1.88 | |
| Zeskantschroef | ||||
| 9 | 141113330 | 1.67 | 2.02 | |
| HEXAGONAL SCREW M 8X30 GALV. | ||||
| 10 | 6103031271 | 1.55 | 1.88 | |
| Washer | ||||
| 11 | 141151340 | 1.55 | 1.88 | |
| Self-locking hexagon nut | ||||
| 12 | 6202002305 | 1.55 | 1.88 | |
| Clamping lever with internal thread | ||||
| 13 | 7006028653 | 7.22 | 8.74 | |
| STAR KNOB NUT M 8 (DIN 934) GALVANIZED | ||||
| 14 | 7000028937 | 2.28 | 2.76 | |
