Here you will find all available parts and drawings of the 'Metabo 0130200100-10 ( SPA2002W )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

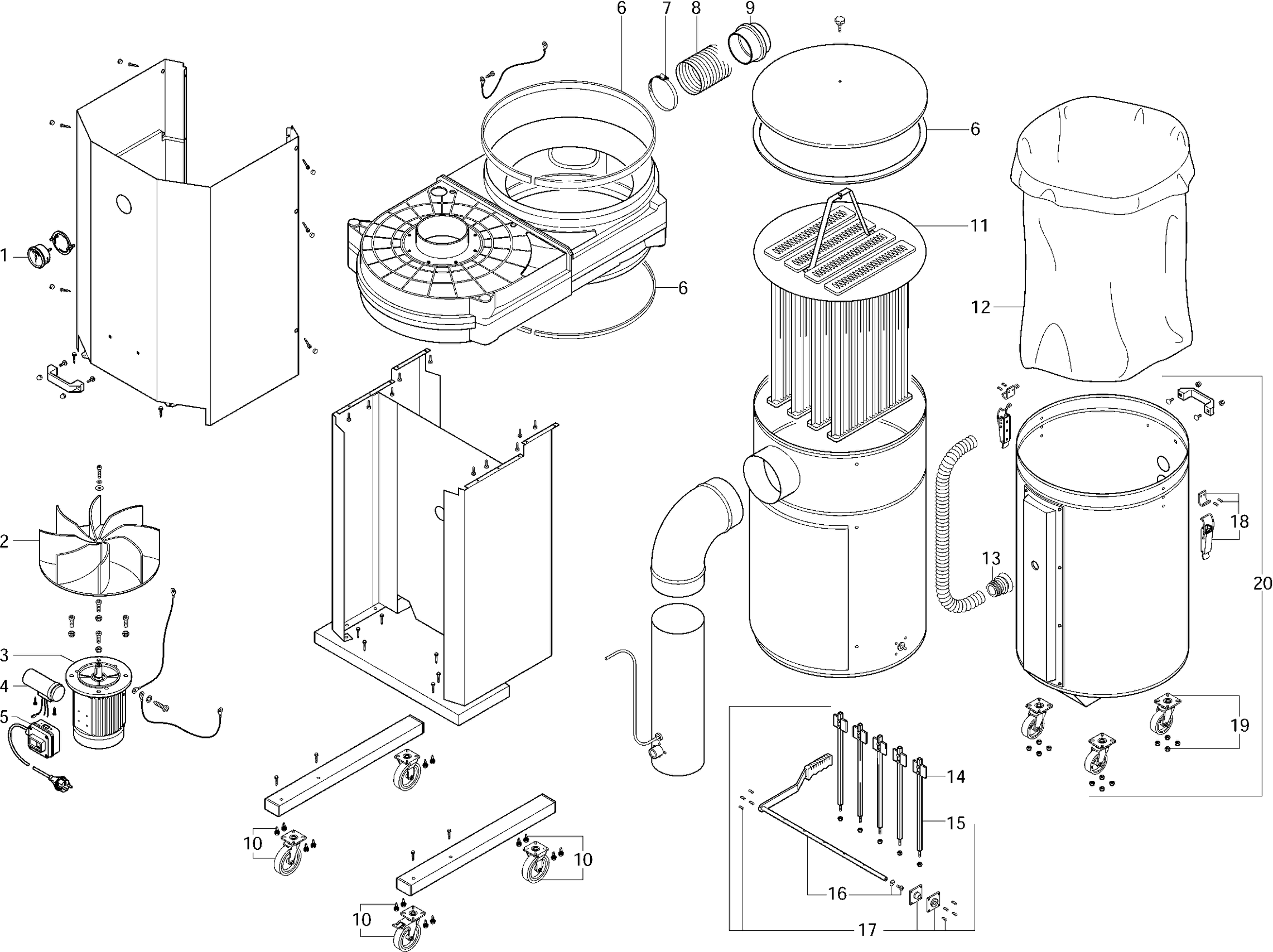

Technical drawing of model Metabo 0130200100-10 ( SPA2002W )

Spare parts list of model Metabo 0130200100-10 ( SPA2002W )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
PRESSURE GAUGE RD 70 ET
1 7823690457 148.53 179.72
FAN D=365 MM ET
2 1388690433 148.53 179.72
E-MOTOR 1,5 KW 230/1/50 ET
3 8012690399 603.09 729.74
CAPACITOR 30 F/400V ET
4 8050690416 67.33 81.47
SSK-SWITCH 230V/6A ET
5 8131690402 161.61 195.55
GASKET ET
6 1013690371 67.33 81.47
Hose clamp NW 100 ET
7 7811690524 32.27 39.05
SUCTION HOSE 2.5M ET
8 1013690533 161.61 195.55
No information available, not orderable
9 0913031300
No information available, not orderable
10 1013690509
No information available, not orderable
11 0913059441
No information available, not orderable
12 0913059433
CUFF ET
13 1388690425 60.59 73.31
SCRAPER ET
14 1013690487 60.59 73.31
FILTER CLEANING ET
15 1013690495 94.12 113.89
HANDLE ET
16 1013690479 100.74 121.90
FILTER CLEANING ET
17 1013690460 213.88 258.79
CLAMP BRACKET ET
18 1013690380 113.82 137.72
No information available, not orderable
19 1013690517
DUST COLLECTION CONTAINER ET
20 1013690444 809.10 979.01
