Here you will find all available parts and drawings of the 'Metabo 0130170100-11 ( SPA1702W )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

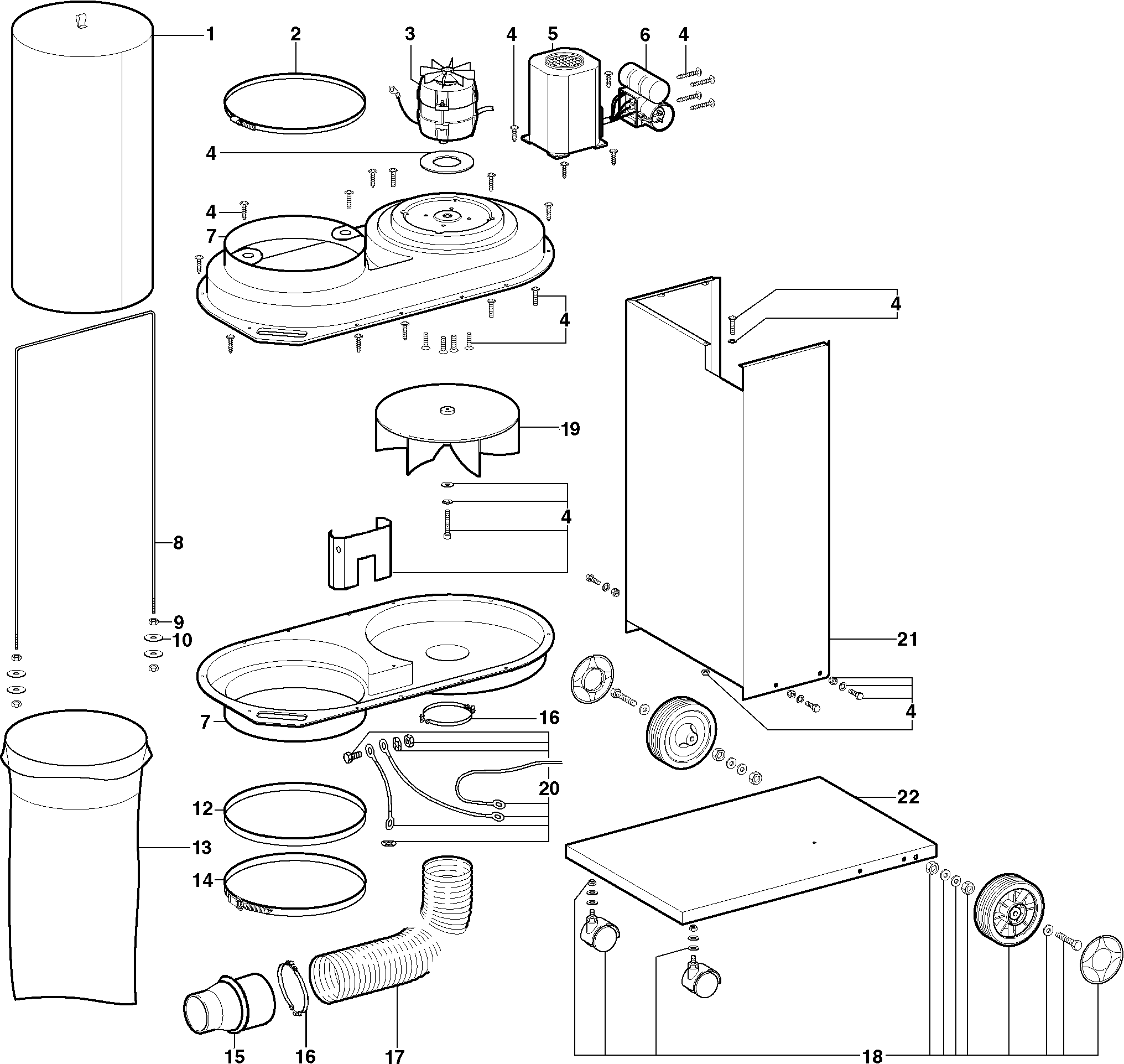

Technical drawing of model Metabo 0130170100-11 ( SPA1702W )

Spare parts list of model Metabo 0130170100-11 ( SPA1702W )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
DUST BAG CATEGORY 'G' SPA 1701
1 1388690875 100.74 121.90
Clamp Band Set 1110 MM ET
2 7014690896 32.27 39.05
E-MOTOR 230/1/50 0,75KW ET
3 8012690917 469.34 567.90
BAG OF SCREWS SPA 1701
4 1013691033 60.59 73.31
COVER CAP ET
5 1381690934 18.80 22.75
SSK-SWITCH KSVB 16A IP 44 ET
6 8131690925 213.88 258.79
HOUSING SET ET
7 1381690942 148.53 179.72
Dust bag holder RD 5.3 1604 MM ET
8 1382690881 18.80 22.75
Zeskante moer
9 141130100 1.55 1.88
Washer
10 141150130 1.55 1.88
Sealing Washer RD 325 ET
12 1388691014 4.51 5.46
No information available, not orderable
13 0913017617
Clamp Band Set RD 325 /M.VERSCHLUSS ET
14 7014690900 18.80 22.75
No information available, not orderable
15 0913031300
Hose clamp RD 90-110 / 12 SKZ
16 7811036697 3.71 4.49
No information available, not orderable
17 7854018544
ROLLER SET ET
18 1013690991 67.33 81.47
Impeller Wheel ET
19 1381690969 128.32 155.27
GROUNDING CABLE SET
20 1013691041 60.59 73.31
Front plate ET
21 1382690989 175.84 212.77
Base plate ET
22 1382690970 134.27 162.47
