Here you will find all available parts and drawings of the 'Metabo 0130170100-10 (SPA1702W)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

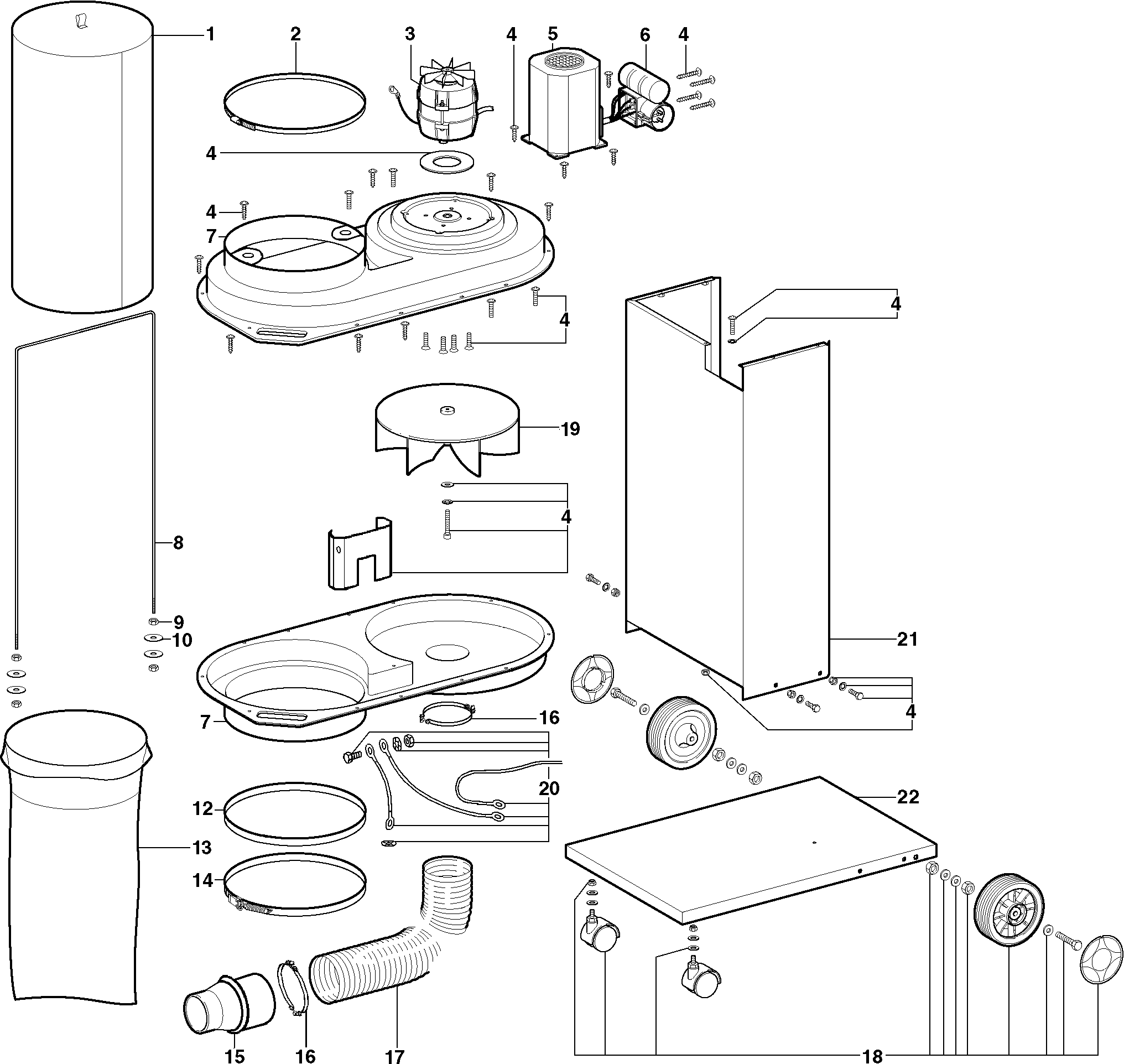

Technical drawing of model Metabo 0130170100-10 (SPA1702W)
Spare parts list of model Metabo 0130170100-10 (SPA1702W)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| DUST BAG CATEGORY 'G' SPA 1701 | ||||
| 1 | 1388690875 | 100.74 | 121.90 | |
| Clamp Band Set 1110 MM ET | ||||
| 2 | 7014690896 | 32.27 | 39.05 | |
| E-MOTOR 230/1/50 0,75KW ET | ||||
| 3 | 8012690917 | 469.34 | 567.90 | |
| BAG OF SCREWS SPA 1701 | ||||
| 4 | 1013691033 | 60.59 | 73.31 | |
| COVER CAP ET | ||||
| 5 | 1381690934 | 18.80 | 22.75 | |
| SSK-SWITCH KSVB 16A IP 44 ET | ||||
| 6 | 8131690925 | 213.88 | 258.79 | |
| HOUSING SET ET | ||||
| 7 | 1381690942 | 148.53 | 179.72 | |
| Dust bag holder RD 5.3 1604 MM ET | ||||
| 8 | 1382690881 | 18.80 | 22.75 | |
| Zeskante moer | ||||
| 9 | 141130100 | 1.56 | 1.89 | |
| Washer | ||||
| 10 | 141150130 | 1.56 | 1.89 | |
| HOUSING SET ET | ||||
| 11 | 1381690942 | 148.53 | 179.72 | |
| Sealing Washer RD 325 ET | ||||
| 12 | 1388691014 | 4.51 | 5.46 | |
| No information available, not orderable | ||||
| 13 | 0913017617 | |||
| Clamp Band Set RD 325 /M.VERSCHLUSS ET | ||||
| 14 | 7014690900 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 15 | 0913031300 | |||
| Hose clamp RD 90-110 / 12 SKZ | ||||
| 16 | 7811036697 | 3.71 | 4.49 | |
| hose | ||||
| 17 | 344099190 | 32.27 | 39.05 | |
| ROLLER SET ET | ||||
| 18 | 1013690991 | 67.33 | 81.47 | |
| Impeller Wheel ET | ||||
| 19 | 1381690969 | 128.32 | 155.27 | |
| GROUNDING CABLE SET | ||||
| 20 | 1013691041 | 60.59 | 73.31 | |
| Front plate ET | ||||
| 21 | 1382690989 | 175.84 | 212.77 | |
| Base plate ET | ||||
| 22 | 1382690970 | 134.27 | 162.47 | |
