Here you will find all available parts and drawings of the 'Metabo 0130011004-11 ( SPA1101 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

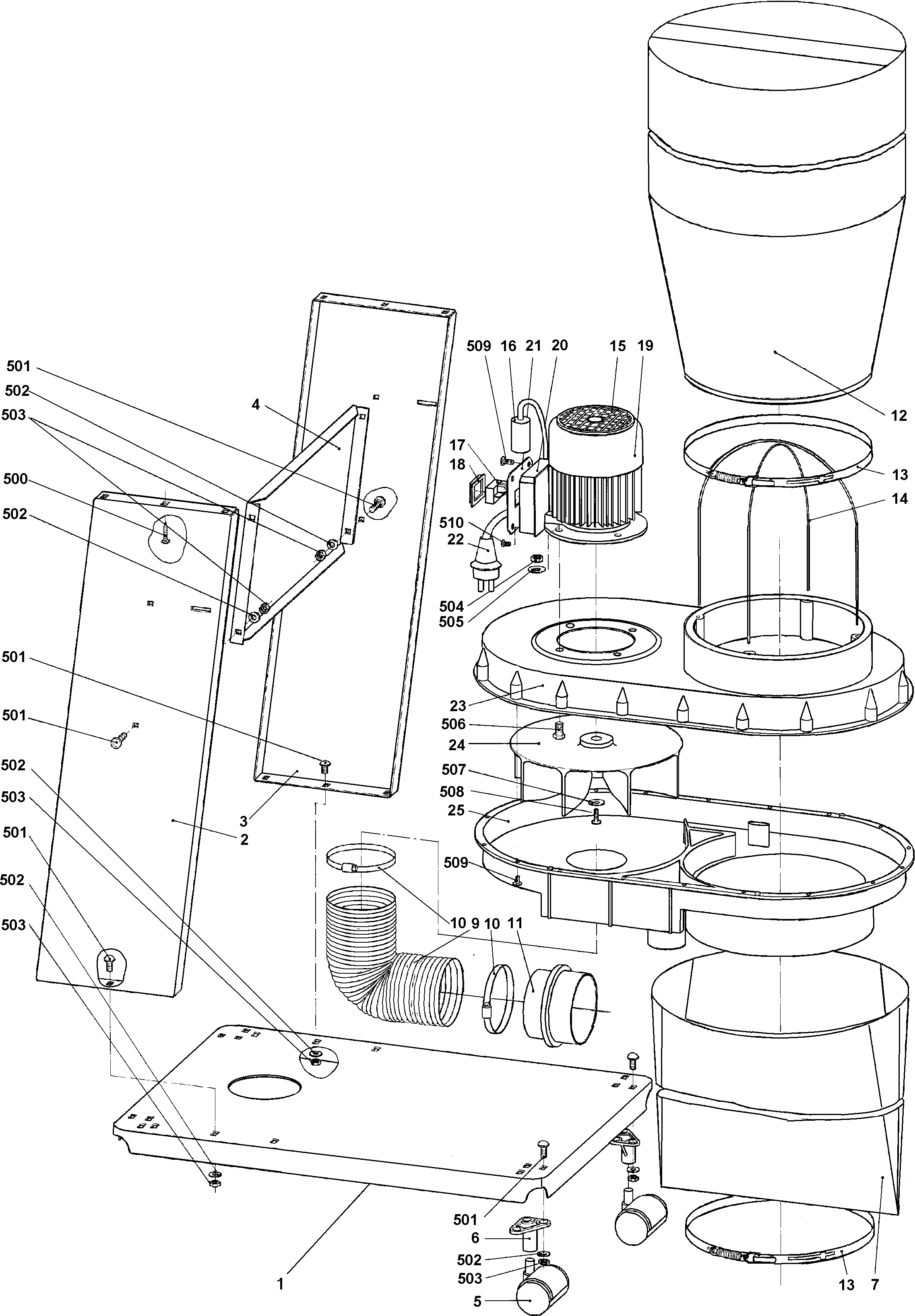

Technical drawing of model Metabo 0130011004-11 ( SPA1101 )
Spare parts list of model Metabo 0130011004-11 ( SPA1101 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 1382223043 | |||
| No information available, not orderable | ||||
| 2 | 1382223086 | |||
| No information available, not orderable | ||||
| 3 | 1382223051 | |||
| TRAVERSE BL 1,5X252X391 | ||||
| 4 | 1382223060 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 5 | 7270033142 | |||
| No information available, not orderable | ||||
| 6 | 1381223074 | |||
| No information available, not orderable | ||||
| 7 | 4820629243 | |||
| No information available, not orderable | ||||
| 9 | 7854018544 | |||
| Hose clamp RD 90-110 / 12 SKZ | ||||
| 10 | 7811036697 | 3.71 | 4.49 | |
| Transition ring | ||||
| 11 | 1391006179 | 7.22 | 8.74 | |
| No longer available, no replacement | ||||
| 12 | 1399187989 | |||
| No longer available, no replacement | ||||
| 13 | 7014421119 | |||
| No longer available, no replacement | ||||
| 14 | 1381221314 | |||
| No information available, not orderable | ||||
| 15 | 1381630710 | |||
| No longer available, no replacement | ||||
| 16 | 8050011799 | |||
| No longer available, no replacement | ||||
| 17 | 8112608924 | |||
| No information available, not orderable | ||||
| 18 | 8119608938 | |||
| No information available, not orderable | ||||
| 19 | 1013630492 | |||
| Lower part of the engine housing | ||||
| 20 | 1331409657 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 21 | 1331630736 | |||
| RUBBER CABLE 3GX1,5X3000 A=437.1U B=70 GE | ||||
| 22 | 8402094428 | 21.64 | 26.18 | |
| No longer available, no replacement | ||||
| 23 | 1381691906 | |||
| Impeller Wheel SPA 1101 | ||||
| 24 | 1381691914 | 74.13 | 89.70 | |
| No information available, not orderable | ||||
| 25 | 1381691892 | |||
| Hexagonal plate screw | ||||
| 500 | 141122680 | 1.55 | 1.88 | |
| SQUARE BOLT WITH SQUARE INSERT M 5X16 COAT | ||||
| 501 | 6110125036 | 1.55 | 1.88 | |
| Washer | ||||
| 502 | 141151940 | 1.55 | 1.88 | |
| Flange nut | ||||
| 503 | 6209018460 | 1.55 | 1.88 | |
| Self-locking hexagon nut | ||||
| 504 | 6202002305 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 505 | 6305002486 | |||
| Zeskantschroef | ||||
| 506 | 141110320 | 1.67 | 2.02 | |
| Washer | ||||
| 507 | 141150130 | 1.55 | 1.88 | |
| SELF-TAPPING SCREW WITH CROSSHEAD M 5X16 GALV. | ||||
| 508 | 6123002057 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 509 | 6189011421 | |||
| No information available, not orderable | ||||
| 510 | 6175604837 | |||
