Here you will find all available parts and drawings of the 'Metabo 20045000 (SE4000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

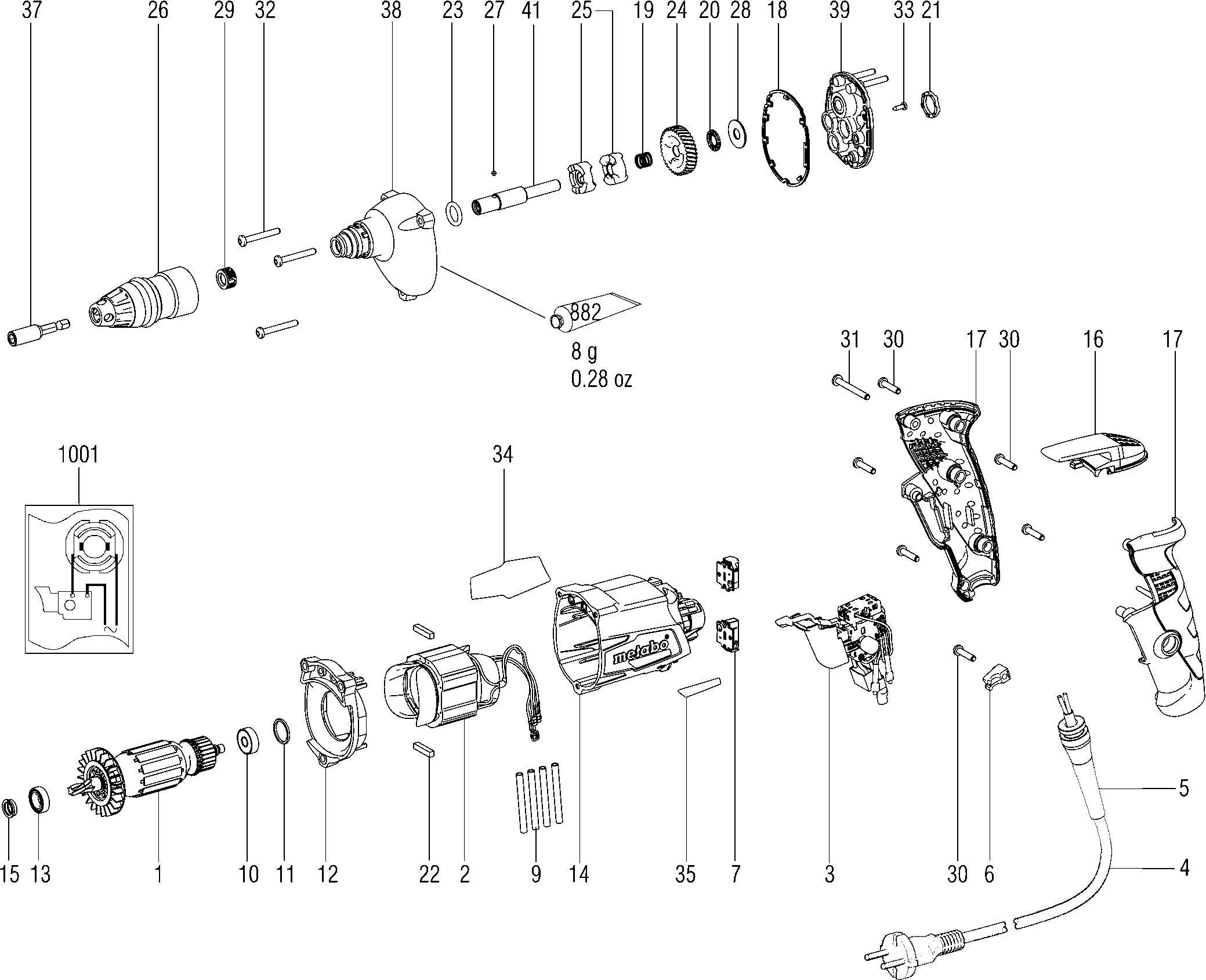

Technical drawing of model Metabo 20045000 (SE4000)
Spare parts list of model Metabo 20045000 (SE4000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310011100 | 74.13 | 89.70 | |
| Feldpaket vollst, 230V | ||||
| 2 | 311012120 | 48.48 | 58.66 | |
| Elektro.schakelaar zonder stelwiel,230V | ||||
| 3 | 343410360 | 26.95 | 32.61 | |
| Kabel m.CEE-stekker | ||||
| 4 | 344499520 | 16.25 | 19.66 | |
| Kabelbescherming | ||||
| 5 | 344101140 | 2.28 | 2.76 | |
| Cable clip | ||||
| 6 | 343362490 | 1.68 | 2.03 | |
| Koolborstelhouder compl.,230 V | ||||
| 7 | 316054740 | 7.22 | 8.74 | |
| Insulation hose | ||||
| 9 | 339040970 | 1.56 | 1.89 | |
| Ball bearing 6x19x6 | ||||
| 10 | 143115810 | 2.28 | 2.76 | |
| O-ring | ||||
| 11 | 143192430 | 1.68 | 2.03 | |
| Tussenflens | ||||
| 12 | 343434360 | 3.02 | 3.65 | |
| Groove ball bearing,10x19x5 | ||||
| 13 | 143115570 | 5.87 | 7.10 | |
| Motor housing | ||||
| 14 | 315013610 | 16.25 | 19.66 | |
| Afdichtring | ||||
| 15 | 343434430 | 1.56 | 1.89 | |
| Hook | ||||
| 16 | 343434590 | 3.02 | 3.65 | |
| Huis m.deksel | ||||
| 17 | 343434340 | 13.48 | 16.31 | |
| Vormpakking | ||||
| 18 | 344099610 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 19 | 342003960 | 1.56 | 1.89 | |
| Axiaal-naaldlager | ||||
| 20 | 143113820 | 7.22 | 8.74 | |
| Rubberen buffer | ||||
| 21 | 344099600 | 1.56 | 1.89 | |
| Rubber stop | ||||
| 22 | 344093350 | 1.56 | 1.89 | |
| O-ring | ||||
| 23 | 143193920 | 5.87 | 7.10 | |
| Claw wheel | ||||
| 24 | 340013030 | 13.48 | 16.31 | |
| Claw Disk | ||||
| 25 | 341161570 | 11.74 | 14.21 | |
| Tiefenanschlag vollst. | ||||
| 26 | 316054470 | 18.80 | 22.75 | |
| Ball | ||||
| 27 | 143120020 | 1.68 | 2.03 | |
| Axial disc | ||||
| 28 | 143114760 | 1.56 | 1.89 | |
| Sleeve | ||||
| 29 | 343434410 | 1.56 | 1.89 | |
| Self-tap fill h screw | ||||
| 30 | 141116020 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 31 | 141116990 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141124570 | 1.56 | 1.89 | |
| Self-tapp. fill. h. screw | ||||
| 33 | 141119900 | 1.56 | 1.89 | |
| Typeplaatje | ||||
| 34 | 338063160 | 1.56 | 1.89 | |
| Typeplaatje,SE 4000, 20045XXX | ||||
| 35 | 338125830 | 3.02 | 3.65 | |
| Bitopnamehulzen | ||||
| 37 | 316055470 | 5.87 | 7.10 | |
| Tandwielhuis compl. | ||||
| 38 | 316057010 | 24.23 | 29.32 | |
| Tandwielflens compl. | ||||
| 39 | 316057030 | 32.27 | 39.05 | |
| Shaft | ||||
| 41 | 341604640 | 10.38 | 12.56 | |
| Tube of grease 50 gr. SF 126 | ||||
| 882 | 344130800 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 1001 | 338505900 | |||
