Here you will find all available parts and drawings of the 'Metabo 20003000 (SE2800)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

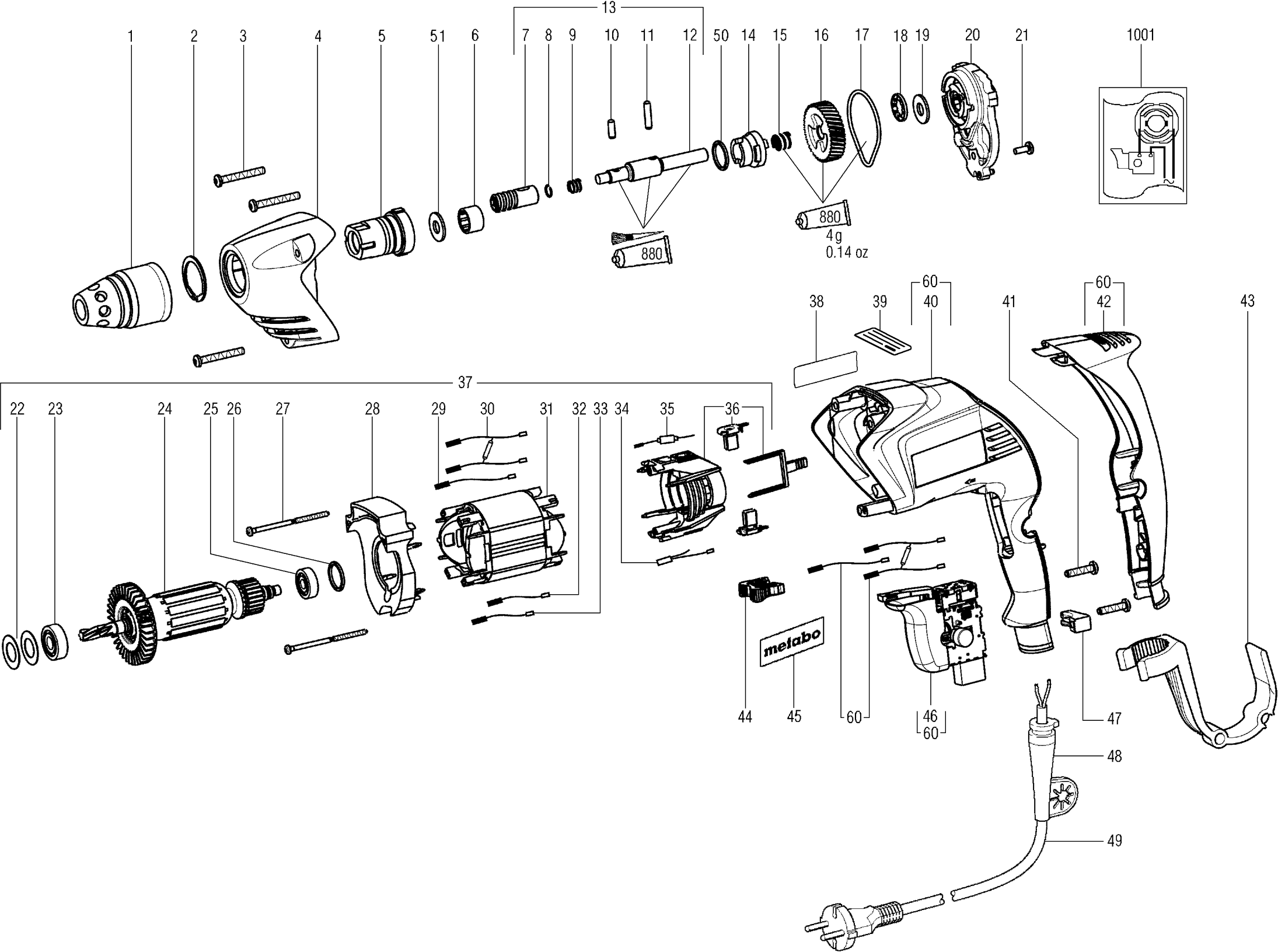

Technical drawing of model Metabo 20003000 (SE2800)
Spare parts list of model Metabo 20003000 (SE2800)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Dieptegeleider compl. | ||||
| 1 | 316038910 | 32.27 | 39.05 | |
| V-washer | ||||
| 2 | 141156270 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 3 | 141124570 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 4 | 315013170 | 7.22 | 8.74 | |
| Bearing sleeve | ||||
| 5 | 343391590 | 3.71 | 4.49 | |
| Naaldlager | ||||
| 6 | 143111740 | 3.02 | 3.65 | |
| Spare bit chuck | ||||
| 7 | 341057790 | 21.64 | 26.18 | |
| Lock washer | ||||
| 8 | 141156280 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 9 | 342001070 | 1.56 | 1.89 | |
| Cilinderstift | ||||
| 10 | 141163980 | 1.56 | 1.89 | |
| Cilinderstift | ||||
| 11 | 141163990 | 1.56 | 1.89 | |
| Tool carrier compl. | ||||
| 12 | 316041200 | 43.15 | 52.21 | |
| Gereedschapdrager | ||||
| 13 | 316040400 | 94.12 | 113.89 | |
| Klauwschijf | ||||
| 14 | 341057750 | 21.64 | 26.18 | |
| Pressure spring | ||||
| 15 | 342003270 | 1.56 | 1.89 | |
| Klauwenwiel | ||||
| 16 | 340012480 | 8.89 | 10.76 | |
| O-ring | ||||
| 17 | 143191930 | 1.68 | 2.03 | |
| Kogelhouder | ||||
| 18 | 320050470 | 1.56 | 1.89 | |
| Washer | ||||
| 19 | 339005870 | 1.56 | 1.89 | |
| Gear flange with suction nozzle | ||||
| 20 | 316040410 | 43.15 | 52.21 | |
| Self-tap. fill. h. screw | ||||
| 21 | 141118130 | 1.56 | 1.89 | |
| Disc spring | ||||
| 22 | 141150590 | 1.56 | 1.89 | |
| Ball bearing 8x22x 7 | ||||
| 23 | 143114880 | 3.02 | 3.65 | |
| Anker,230V | ||||
| 24 | 310008740 | 94.12 | 113.89 | |
| Ball bearing 6x19x 6 | ||||
| 25 | 143114750 | 3.02 | 3.65 | |
| O-ring | ||||
| 26 | 143195230 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 27 | 341570060 | 1.56 | 1.89 | |
| Luchtgeleidingsschijf | ||||
| 28 | 343391660 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 29 | 399999990 | |||
| No information available, not orderable | ||||
| 30 | 399999990 | |||
| Field coil | ||||
| 31 | 311011340 | 37.65 | 45.56 | |
| Terminal cpl. | ||||
| 32 | 344496660 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 33 | 399999990 | |||
| Smoorspoel | ||||
| 34 | 344496700 | 1.56 | 1.89 | |
| Smoorspoel | ||||
| 35 | 344496690 | 1.56 | 1.89 | |
| Carbon brush complete with insert,230V | ||||
| 36 | 316041730 | 18.80 | 22.75 | |
| Motor compl. 230V | ||||
| 37 | 317003260 | 187.73 | 227.15 | |
| Typeplaatje | ||||
| 38 | 338047420 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 39 | 399999990 | |||
| Motor housing | ||||
| 40 | 343398850 | 8.89 | 10.76 | |
| Self-tap fill h screw | ||||
| 41 | 141116020 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 42 | 399999990 | |||
| Scaffold hook | ||||
| 43 | 343391670 | 7.22 | 8.74 | |
| Schakelschuif | ||||
| 44 | 343391620 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 45 | 338122160 | |||
| Washer | ||||
| 46 | 141153400 | 1.68 | 2.03 | |
| Cable clip | ||||
| 47 | 343362490 | 1.68 | 2.03 | |
| Kabelbescherming | ||||
| 48 | 344097860 | 1.56 | 1.89 | |
| Kabel m. CEE-stekker | ||||
| 49 | 344493180 | 21.64 | 26.18 | |
| O-ring | ||||
| 50 | 143194640 | 1.68 | 2.03 | |
| Shaft seal ring | ||||
| 51 | 143195130 | 7.22 | 8.74 | |
| Schakelaar set | ||||
| 60 | 316051190 | 26.95 | 32.61 | |
| Can of grease UNIM GL402 | ||||
| 880 | 344130650 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 1001 | 338504410 | |||
