Here you will find all available parts and drawings of the 'Metabo 20047000 ( SE18LTX2500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

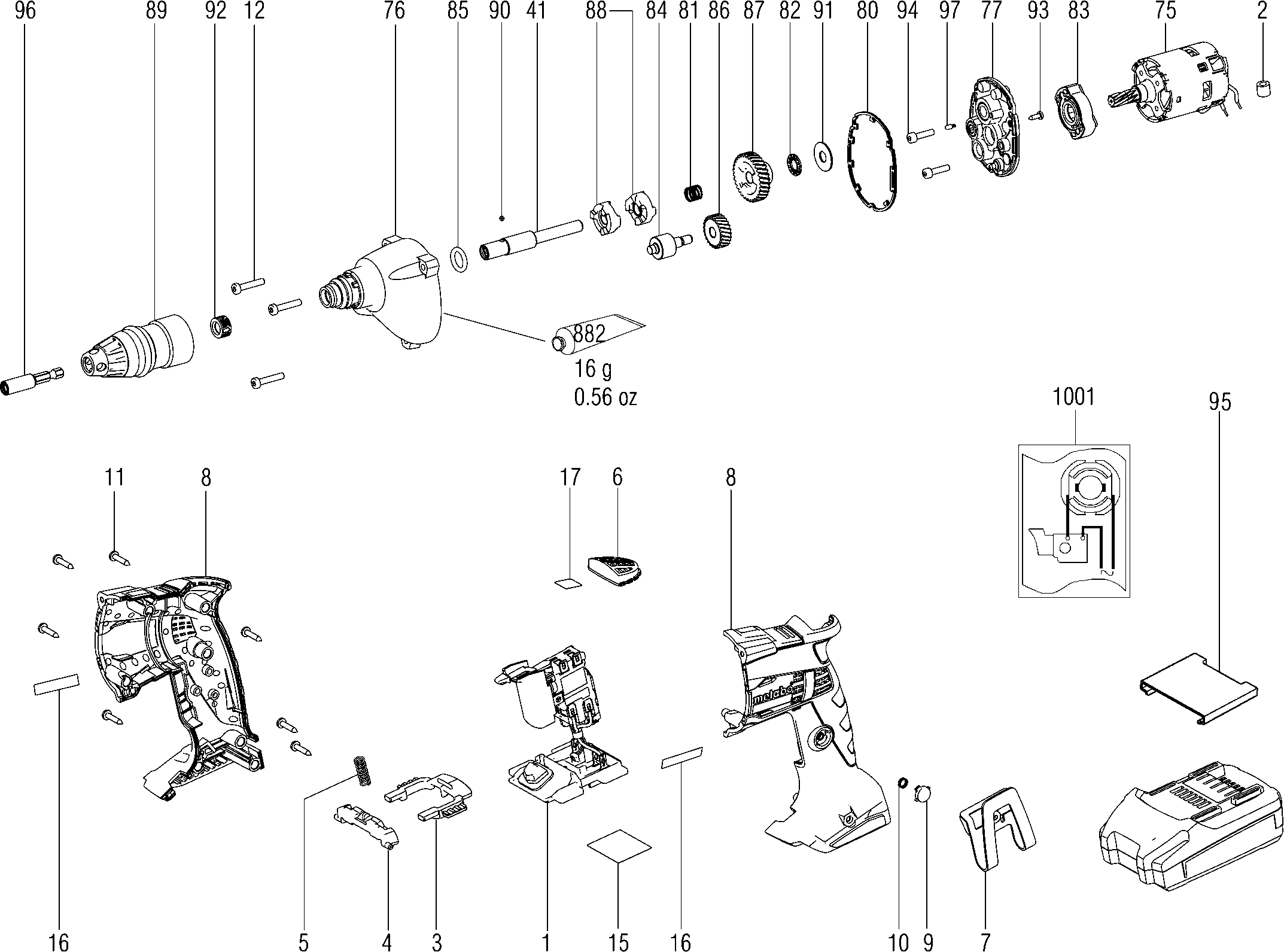

Technical drawing of model Metabo 20047000 ( SE18LTX2500 )
Spare parts list of model Metabo 20047000 ( SE18LTX2500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Elektro.schakelaar, 18V | ||||
| 1 | 343410220 | 74.13 | 89.70 | |
| Ferrite ring OD11.5*ID5*9 | ||||
| 2 | 143160080 | 2.28 | 2.76 | |
| Locking slide | ||||
| 3 | 343433300 | 2.28 | 2.76 | |
| Vergrendelstuk | ||||
| 4 | 343430520 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 5 | 342003030 | 1.55 | 1.88 | |
| Inlegelement | ||||
| 6 | 343435420 | 1.67 | 2.02 | |
| Hook | ||||
| 7 | 316052120 | 3.71 | 4.49 | |
| Hook | ||||
| 7 | 339137270 | 2.28 | 2.76 | |
| Huis m.deksel | ||||
| 8 | 343434390 | 21.64 | 26.18 | |
| Vastzetknop | ||||
| 9 | 343434440 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 10 | 342003950 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 11 | 141113180 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 12 | 141117060 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 15 | 338063190 | 1.55 | 1.88 | |
| Typeplaatje,SE 18 LTX 2500, 20047XXX | ||||
| 16 | 338125860 | 3.02 | 3.65 | |
| Identification plate | ||||
| 17 | 338129940 | 1.67 | 2.02 | |
| Indicator label | ||||
| 17 | 338124500 | 1.55 | 1.88 | |
| Shaft | ||||
| 41 | 341604630 | 11.74 | 14.21 | |
| Motor compl. | ||||
| 75 | 316058120 | 94.12 | 113.89 | |
| Tandwielhuis compl. | ||||
| 76 | 316057000 | 26.95 | 32.61 | |
| Tandwielflens compl. | ||||
| 77 | 316057040 | 43.15 | 52.21 | |
| Axle with gear | ||||
| 78 | 316058140 | 37.65 | 45.56 | |
| Vormpakking | ||||
| 80 | 344099610 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 81 | 342003960 | 1.55 | 1.88 | |
| Axiaal-naaldlager | ||||
| 82 | 143113820 | 7.22 | 8.74 | |
| Tussenstuk | ||||
| 83 | 343434400 | 1.55 | 1.88 | |
| Tandwielas | ||||
| 84 | 340012950 | 24.23 | 29.32 | |
| O-ring | ||||
| 85 | 143193920 | 5.87 | 7.10 | |
| Spur gear diagonally-toothed | ||||
| 86 | 340012910 | 4.51 | 5.46 | |
| Claw wheel | ||||
| 87 | 340013020 | 13.48 | 16.31 | |
| Claw Disk | ||||
| 88 | 341161570 | 11.74 | 14.21 | |
| Tiefenanschlag vollst. | ||||
| 89 | 316054470 | 18.80 | 22.75 | |
| Ball | ||||
| 90 | 143120020 | 1.67 | 2.02 | |
| Axial disc | ||||
| 91 | 143114760 | 1.55 | 1.88 | |
| Sleeve | ||||
| 92 | 343434410 | 1.55 | 1.88 | |
| Self-tapp. fill. h. screw | ||||
| 93 | 141119900 | 1.55 | 1.88 | |
| Cilinderkopschroef | ||||
| 94 | 141113600 | 1.67 | 2.02 | |
| Cover cap | ||||
| 95 | 343439680 | 1.55 | 1.88 | |
| Bitopnamehulzen | ||||
| 96 | 316055470 | 5.87 | 7.10 | |
| Steunstift | ||||
| 97 | 342003940 | 1.55 | 1.88 | |
| Tube of grease 50 gr. SF 126 | ||||
| 882 | 344130800 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 1001 | 338505930 | |||
