Here you will find all available parts and drawings of the 'Metabo 02259000 ( SE17-200RT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

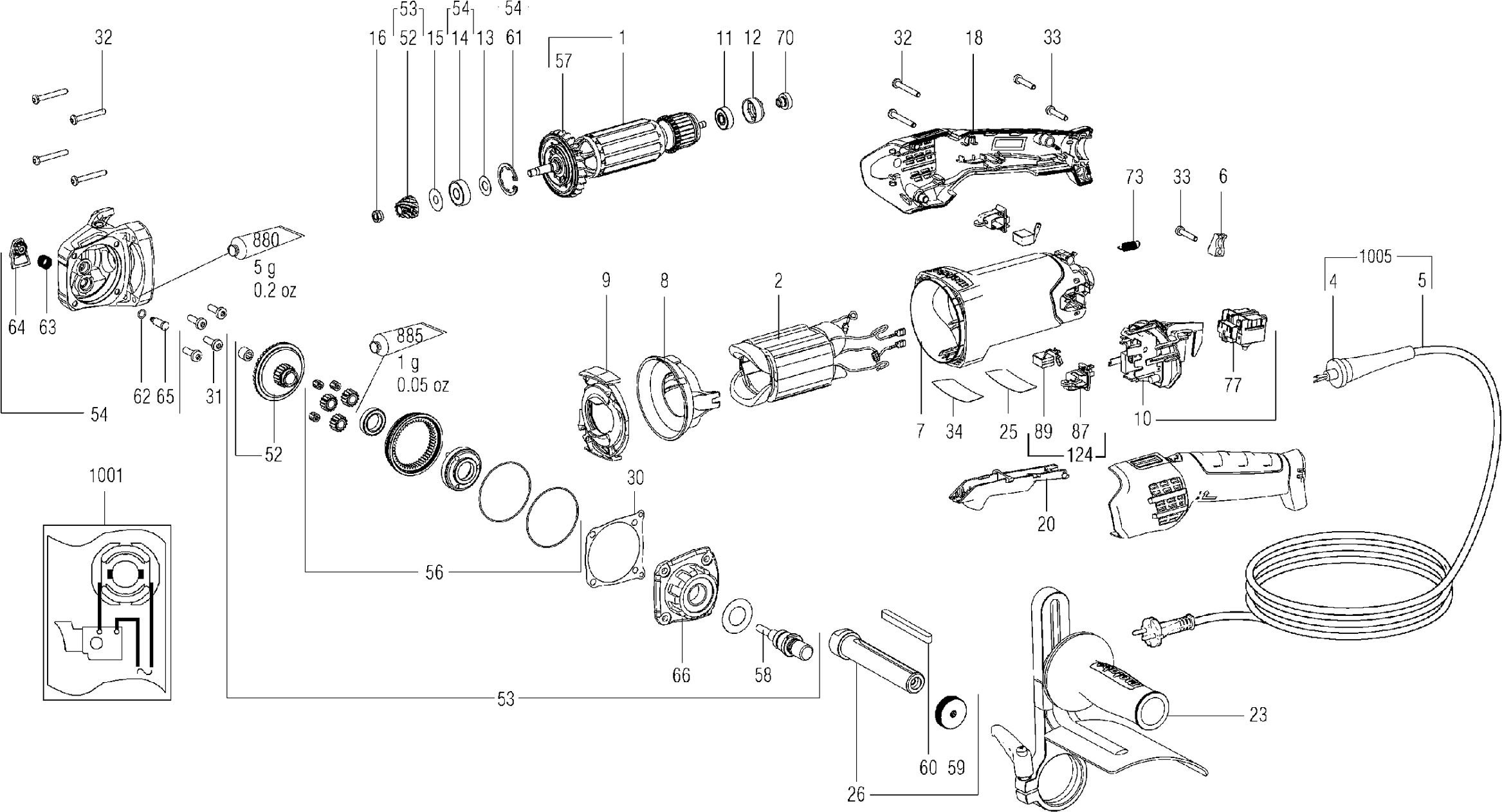

Technical drawing of model Metabo 02259000 ( SE17-200RT )
Spare parts list of model Metabo 02259000 ( SE17-200RT )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl., 230V | ||||
| 1 | 310010990 | 67.33 | 81.47 | |
| Field | ||||
| 2 | 311012980 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 4 | 399999990 | |||
| No information available, not orderable | ||||
| 5 | 399999990 | |||
| Cable clip | ||||
| 6 | 343362490 | 1.67 | 2.02 | |
| Motor housing | ||||
| 7 | 315013790 | 10.38 | 12.56 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151180 | 1.55 | 1.88 | |
| Luchtgeleidingsschijf | ||||
| 9 | 339151200 | 1.55 | 1.88 | |
| Electro unit with switch | ||||
| 10 | 316064460 | 48.48 | 58.66 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.55 | 1.88 | |
| Washer,8.05x17x0.4 | ||||
| 13 | 339133060 | 1.55 | 1.88 | |
| Groefkogellager,8x22x7 | ||||
| 14 | 143115700 | 3.02 | 3.65 | |
| Washer,7.05x19.5x0.2 | ||||
| 15 | 339006390 | 1.55 | 1.88 | |
| Zeskantmoer | ||||
| 16 | 341100940 | 1.67 | 2.02 | |
| Two-piece handle | ||||
| 18 | 316076120 | 16.25 | 19.66 | |
| Handle 2 part | ||||
| 18 | 343439030 | 10.38 | 12.56 | |
| Switch pusher compl. | ||||
| 20 | 316065300 | 2.28 | 2.76 | |
| Beschermkap compl. | ||||
| 23 | 316064830 | 60.59 | 73.31 | |
| No information available, not orderable | ||||
| 25 | 399999990 | |||
| Complete attachment shaft, M14 | ||||
| 26 | 316052550 | 87.60 | 106.00 | |
| Gasket | ||||
| 30 | 339012430 | 1.55 | 1.88 | |
| Fill. head screw(DIN 7985) | ||||
| 31 | 141121640 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141116980 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141117060 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 34 | 338068900 | 1.55 | 1.88 | |
| Dish Wheel with Gear | ||||
| 52 | 316066130 | 60.59 | 73.31 | |
| Tandwielflens compl. | ||||
| 53 | 316067080 | 175.84 | 212.77 | |
| Getriebegehaeuse vollst | ||||
| 54 | 316064710 | 32.27 | 39.05 | |
| Complete Planetary Gear Set | ||||
| 56 | 316066110 | 67.33 | 81.47 | |
| Waaier m. Stofbeschermkorf | ||||
| 57 | 316054850 | 3.71 | 4.49 | |
| Spindle shaft | ||||
| 58 | 341605360 | 13.48 | 16.31 | |
| Knurled screw | ||||
| 59 | 341112840 | 18.80 | 22.75 | |
| Adjusting spring | ||||
| 60 | 141156230 | 1.55 | 1.88 | |
| Retaining ring | ||||
| 61 | 141156650 | 1.55 | 1.88 | |
| O-ring | ||||
| 62 | 143193650 | 1.55 | 1.88 | |
| O-Ring | ||||
| 62 | 143196000 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 63 | 342003390 | 1.55 | 1.88 | |
| Push button | ||||
| 64 | 343433640 | 1.55 | 1.88 | |
| Bolt | ||||
| 65 | 341515640 | 1.55 | 1.88 | |
| Flens compl. | ||||
| 66 | 316066120 | 26.95 | 32.61 | |
| Tachoschijf | ||||
| 70 | 343433060 | 2.28 | 2.76 | |
| Pressure spring | ||||
| 73 | 342004190 | 1.55 | 1.88 | |
| Schakelaar 2-polig,X2 | ||||
| 77 | 343410270 | 10.38 | 12.56 | |
| Brush holder set | ||||
| 87 | 316065420 | 12.23 | 14.80 | |
| Carbon brush set uitsch. | ||||
| 89 | 316065450 | 11.74 | 14.21 | |
| Carbon brush set with holder 230V | ||||
| 124 | 316067170 | 21.64 | 26.18 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338506170 | |||
| Cable with cable entry | ||||
| 1005 | 316067320 | 21.64 | 26.18 | |
