Here you will find all available parts and drawings of the 'Metabo 02115000 ( SE12-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

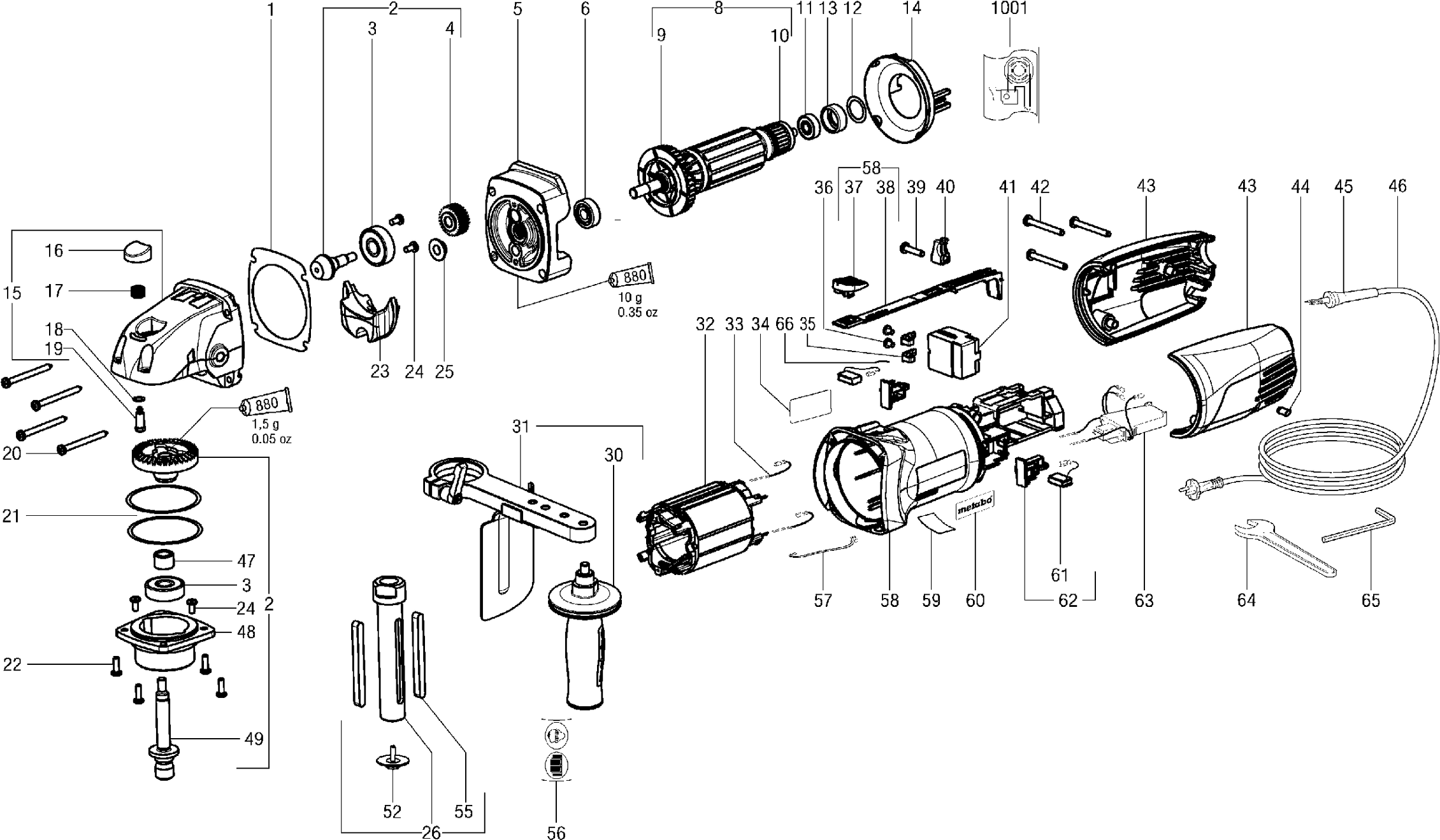

Technical drawing of model Metabo 02115000 ( SE12-115 )
Spare parts list of model Metabo 02115000 ( SE12-115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pakkingset | ||||
| 1 | 316053430 | 10.38 | 12.56 | |
| Tandwielflens compl. | ||||
| 2 | 316039120 | 175.84 | 212.77 | |
| Kogellager 10x30x 9 | ||||
| 3 | 143115650 | 3.02 | 3.65 | |
| spurwheel | ||||
| 4 | 340012470 | 24.23 | 29.32 | |
| Tandwielflens compl. | ||||
| 5 | 316056500 | 67.33 | 81.47 | |
| Ball Bearing, 8x22x7 | ||||
| 6 | 143115060 | 5.87 | 7.10 | |
| Anker 230 V | ||||
| 8 | 310008780 | 87.60 | 106.00 | |
| Fan with dust protection | ||||
| 9 | 316031210 | 10.38 | 12.56 | |
| Tacho disc | ||||
| 10 | 343391120 | 3.71 | 4.49 | |
| Ball bearing 6x19x6 | ||||
| 11 | 143115810 | 2.28 | 2.76 | |
| Washer | ||||
| 12 | 141153340 | 1.55 | 1.88 | |
| Rubber bus | ||||
| 13 | 344095260 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 14 | 339150890 | 1.67 | 2.02 | |
| Tandwielhuis compl. | ||||
| 15 | 316056490 | 100.74 | 121.90 | |
| Drukknop zwart | ||||
| 16 | 343435890 | 3.02 | 3.65 | |
| Pressure spring | ||||
| 17 | 342001550 | 1.55 | 1.88 | |
| Afdichtring | ||||
| 18 | 339006520 | 1.55 | 1.88 | |
| Bolt | ||||
| 19 | 341513790 | 3.71 | 4.49 | |
| Self-tap. fill. h. screw | ||||
| 20 | 341701470 | 1.55 | 1.88 | |
| Compensating Washer | ||||
| 21 | 339060160 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 22 | 141119860 | 1.67 | 2.02 | |
| Steeksleutel | ||||
| 23 | 343390900 | 1.55 | 1.88 | |
| Bolcilinderkop draadvorm | ||||
| 24 | 141119570 | 1.55 | 1.88 | |
| Pakkingring | ||||
| 25 | 343378120 | 5.87 | 7.10 | |
| Complete attachment shaft, M14 | ||||
| 26 | 316052550 | 87.60 | 106.00 | |
| Handgreep extra compl. | ||||
| 30 | 316046590 | 8.89 | 10.76 | |
| Beschermkap compl. | ||||
| 31 | 316064830 | 60.59 | 73.31 | |
| Field | ||||
| 32 | 311009890 | 67.33 | 81.47 | |
| Verbindingsdraad compl. | ||||
| 33 | 344493960 | 1.67 | 2.02 | |
| Typeplaatje | ||||
| 34 | 338046420 | 1.55 | 1.88 | |
| Flat plug | ||||
| 35 | 339080310 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 36 | 141115780 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 37 | 343394180 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 38 | 343391880 | 1.55 | 1.88 | |
| Self-tap fill h screw | ||||
| 39 | 141116020 | 1.67 | 2.02 | |
| Cable clip | ||||
| 40 | 343362490 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 41 | 343406740 | 18.80 | 22.75 | |
| Self-tap. fill. h. screw | ||||
| 42 | 141116990 | 1.67 | 2.02 | |
| Engine hood 2-piece black | ||||
| 43 | 343375710 | 5.87 | 7.10 | |
| Lichtgeleider | ||||
| 44 | 343077280 | 1.55 | 1.88 | |
| Kabeldoorvoer | ||||
| 45 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 46 | 344493180 | 21.64 | 26.18 | |
| Afstandshuls | ||||
| 47 | 341012770 | 11.74 | 14.21 | |
| Flange | ||||
| 48 | 315202480 | 32.27 | 39.05 | |
| Spindle shaft | ||||
| 49 | 341603920 | 24.23 | 29.32 | |
| Knurled screw | ||||
| 52 | 341112840 | 18.80 | 22.75 | |
| Adjusting spring | ||||
| 55 | 141156230 | 1.55 | 1.88 | |
| Gebodsteken (gebruiksaanwijzing lezen) | ||||
| 56 | 338117240 | 1.55 | 1.88 | |
| Temperatuurvoeler | ||||
| 57 | 343077490 | 10.38 | 12.56 | |
| Motorgehaeuse mit Drueckereinheit | ||||
| 58 | 316052200 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 59 | 399999990 | |||
| No longer available, no replacement | ||||
| 60 | 338122160 | |||
| Koolborstel set | ||||
| 61 | 316035510 | 12.23 | 14.80 | |
| Koolborstelhouder | ||||
| 62 | 316035480 | 11.74 | 14.21 | |
| Elektronische unit,230V 50-60Hz | ||||
| 63 | 343082120 | 48.48 | 58.66 | |
| Steeksleutel | ||||
| 64 | 344161300 | 5.87 | 7.10 | |
| Angle screwdriver | ||||
| 65 | 344161520 | 1.67 | 2.02 | |
| Rubber snoer | ||||
| 66 | 344097440 | 1.55 | 1.88 | |
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338504140 | |||
