Here you will find all available parts and drawings of the 'Metabo 31943000 (SDSWISSELBOORHOUDERKHE3251)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

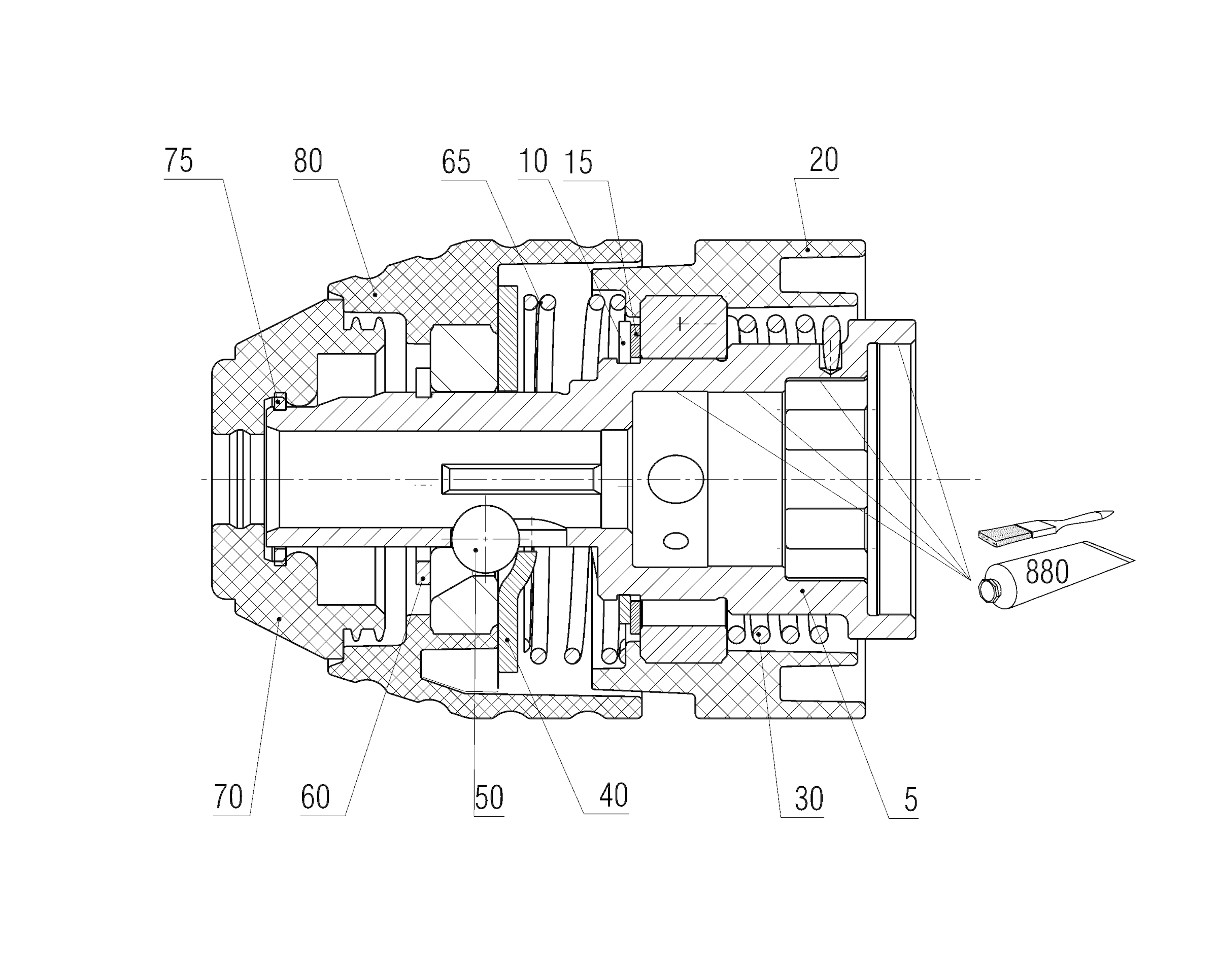

Technical drawing of model Metabo 31943000 (SDSWISSELBOORHOUDERKHE3251)
Spare parts list of model Metabo 31943000 (SDSWISSELBOORHOUDERKHE3251)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tool driving sleeve | ||||
| 5 | 341059510 | 35.72 | 43.22 | |
| Retaining ring | ||||
| 10 | 141180150 | 1.67 | 2.02 | |
| Washer | ||||
| 15 | 141155440 | 1.67 | 2.02 | |
| Adjusting ring | ||||
| 20 | 343398930 | 6.05 | 7.32 | |
| Torsion spring | ||||
| 30 | 342021650 | 3.20 | 3.87 | |
| Ball | ||||
| 35 | 143120300 | 1.67 | 2.02 | |
| Geleidingsplaat | ||||
| 40 | 339007470 | 1.67 | 2.02 | |
| Ball | ||||
| 50 | 143120320 | 1.67 | 2.02 | |
| Retaining ring | ||||
| 60 | 141155460 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 65 | 342003840 | 1.67 | 2.02 | |
| Rubber cap | ||||
| 70 | 343430090 | 2.43 | 2.94 | |
| Borgveer-ring | ||||
| 75 | 141156010 | 1.67 | 2.02 | |
| Verstelring | ||||
| 80 | 343430060 | 6.05 | 7.32 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 21.22 | 25.68 | |
