Here you will find all available parts and drawings of the 'Metabo 00784000 (SBEV1100-2S)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

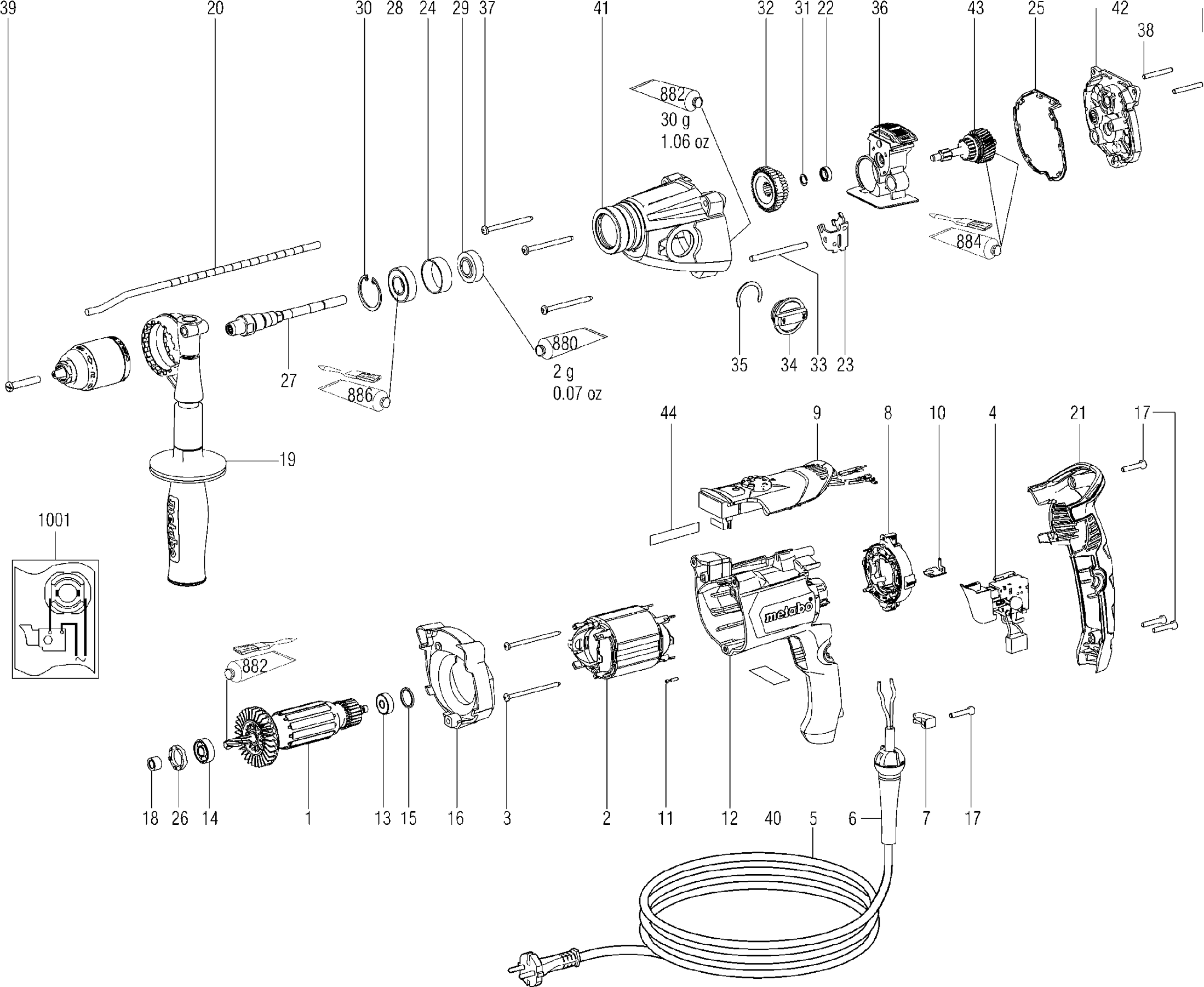

Technical drawing of model Metabo 00784000 (SBEV1100-2S)
Spare parts list of model Metabo 00784000 (SBEV1100-2S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl.,230 V | ||||
| 1 | 310011650 | 67.33 | 81.47 | |
| Field | ||||
| 2 | 311011630 | 24.23 | 29.32 | |
| Self-tap. fill. h. screw | ||||
| 3 | 141118260 | 1.56 | 1.89 | |
| Potentioschakelaar | ||||
| 4 | 343410950 | 12.23 | 14.80 | |
| Kabel m. CEE-stekker | ||||
| 5 | 344493180 | 21.64 | 26.18 | |
| Kabeldoorvoer | ||||
| 6 | 343394300 | 1.68 | 2.03 | |
| Cable clip | ||||
| 7 | 343362490 | 1.68 | 2.03 | |
| Carbon brush holder module, 230V | ||||
| 8 | 316051960 | 12.23 | 14.80 | |
| Elektro.unit,230V 50/60Hz | ||||
| 9 | 343084840 | 37.65 | 45.56 | |
| Carbon Brush Contact | ||||
| 10 | 339129390 | 3.02 | 3.65 | |
| Temperatuurvoeler | ||||
| 11 | 343081600 | 4.51 | 5.46 | |
| Motor housing | ||||
| 12 | 315013700 | 13.48 | 16.31 | |
| Groefkogellager,6x19x6 | ||||
| 13 | 143115690 | 2.28 | 2.76 | |
| Ball bearing 8x22x 7 | ||||
| 14 | 143114880 | 3.02 | 3.65 | |
| O-ring | ||||
| 15 | 143192430 | 1.68 | 2.03 | |
| Zwischenflansch | ||||
| 16 | 343438150 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 17 | 141117060 | 1.68 | 2.03 | |
| Afdichtring | ||||
| 18 | 343376040 | 1.68 | 2.03 | |
| Handgreep compl. | ||||
| 19 | 314001020 | 12.23 | 14.80 | |
| Dieptegeleider | ||||
| 20 | 341511630 | 4.51 | 5.46 | |
| Handgreepdeksel | ||||
| 21 | 343438030 | 7.22 | 8.74 | |
| Bushing | ||||
| 22 | 341006420 | 2.28 | 2.76 | |
| Schakelvork | ||||
| 23 | 339133070 | 2.28 | 2.76 | |
| Afstandshuls | ||||
| 24 | 341005960 | 3.71 | 4.49 | |
| Vormpakking | ||||
| 25 | 344101830 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 26 | 344095920 | 1.56 | 1.89 | |
| Spindle | ||||
| 27 | 341604850 | 24.23 | 29.32 | |
| Kogellager 15x32x 9 | ||||
| 28 | 143115790 | 3.71 | 4.49 | |
| Slotted disc | ||||
| 29 | 341055650 | 3.71 | 4.49 | |
| Retaining ring | ||||
| 30 | 141181680 | 1.56 | 1.89 | |
| Circlip | ||||
| 31 | 141156600 | 1.56 | 1.89 | |
| Schuifblok | ||||
| 32 | 340004410 | 5.87 | 7.10 | |
| Geleidingsstift | ||||
| 33 | 341540230 | 1.56 | 1.89 | |
| Schakelknop compl. | ||||
| 34 | 316062600 | 1.68 | 2.03 | |
| Half-moon washer | ||||
| 35 | 141155810 | 1.56 | 1.89 | |
| Switch housing compl. | ||||
| 36 | 316063490 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 37 | 141118840 | 1.56 | 1.89 | |
| Cilinderstift | ||||
| 38 | 341520230 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 39 | 341701940 | 1.68 | 2.03 | |
| Leistungsschild 00784000 SBEV 1100-2 S | ||||
| 40 | 338067810 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 41 | 316064610 | 100.74 | 121.90 | |
| Tandwielflens compl. | ||||
| 42 | 316064590 | 32.27 | 39.05 | |
| Tandwielas m.veiligh.kopp. | ||||
| 43 | 316064560 | 43.15 | 52.21 | |
| No information available, not orderable | ||||
| 44 | 399999990 | |||
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Tube of grease 50 gr. SF 126 | ||||
| 882 | 344130800 | 18.80 | 22.75 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 884 | 344130560 | 32.27 | 39.05 | |
| Grease tube 50 gr. 1,8oz | ||||
| 886 | 344131030 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338506120 | |||
