Here you will find all available parts and drawings of the 'Metabo 00842000 ( SBE850 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

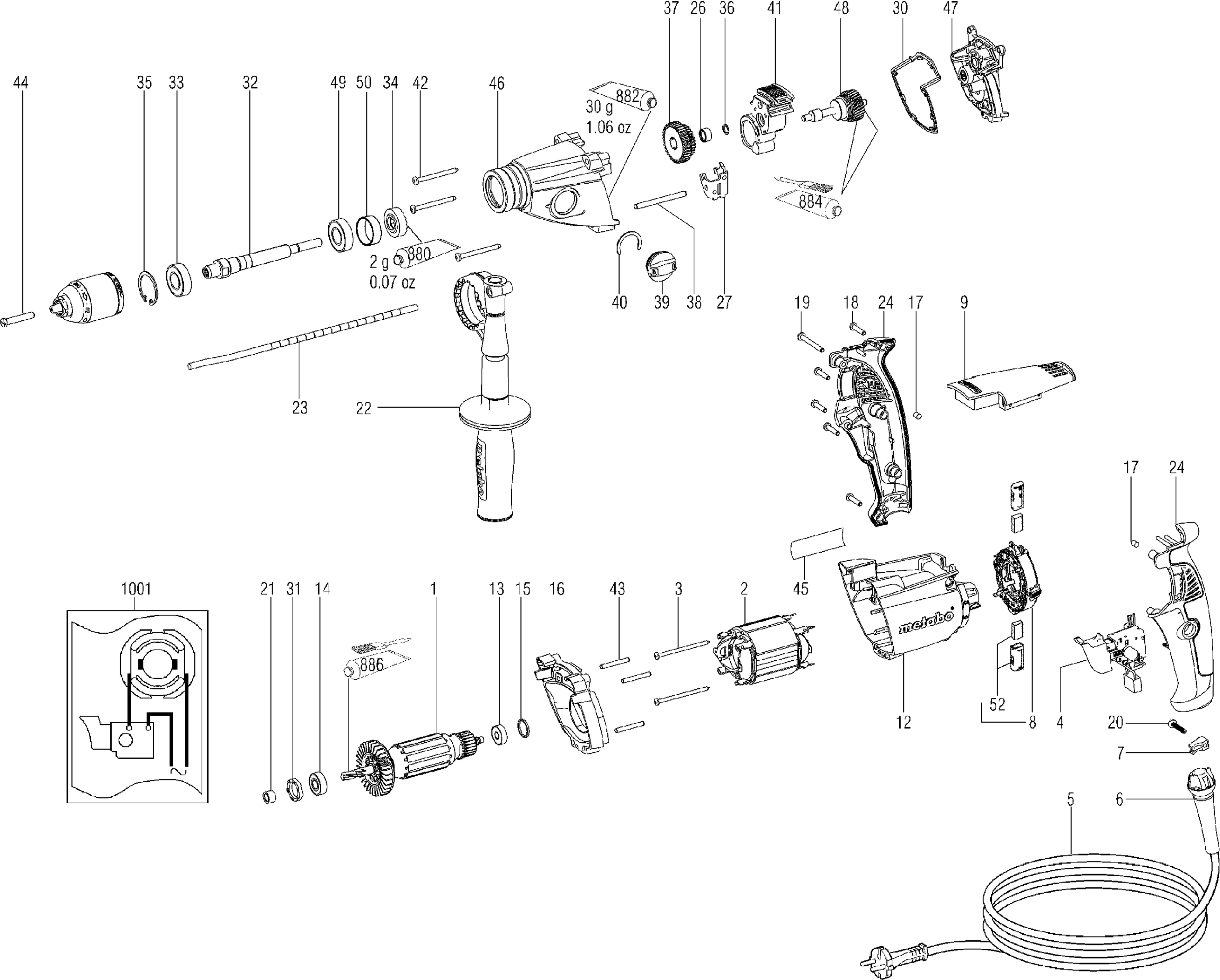

Technical drawing of model Metabo 00842000 ( SBE850 )

Spare parts list of model Metabo 00842000 ( SBE850 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anker compl.,230 V
1 310010280 67.33 81.47
Field package m.winding,230 V
2 311010790 32.27 39.05
Self-tap. fill. h. screw
3 141118260 1.55 1.88
Electronic Switch with Dial
4 343409220 18.80 22.75
Kabel m. CEE-stekker
5 344493180 21.64 26.18
Kabeldoorvoer
6 343394300 1.67 2.02
Cable clip
7 343362490 1.67 2.02
Carbon brush holder module, 230V - V-EI. 85
8 316051990 12.23 14.80
Deksel zonder elektronica
9 343394070 3.02 3.65
Motor housing
12 315013250 12.23 14.80
Ball bearing 6x19x6
13 143115810 2.28 2.76
Kogellager 8x22x 7
14 143115800 2.28 2.76
O-ring
15 143192430 1.67 2.02
Tussenflens
16 343394750 1.67 2.02
Rubberen stop
17 344097580 1.55 1.88
Self-tap fill h screw
18 141116020 1.67 2.02
Self-tap. fill. h. screw
19 141116990 1.67 2.02
Self-tap. fill. h. screw
20 141117060 1.67 2.02
Afdichtring
21 343376040 1.67 2.02
Side support handle compl.
22 314001030 12.23 14.80
Dieptegeleider
23 341511630 4.51 5.46
2-piece Pistol Grip, with Rubber
24 343398530 10.38 12.56
Bush
26 341005970 2.28 2.76
Schakelvork
27 339133070 2.28 2.76
Retaining ring
28 141156590 1.55 1.88
Vormpakking
30 344097930 1.55 1.88
Rubber buffer
31 344095920 1.55 1.88
Spindle
32 341604340 26.95 32.61
Slotted disc
34 341055650 3.71 4.49
Retaining ring
35 141181680 1.55 1.88
Circlip
36 141156600 1.55 1.88
Sliding gear
37 340004010 8.89 10.76
Guide pin
38 341540010 4.51 5.46
Schakelknop compl.
39 316041960 2.28 2.76
Half-moon washer
40 141155810 1.55 1.88
Schakelhuis compl.
41 316041940 8.89 10.76
Self-tap. fill. h. screw
42 141123610 1.55 1.88
Cilinderstift
43 341520230 1.55 1.88
Cilinderkopschroef
44 341701940 1.67 2.02
Leistungsschild
45 338057320 1.55 1.88
Tandwielhuis compl.
46 316051540 107.70 130.32
Tandwielflens compl.
47 316042800 32.27 39.05
Gearshaft with safety coupling
48 316042820 48.48 58.66
Kogellager 15x32x 9
49 143115790 3.71 4.49
Afstandshuls
50 341005960 3.71 4.49
Koolborstelset,230 V
52 316046950 12.23 14.80
Grease tube 50 gr. 1,8oz
880 344130930 32.27 39.05
Tube of grease 50 gr. SF 126
882 344130800 18.80 22.75
Grease Tube 50 gr. SF 011 1,8oz
884 344130560 32.27 39.05
Grease tube 50 gr. 1,8oz
886 344131030 13.48 16.31
No information available, not orderable
1001 338505150
