Here you will find all available parts and drawings of the 'Metabo 00841000 ( SBE760 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

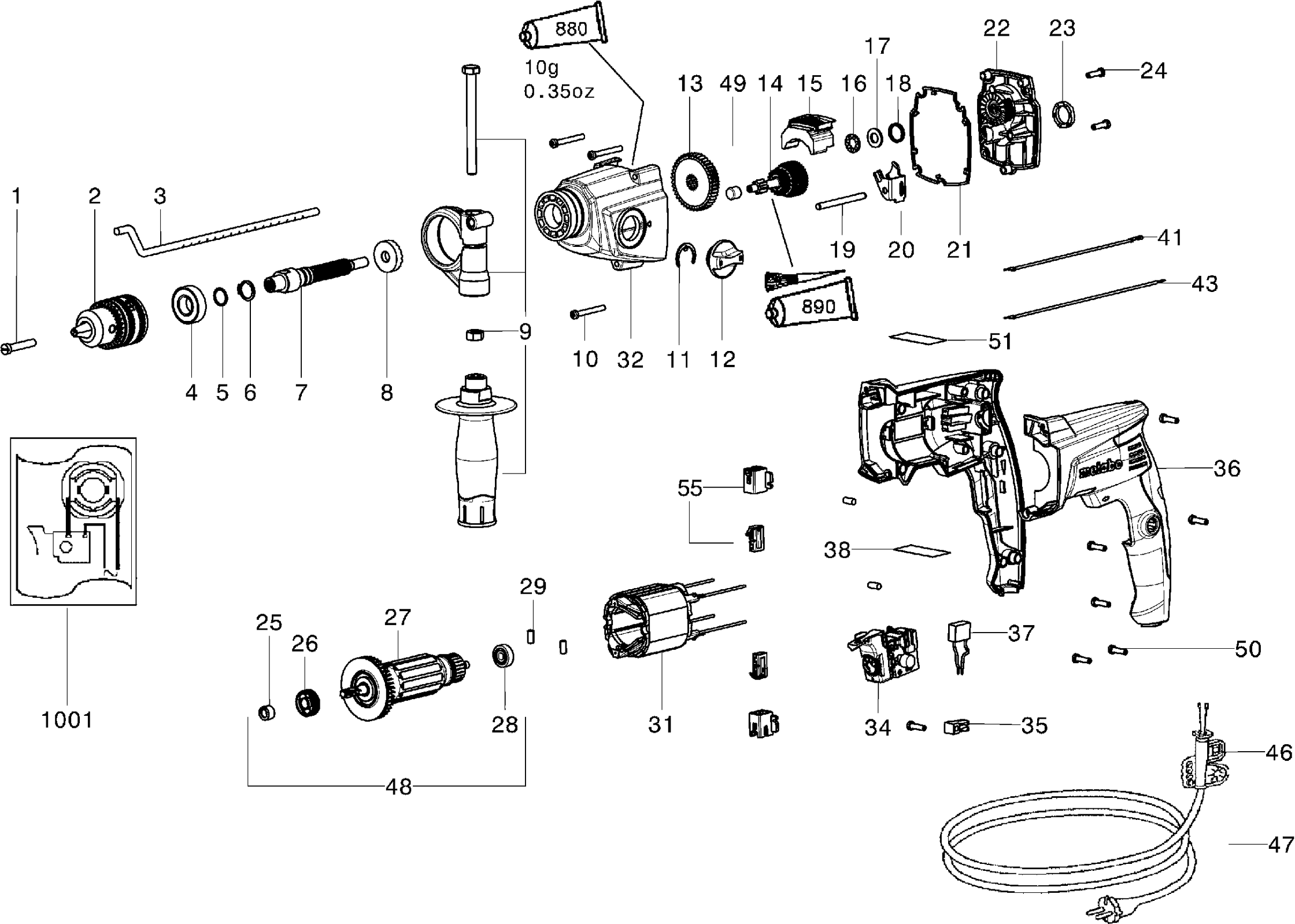

Technical drawing of model Metabo 00841000 ( SBE760 )
Spare parts list of model Metabo 00841000 ( SBE760 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.67 | 2.02 | |
| Quick release drill chuck,1.5-13 | ||||
| 2 | 301003140 | 43.15 | 52.21 | |
| Dieptegeleider | ||||
| 3 | 341511630 | 4.51 | 5.46 | |
| Kogellager 15x32x 9 | ||||
| 4 | 143112030 | 18.80 | 22.75 | |
| O-ring,12.5 x 1.5 | ||||
| 5 | 344099350 | 1.55 | 1.88 | |
| snap ring | ||||
| 6 | 141180090 | 1.67 | 2.02 | |
| Bohrspindel | ||||
| 7 | 341604410 | 21.64 | 26.18 | |
| Nokkenschijf voor | ||||
| 8 | 341071250 | 3.02 | 3.65 | |
| Handgreep compl. | ||||
| 9 | 314000840 | 8.89 | 10.76 | |
| Screw | ||||
| 10 | 341704820 | 1.55 | 1.88 | |
| Snapring,C | ||||
| 11 | 342022300 | 1.55 | 1.88 | |
| Schakelaar compl. | ||||
| 12 | 316052720 | 4.51 | 5.46 | |
| Schuifblok | ||||
| 13 | 340004310 | 11.74 | 14.21 | |
| Tandwielas compl. | ||||
| 14 | 316052760 | 26.95 | 32.61 | |
| Schakelaar compl. | ||||
| 15 | 316052710 | 4.51 | 5.46 | |
| Kogelhouder | ||||
| 16 | 320050470 | 1.55 | 1.88 | |
| Friction Washer | ||||
| 17 | 339006470 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 18 | 342003880 | 1.55 | 1.88 | |
| Guide pin | ||||
| 19 | 341540190 | 1.55 | 1.88 | |
| Schakelvork | ||||
| 20 | 339135810 | 1.55 | 1.88 | |
| Afdichtring | ||||
| 21 | 343432800 | 1.55 | 1.88 | |
| Tandwielflens compl. | ||||
| 22 | 316052730 | 26.95 | 32.61 | |
| Rubber buffer | ||||
| 23 | 344095920 | 1.55 | 1.88 | |
| Schroef ,ST 4,2x15 TX20 | ||||
| 24 | 341704850 | 1.55 | 1.88 | |
| Centrifugeerschijf | ||||
| 25 | 343398310 | 1.55 | 1.88 | |
| Kogellager 8x22x 7 | ||||
| 26 | 143115800 | 2.28 | 2.76 | |
| Anker compl.,230V | ||||
| 27 | 310010660 | 37.65 | 45.56 | |
| Kogellager 6x19x 6 | ||||
| 28 | 143115660 | 2.28 | 2.76 | |
| Rubber stop | ||||
| 29 | 344092220 | 1.55 | 1.88 | |
| Field | ||||
| 31 | 311012030 | 24.23 | 29.32 | |
| Tandwielhuis | ||||
| 32 | 315013490 | 10.38 | 12.56 | |
| Elektro.schakelaar | ||||
| 34 | 343409980 | 18.80 | 22.75 | |
| Cable clip | ||||
| 35 | 343362490 | 1.67 | 2.02 | |
| Motor housing | ||||
| 36 | 315013480 | 18.80 | 22.75 | |
| Ontstoringscondensator | ||||
| 37 | 343254560 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 38 | 338058880 | 1.55 | 1.88 | |
| Strand | ||||
| 41 | 344499150 | 1.55 | 1.88 | |
| Strand | ||||
| 43 | 344499140 | 1.55 | 1.88 | |
| Kabeldoorvoer | ||||
| 46 | 344100590 | 2.28 | 2.76 | |
| Kabel m. stekker | ||||
| 47 | 344498420 | 7.22 | 8.74 | |
| Anker compl. | ||||
| 48 | 316052740 | 53.86 | 65.17 | |
| Naaldlager | ||||
| 49 | 143115480 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 50 | 141116020 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 51 | 399999990 | |||
| Koolborstelset | ||||
| 55 | 343013250 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 880 | 145011260 | |||
| Grease SF 011 P/KG | ||||
| 890 | 145010110 | 134.27 | 162.47 | |
| No information available, not orderable | ||||
| 1001 | 338505760 | |||
