Here you will find all available parts and drawings of the 'Metabo 00731000 (SBE730)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

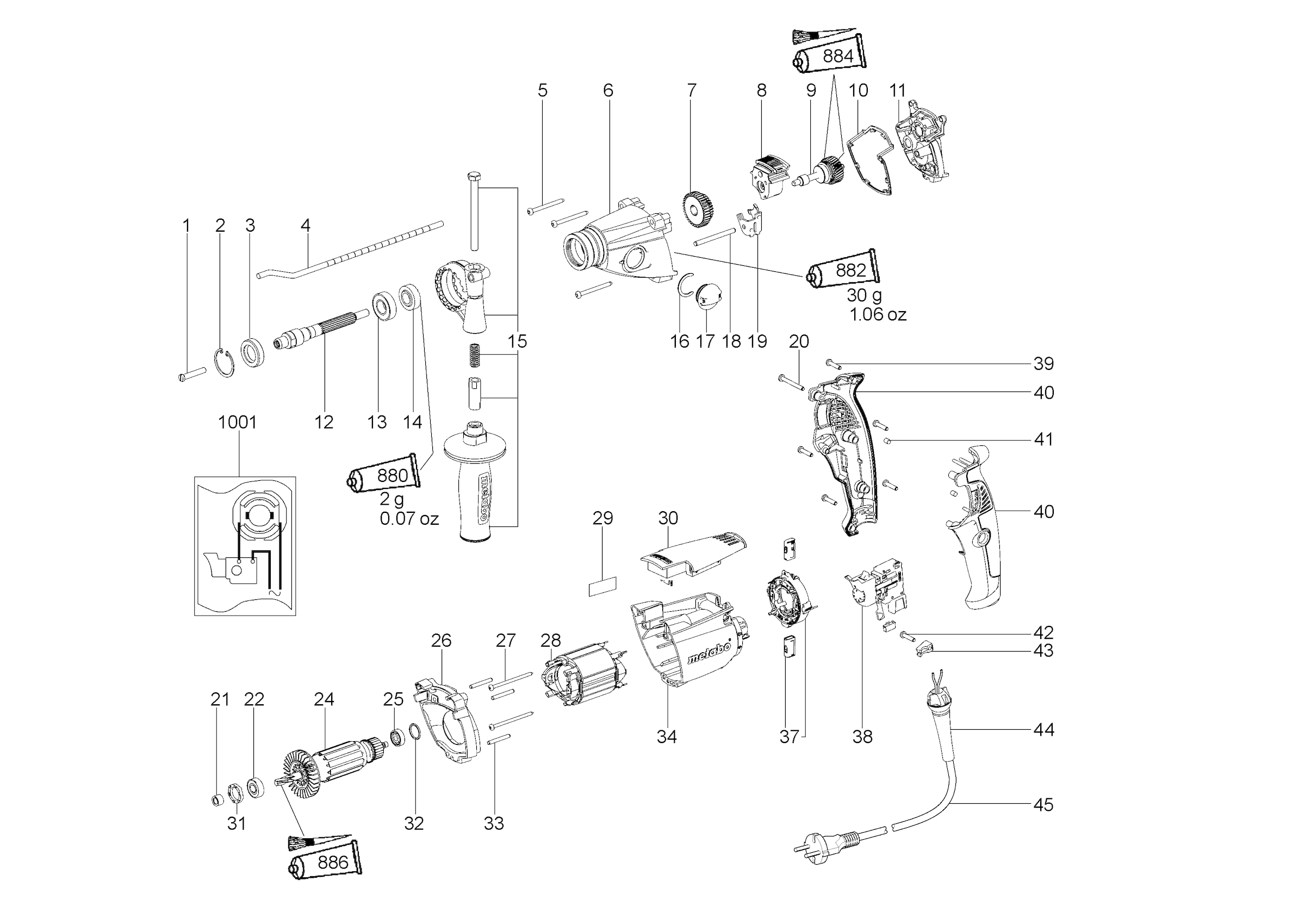

Technical drawing of model Metabo 00731000 (SBE730)
Spare parts list of model Metabo 00731000 (SBE730)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.68 | 2.03 | |
| Retaining ring | ||||
| 2 | 141181680 | 1.56 | 1.89 | |
| Gegolfde dichtring | ||||
| 3 | 339210920 | 1.56 | 1.89 | |
| Dieptegeleider | ||||
| 4 | 341511630 | 4.51 | 5.46 | |
| Self-tap. fill. h. screw | ||||
| 5 | 141123610 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 6 | 316042790 | 60.59 | 73.31 | |
| Sliding gear | ||||
| 7 | 340004010 | 8.89 | 10.76 | |
| Schakelhuis compl. | ||||
| 8 | 316041940 | 8.89 | 10.76 | |
| Gearshaft with safety coupling | ||||
| 9 | 316042820 | 48.48 | 58.66 | |
| Vormpakking | ||||
| 10 | 344097930 | 1.56 | 1.89 | |
| Tandwielflens compl. | ||||
| 11 | 316042800 | 32.27 | 39.05 | |
| Drill spindle | ||||
| 12 | 341604020 | 21.64 | 26.18 | |
| Kogellager 15x32x 9 | ||||
| 13 | 143115790 | 3.71 | 4.49 | |
| Slotted disc | ||||
| 14 | 341055650 | 3.71 | 4.49 | |
| Side support handle compl. | ||||
| 15 | 314001030 | 12.23 | 14.80 | |
| Half-moon washer | ||||
| 16 | 141155810 | 1.56 | 1.89 | |
| Schakelknop compl. | ||||
| 17 | 316041960 | 2.28 | 2.76 | |
| Guide pin | ||||
| 18 | 341540010 | 4.51 | 5.46 | |
| Schakelvork | ||||
| 19 | 339133070 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 20 | 141116990 | 1.68 | 2.03 | |
| Afdichtring | ||||
| 21 | 343376040 | 1.68 | 2.03 | |
| Kogellager 8x22x 7 | ||||
| 22 | 143115800 | 2.28 | 2.76 | |
| Anker compl.,230 V | ||||
| 24 | 310009220 | 67.33 | 81.47 | |
| Ball bearing 6x19x6 | ||||
| 25 | 143115810 | 2.28 | 2.76 | |
| Tussenflens | ||||
| 26 | 343394750 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 27 | 141118260 | 1.56 | 1.89 | |
| Field package m.winding,230 V | ||||
| 28 | 311010790 | 32.27 | 39.05 | |
| Typeplaatje | ||||
| 29 | 338053420 | 1.56 | 1.89 | |
| Deksel zonder elektronica | ||||
| 30 | 343394070 | 3.02 | 3.65 | |
| Rubber buffer | ||||
| 31 | 344095920 | 1.56 | 1.89 | |
| O-ring | ||||
| 32 | 143192430 | 1.68 | 2.03 | |
| Cilinderstift | ||||
| 33 | 341520230 | 1.56 | 1.89 | |
| Motor housing | ||||
| 34 | 315013250 | 12.23 | 14.80 | |
| Carbon brush holder module, 230V - V-EI. 85 | ||||
| 37 | 316051990 | 12.23 | 14.80 | |
| Electronic Switch with Dial | ||||
| 38 | 343409220 | 18.80 | 22.75 | |
| Self-tap fill h screw | ||||
| 39 | 141116020 | 1.68 | 2.03 | |
| 2-piece Pistol Grip, with Rubber | ||||
| 40 | 343398530 | 10.38 | 12.56 | |
| Rubberen stop | ||||
| 41 | 344097580 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 42 | 141117060 | 1.68 | 2.03 | |
| Cable clip | ||||
| 43 | 343362490 | 1.68 | 2.03 | |
| Kabeldoorvoer | ||||
| 44 | 343394300 | 1.68 | 2.03 | |
| Cable with CEE plug | ||||
| 45 | 344485880 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 1001 | 338505150 | |||
