Here you will find all available parts and drawings of the 'Metabo 00743000 (SBE650Impuls)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

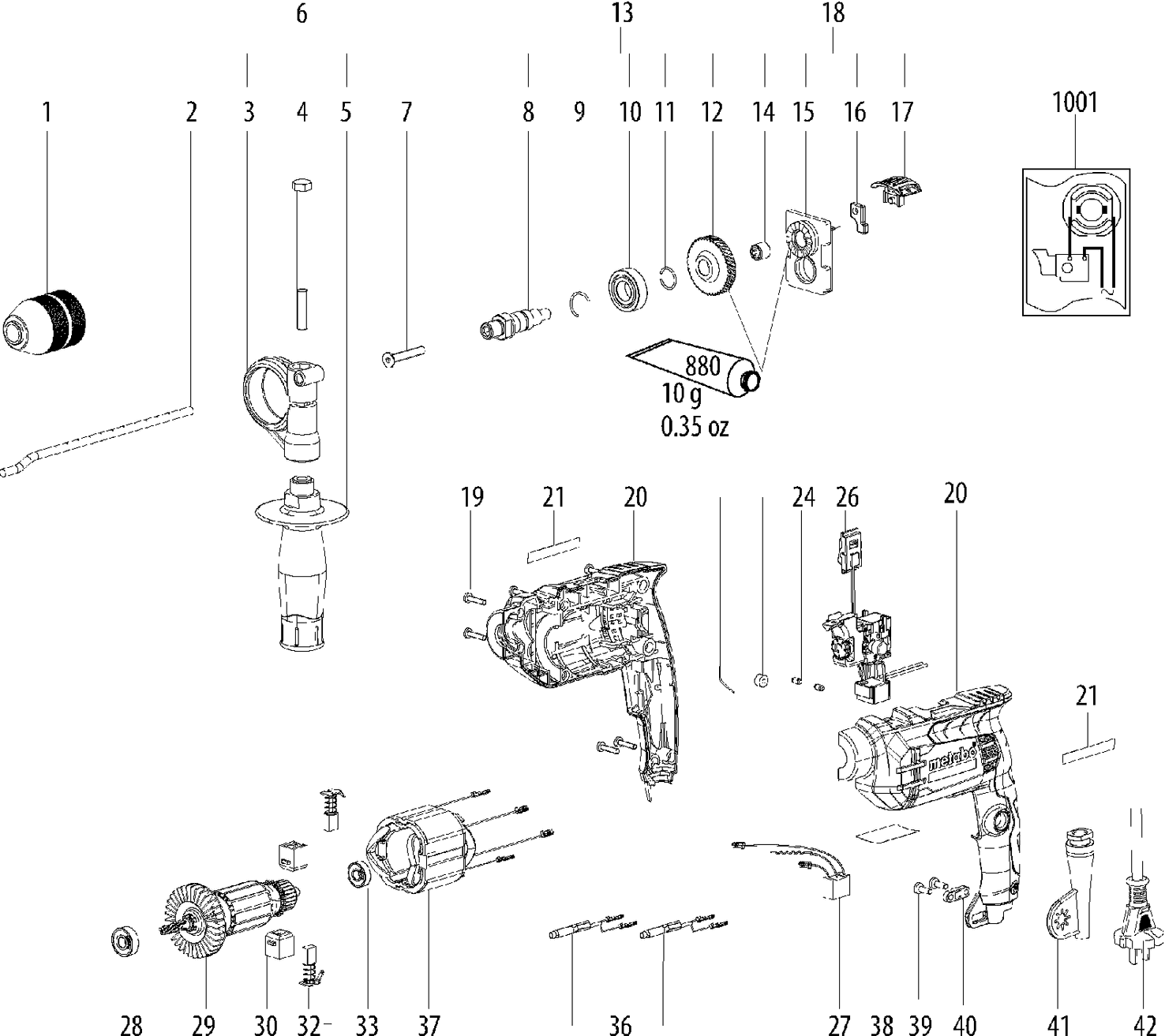

Technical drawing of model Metabo 00743000 (SBE650Impuls)
Spare parts list of model Metabo 00743000 (SBE650Impuls)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 301003610 | |||
| Dieptegeleider | ||||
| 2 | 341511630 | 4.51 | 5.46 | |
| Clamping piece | ||||
| 3 | 343359780 | 5.18 | 6.27 | |
| Zeskantschroef | ||||
| 4 | 141116160 | 1.68 | 2.03 | |
| Handgreep compl. | ||||
| 6 | 314000840 | 8.89 | 10.76 | |
| Platverzonken schroef | ||||
| 7 | 141122180 | 1.68 | 2.03 | |
| Spindle CSP 132 E vollst. | ||||
| 8 | 341605950 | 5.87 | 7.10 | |
| Spring | ||||
| 9 | 342022800 | 1.56 | 1.89 | |
| BALL BEARING | ||||
| 10 | 320051020 | 8.89 | 10.76 | |
| Spring washer | ||||
| 11 | 342023910 | 1.56 | 1.89 | |
| Drive | ||||
| 12 | 341163130 | 8.89 | 10.76 | |
| Spindle compl. | ||||
| 13 | 316071690 | 12.23 | 14.80 | |
| NEEDLE BEARING | ||||
| 14 | 320051050 | 7.22 | 8.74 | |
| Cam | ||||
| 15 | 341213840 | 3.71 | 4.49 | |
| Adjusting Plate | ||||
| 16 | 339141520 | 1.56 | 1.89 | |
| Switch OSC 18 | ||||
| 17 | 343454920 | 1.56 | 1.89 | |
| Gear flange cpl. | ||||
| 18 | 316071740 | 5.87 | 7.10 | |
| Self-tap. fill. h. screw | ||||
| 19 | 141118730 | 1.56 | 1.89 | |
| Motor housing complete | ||||
| 20 | 316071710 | 13.48 | 16.31 | |
| Type plate HK 85 EB 230V | ||||
| 21 | 338133690 | 1.68 | 2.03 | |
| Rubber Support | ||||
| 24 | 344103010 | 1.56 | 1.89 | |
| Switch | ||||
| 26 | 343412740 | 26.95 | 32.61 | |
| CAPACITOR | ||||
| 27 | 343255310 | 1.56 | 1.89 | |
| BALL BEARING | ||||
| 28 | 320051030 | 7.22 | 8.74 | |
| Armature,230V | ||||
| 29 | 310013450 | 21.64 | 26.18 | |
| Carbon brush holder complete | ||||
| 30 | 316071730 | 3.71 | 4.49 | |
| Carbon brush set, 230 V | ||||
| 32 | 316071660 | 3.02 | 3.65 | |
| BALL BEARING | ||||
| 33 | 320051040 | 7.22 | 8.74 | |
| Choke coil set | ||||
| 36 | 316071750 | 1.56 | 1.89 | |
| Field package,230V | ||||
| 37 | 311013520 | 12.23 | 14.80 | |
| Type plate HK 85 EB 230V | ||||
| 38 | 338075790 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 39 | 141118730 | 1.56 | 1.89 | |
| CORD CLAMP | ||||
| 40 | 343454910 | 1.56 | 1.89 | |
| Cable sleeve DRP 18 | ||||
| 41 | 344103020 | 1.56 | 1.89 | |
| CABLE WITH PLUG | ||||
| 42 | 344533190 | 8.89 | 10.76 | |
| Grease Tube | ||||
| 880 | 344131400 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 1001 | 338510750 | |||
