Here you will find all available parts and drawings of the 'Metabo 00845000 (SBE18LTX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

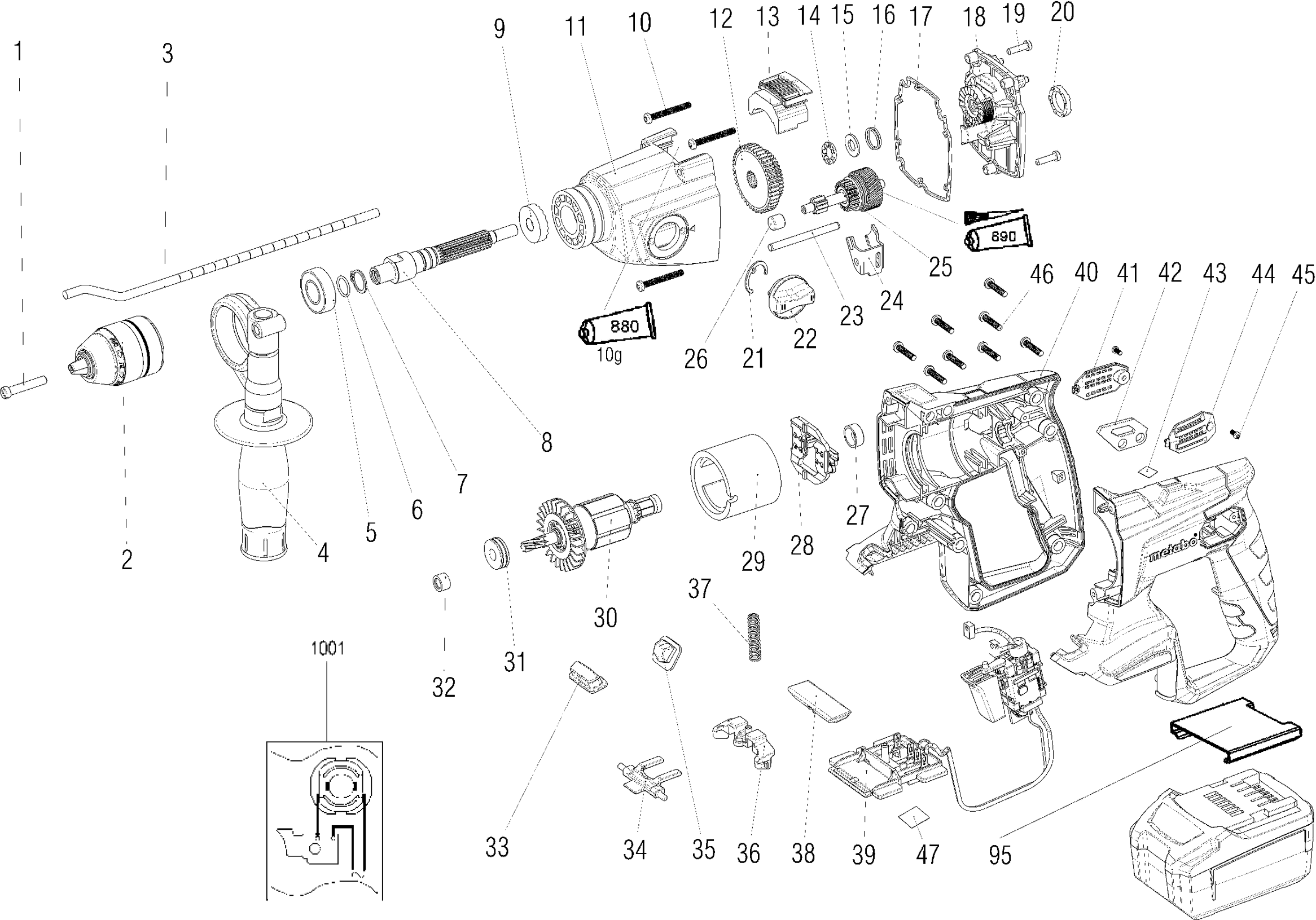

Technical drawing of model Metabo 00845000 (SBE18LTX)
Spare parts list of model Metabo 00845000 (SBE18LTX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341705010 | 1.56 | 1.89 | |
| Quick release drill chuck,1.5-13 | ||||
| 2 | 301003140 | 43.15 | 52.21 | |
| Dieptegeleider | ||||
| 3 | 341511630 | 4.51 | 5.46 | |
| Handgreep compl. | ||||
| 4 | 314000840 | 8.89 | 10.76 | |
| Groefkogellager | ||||
| 5 | 143115520 | 5.18 | 6.27 | |
| O-ring,12.5 x 1.5 | ||||
| 6 | 344099350 | 1.56 | 1.89 | |
| snap ring | ||||
| 7 | 141180090 | 1.68 | 2.03 | |
| Bohrspindel | ||||
| 8 | 341604410 | 21.64 | 26.18 | |
| Nokkenschijf voor | ||||
| 9 | 341071250 | 3.02 | 3.65 | |
| Screw | ||||
| 10 | 341704820 | 1.56 | 1.89 | |
| Tandwielhuis | ||||
| 11 | 315013490 | 10.38 | 12.56 | |
| Schuifblok | ||||
| 12 | 340004310 | 11.74 | 14.21 | |
| Schakelaar compl. | ||||
| 13 | 316052710 | 4.51 | 5.46 | |
| Kogelhouder | ||||
| 14 | 320050470 | 1.56 | 1.89 | |
| Friction Washer | ||||
| 15 | 339006470 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 16 | 342003880 | 1.56 | 1.89 | |
| Afdichtring | ||||
| 17 | 343432800 | 1.56 | 1.89 | |
| Tandwielflens compl. | ||||
| 18 | 316095080 | 26.95 | 32.61 | |
| Schroef ,ST 4,2x15 TX20 | ||||
| 19 | 341704850 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 20 | 344095920 | 1.56 | 1.89 | |
| Snapring,C | ||||
| 21 | 342022300 | 1.56 | 1.89 | |
| Schakelaar compl. | ||||
| 22 | 316052720 | 4.51 | 5.46 | |
| Guide pin | ||||
| 23 | 341540190 | 1.56 | 1.89 | |
| Schakelvork | ||||
| 24 | 339135810 | 1.56 | 1.89 | |
| Complete gear axle | ||||
| 25 | 316095090 | 37.65 | 45.56 | |
| Naaldlager | ||||
| 26 | 143115480 | 1.68 | 2.03 | |
| Bus rubber | ||||
| 27 | 344098740 | 1.56 | 1.89 | |
| Carbon brush holder compl., 18 V | ||||
| 28 | 316053210 | 12.23 | 14.80 | |
| Field package compl., 2 poles | ||||
| 29 | 311011880 | 53.86 | 65.17 | |
| Armature | ||||
| 30 | 310011300 | 53.86 | 65.17 | |
| Kogellager, 8X 22X 7 | ||||
| 31 | 143115890 | 4.51 | 5.46 | |
| Centrifugeerschijf | ||||
| 32 | 343398310 | 1.56 | 1.89 | |
| Drukknop geel | ||||
| 33 | 343440140 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 34 | 343410570 | 1.56 | 1.89 | |
| LED cover | ||||
| 35 | 343083380 | 2.28 | 2.76 | |
| Druckplatte | ||||
| 36 | 343440150 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 37 | 342001770 | 1.56 | 1.89 | |
| Switch slide, R+L | ||||
| 38 | 343410560 | 1.56 | 1.89 | |
| Elektro.schakelaar | ||||
| 39 | 343084450 | 87.60 | 106.00 | |
| Motor Housing | ||||
| 40 | 343440130 | 21.64 | 26.18 | |
| Cover right | ||||
| 41 | 343440170 | 1.56 | 1.89 | |
| Hook | ||||
| 42 | 339147510 | 1.68 | 2.03 | |
| Identification plate | ||||
| 43 | 338129940 | 1.68 | 2.03 | |
| Afdekking links | ||||
| 44 | 343440160 | 1.56 | 1.89 | |
| Screw, ST2,9x13 | ||||
| 45 | 341704710 | 1.56 | 1.89 | |
| Self-tap fill h screw | ||||
| 46 | 141116020 | 1.68 | 2.03 | |
| TYPEPLAATJE | ||||
| 47 | 338066850 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 1001 | 338505960 | |||
