Here you will find all available parts and drawings of the 'Metabo 00843000 (SBE1300)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

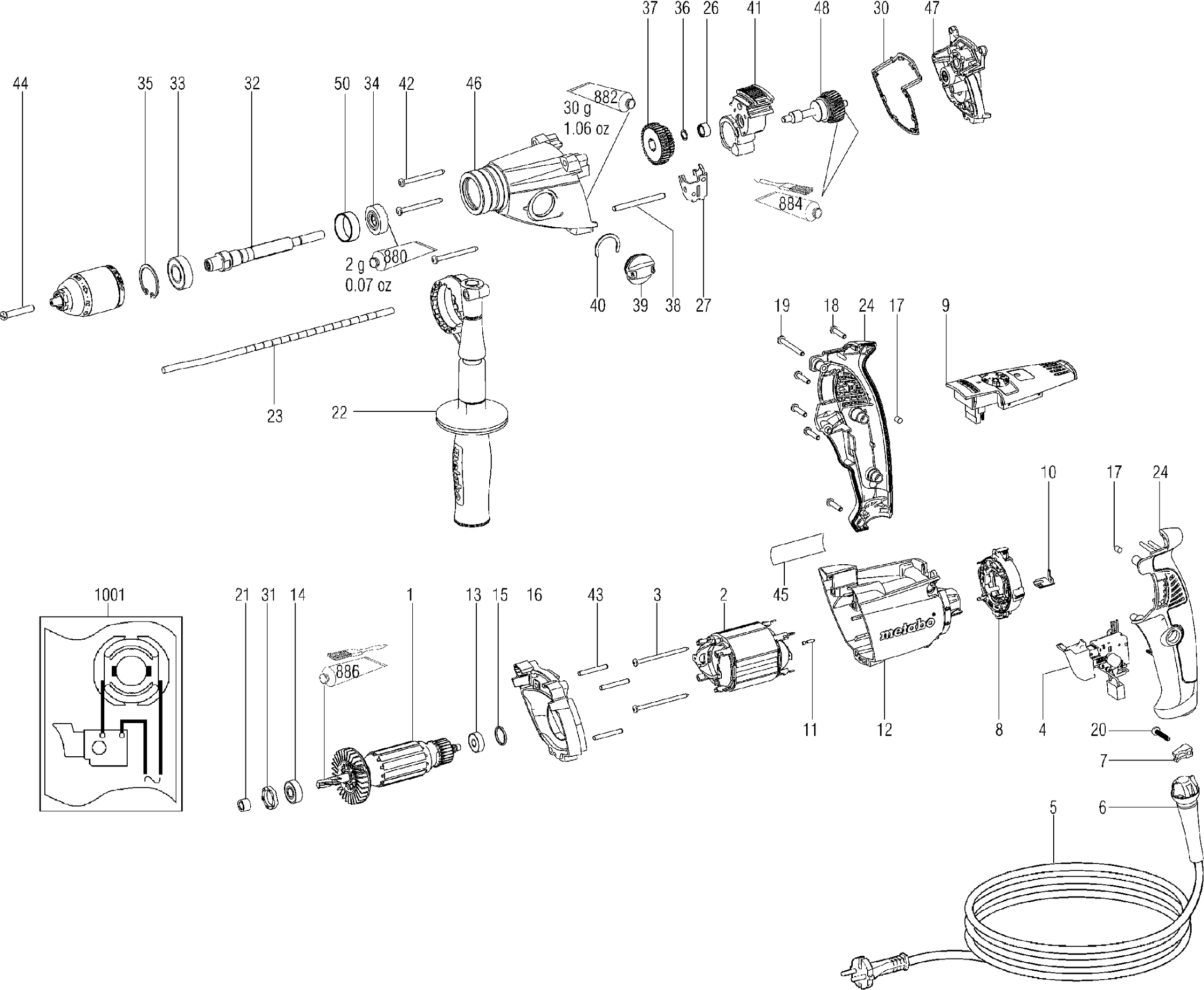

Technical drawing of model Metabo 00843000 (SBE1300)
Spare parts list of model Metabo 00843000 (SBE1300)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl.,230 V | ||||
| 1 | 310010410 | 74.13 | 89.70 | |
| Field | ||||
| 2 | 311011630 | 24.23 | 29.32 | |
| Self-tap. fill. h. screw | ||||
| 3 | 141118260 | 1.56 | 1.89 | |
| Potentioschakelaar | ||||
| 4 | 343409250 | 13.48 | 16.31 | |
| Kabel m. CEE-stekker | ||||
| 5 | 344493180 | 21.64 | 26.18 | |
| Kabeldoorvoer | ||||
| 6 | 343394300 | 1.68 | 2.03 | |
| Cable clip | ||||
| 7 | 343362490 | 1.68 | 2.03 | |
| Carbon brush holder module, 230V | ||||
| 8 | 316051960 | 12.23 | 14.80 | |
| Elektro.unit,230V 50/60Hz | ||||
| 9 | 343083360 | 67.33 | 81.47 | |
| Carbon Brush Contact | ||||
| 10 | 339129390 | 3.02 | 3.65 | |
| Temperatuurvoeler | ||||
| 11 | 343081600 | 4.51 | 5.46 | |
| Motor housing | ||||
| 12 | 315013250 | 12.23 | 14.80 | |
| Ball bearing 6x19x6 | ||||
| 13 | 143115810 | 2.28 | 2.76 | |
| Kogellager 8x22x 7 | ||||
| 14 | 143115800 | 2.28 | 2.76 | |
| O-ring | ||||
| 15 | 143192430 | 1.68 | 2.03 | |
| Tussenflens | ||||
| 16 | 343393930 | 2.28 | 2.76 | |
| Rubberen stop | ||||
| 17 | 344097580 | 1.56 | 1.89 | |
| Self-tap fill h screw | ||||
| 18 | 141116020 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 19 | 141116990 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 20 | 141117060 | 1.68 | 2.03 | |
| Afdichtring | ||||
| 21 | 343376040 | 1.68 | 2.03 | |
| Handgreep compl. | ||||
| 22 | 314001020 | 12.23 | 14.80 | |
| Dieptegeleider | ||||
| 23 | 341511630 | 4.51 | 5.46 | |
| 2-piece Pistol Grip, with Rubber | ||||
| 24 | 343398530 | 10.38 | 12.56 | |
| Bush | ||||
| 26 | 341005970 | 2.28 | 2.76 | |
| Schakelvork | ||||
| 27 | 339133070 | 2.28 | 2.76 | |
| Retaining ring | ||||
| 28 | 141156590 | 1.56 | 1.89 | |
| Vormpakking | ||||
| 30 | 344097930 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 31 | 344095920 | 1.56 | 1.89 | |
| Spindle | ||||
| 32 | 341604340 | 26.95 | 32.61 | |
| Kogellager 15x32x 9 | ||||
| 33 | 143115790 | 3.71 | 4.49 | |
| Slotted disc | ||||
| 34 | 341055650 | 3.71 | 4.49 | |
| Retaining ring | ||||
| 35 | 141181680 | 1.56 | 1.89 | |
| Circlip | ||||
| 36 | 141156600 | 1.56 | 1.89 | |
| Sliding gear | ||||
| 37 | 340004010 | 8.89 | 10.76 | |
| Guide pin | ||||
| 38 | 341540010 | 4.51 | 5.46 | |
| Schakelknop compl. | ||||
| 39 | 316041960 | 2.28 | 2.76 | |
| Half-moon washer | ||||
| 40 | 141155810 | 1.56 | 1.89 | |
| Schakelhuis compl. | ||||
| 41 | 316041940 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 42 | 141123610 | 1.56 | 1.89 | |
| Cilinderstift | ||||
| 43 | 341520230 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 44 | 341701940 | 1.68 | 2.03 | |
| Leistungsschild | ||||
| 45 | 338057330 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 46 | 316051540 | 107.70 | 130.32 | |
| Tandwielflens compl. | ||||
| 47 | 316042800 | 32.27 | 39.05 | |
| Gearshaft with safety coupling | ||||
| 48 | 316042810 | 48.48 | 58.66 | |
| Afstandshuls | ||||
| 50 | 341005960 | 3.71 | 4.49 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Tube of grease 50 gr. SF 126 | ||||
| 882 | 344130800 | 18.80 | 22.75 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 884 | 344130560 | 32.27 | 39.05 | |
| Grease tube 50 gr. 1,8oz | ||||
| 886 | 344131030 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338505120 | |||
